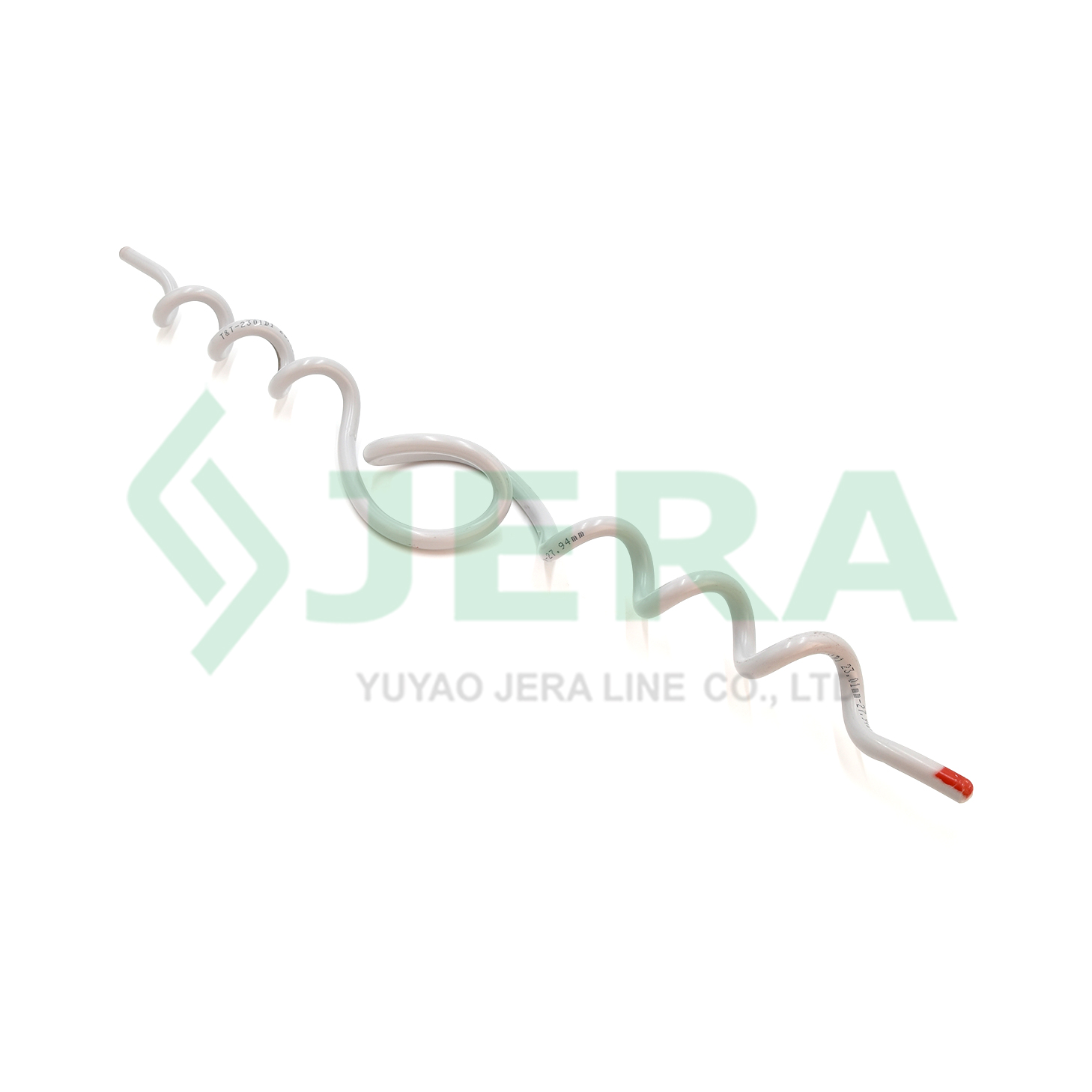

PVC plastic single line tie is designed to be used to with covered conductors, also to use with vertically-mounted tie top insulators on cross-arms or pole-top-mounted insulators.
The PVC single top ties Line angles of up to 15°can be accommodated when used with any plastic covered conductor.
Technical specification
Product code
Cable diameter, mm
Insulator neck diameter, mm
Length, mm
Color code
TT-73-23/28
23-28
73
710+-20
Red
Components and materials
Insulator preformed plastic top tie is made of high elastic PVC material provides better protection for the continuous vibration in any hostile weather conditions. The insulator side tie covers the center of the winding upper cable tie. This provides excellent holding power and electrical performance, and has the best insulation characteristics for the applied part.
Components
Material
Body
Semi-conductive PVC

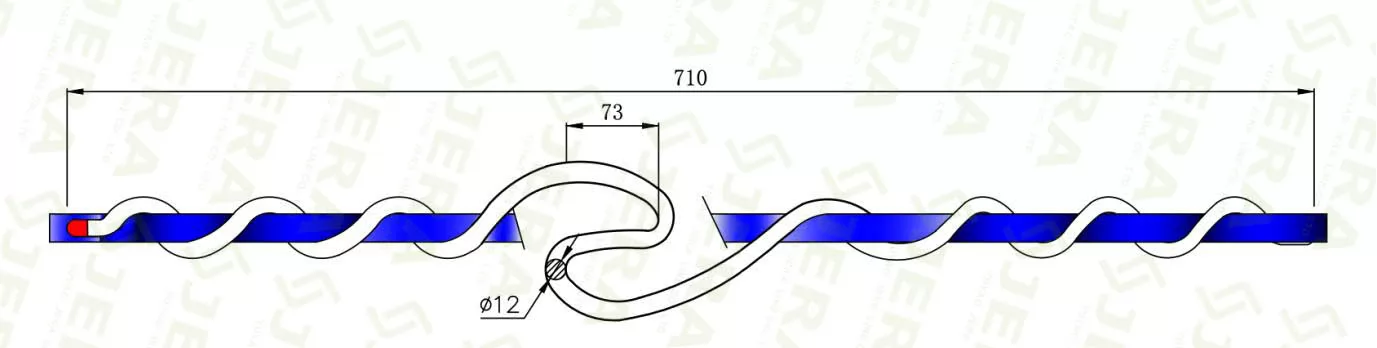

Dimensions
Test
Jera calculate the shape of the plastic side tie to minimize failure and retain the maximum rated strength. In addition, our company has different models of PVC single line ties can be chosen, to meet your different requirement of conductors.
We can adjust the PVC single side toptie of the insulator according to your cable specifications, the diameter of the neck of the insulator and the distance between the two poles. In order to meet the needs of customers, we have tested and verified the entire prefabricated line products in our factory in-house laboratory.
