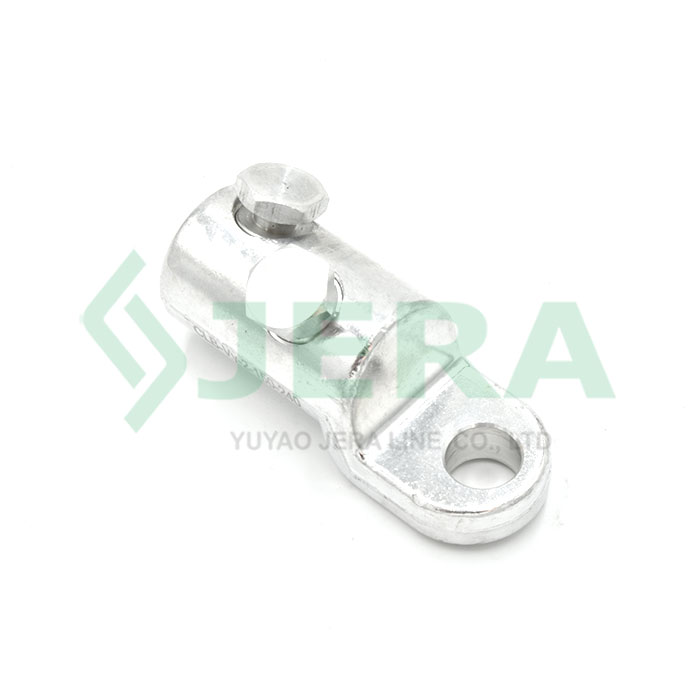

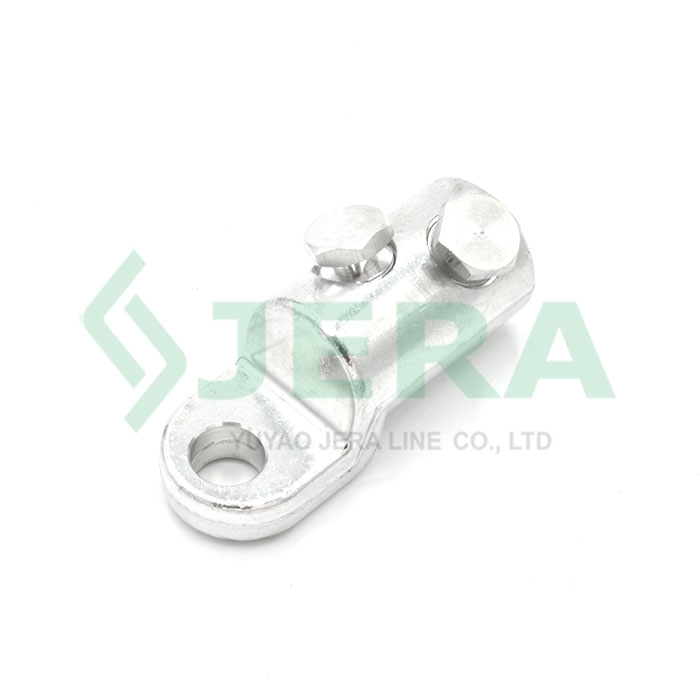

Mechanical Shearhead Electrical LugCLB-Vy-2-150-240, also called mechanical bolt lug, is a metal device used for connection cables to electrical appliances below voltage 1KV. It’s suitable for both aluminum electrical cable during power line constructions.
Main Applications:
• Electrical Transmission and Distribution Systems: Substation Equipment: Connects cables or busbars to equipment like Mounted electrical conductors to the system.
• Transformers, circuit breakers, or switchgear.
Grounding Systems: Connects ground wires to grounding rods or other components.
Technical specification
Product code
Cable size, mm2
Bolt number
Application cable
CLB-Vy-2-150-240
150-240
2
Aluminum
Components and Materials
Mechanical Aluminumterminal Lug, CLB-Vy-2-150-240is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, Shear-off-head bolts lugs and electrical cables jointing process does not require the professional tool with exact size. All required tension force is achieved by tighten the bolt and shearing off the head of bolt by hex key.
The mechanical shearhead lugconsists of the following main part:
Components
Materials
Body
Aluminum alloy
Shear off torque bolts
Aluminum alloy

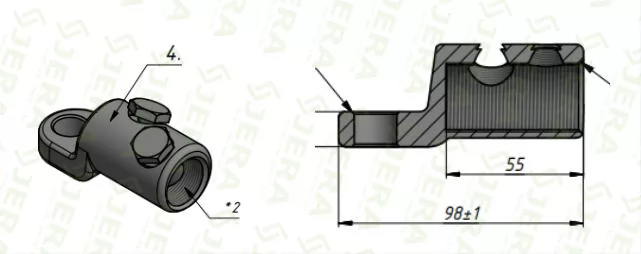

Dimensions
Test
Aluminum Shearbolt Conductor Lug, CLB-Vy-2-150-240comply with international standard IEC 61238-1-3:2018.
The test including Electrical and Mechanical testing and mechanical strength test, Jera Line operates its own factory laboratory for routine tensile strength testing using a tensile strength machine.
