What's anchoring clamp PA-1500 RPI

In modern overhead power distribution networks, reliable cable anchoring solutions are essential to ensure safety, stability, and long-term performance.One commonly used component in medium and low voltage aerial bundled cable (ABC) systems is the anchoring clamp PA-1500 RPI. This article explains what the PA-1500 RPI anchoring clamp is, its features, applications,why it is widely used in overhead line installations and the similar products in the market.

What is the PA-1500 RPI Anchoring Clamp?

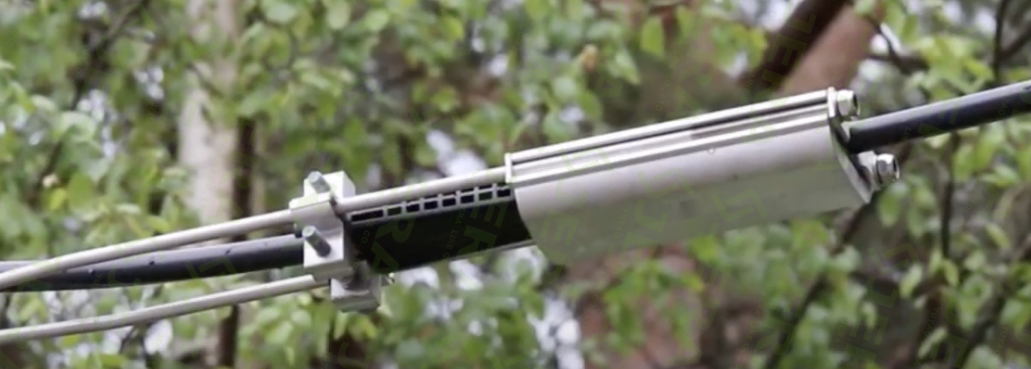

The PA-1500 RPI anchoring clamp is a mechanical device designed to anchor and tension insulated overhead cables, particularly ABC (Aerial Bundled Cable) systems. It is typically installed at the end of a cable span or at angle points where the cable needs to be securely fixed.

The clamp holds the cable firmly without damaging the insulation, ensuring the conductor remains stable even under mechanical tension caused by wind, temperature changes, or cable weight.This type of clamp is widely used in medium voltage distribution networks, especially for utility poles and building connections.It demonstrates features such as high Mechanical strength,Insulation protection,weather-resistant materials,easy installation,reliable cable grip to prevent slipping while maintaining the integrity of the conductor insulation.

The overhead PA-1500 RPI anchoring clamp is commonly used in:

• Low voltage ABC cable networks
• Medium voltage overhead distribution lines
• Pole-to-pole cable anchoring
• Dead-end cable installations
• Building power supply connections

These clamps are often installed together with brackets, hooks, and suspension hardware to complete overhead cable systems.

Similar or Alternative Products

In the overhead line hardware market, several manufacturers produce clamps similar to the PA-1500 RPI,these products perform the same function of securing insulated cables in aerial installations while maintaining electrical insulation.

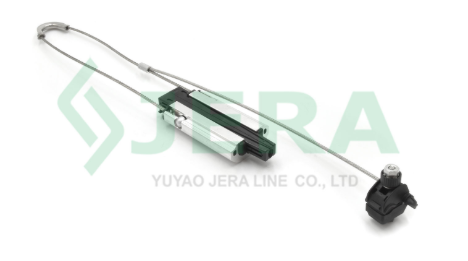

MV Tension clamp Assembly With IPC PA-2300 which produced by Jera Line is one of the most common alternatives.It has a similar structure but supports larger conductor cross-sections (35–50 mm²) and provides a higher mechanical strength of around 15 kN, making it suitable for heavier loads or longer spans.

Specification&Model

Features

• Easy and quick to install without the need for specialized tools.
• Equipped with insulation piercing connector to eliminate short circuit
• High mechanical strength 15KN
• Tension clamp reduce the electrical stress
• Excellent environment stability
• Location in China

Application

The MV anchoring dead end ABC clamp assembly combined with IPC PA-2300, to be used with insulation piercing connector ZOP-45, is designed for use in medium-voltage overhead line networks.It provides secure mechanical and electrical connections between conductors while ensuring reliable long term performance in utility distribution systems.

Typical Applications:

• Medium-Voltage Overhead Line Construction
• Connection with Insulation Piercing Connector (IPC ZOP-45)
• Utility Distribution Networks
• Street Lighting and Service Drops

Why choose Jera Line as your Aluminum Service Drop MV ABC Anchor Clamp supplier?

Jera Line has become a trusted manufacturer for utilities, contractors, and distributors worldwide thanks to its strong production capabilities, strict quality control, and complete overhead cable solutions.

• As a direct factory from China, Jera Line controls the entire production process from raw materials to finished products. This factory-direct model eliminates middlemen, allowing customers to obtain high-quality MV ABC anchor clamps at more competitive prices.
• Strong R&D and OEM/ODM Capabilities,Jera Line offers OEM and ODM services, enabling customers to customize products according to specific project requirements. The company’s engineering team can develop new designs, provide customized markings, and adjust specifications to meet local standards and utility requirements
• Over 5000㎡ facility with a professional work team which includes moulding workshop, injection workshop, CNC metals workshop, press forming workshop, assembly workshop to ensure the production proceeds smoothly.
• Global trade experience: Jera Line has extensive global trade experience, has established business relationship with more than 30 countries,and received good feedback from customers on quality.With years of export experience, we understand international standards and meet the customer’s demands very well.

Conclusion

For businesses seeking a stable, professional, and cost-efficient supplier of aluminum dead end MV cable anchor clamps, Jera Line is more than just a vendor—it is a reliable long-term partner dedicated to powering your projects with quality you can trust.

If you are interested in our products or need more information, please feel free to contact us for further inquiries.
