Cable lugs Central Palm CLB-P-Vz-36-2-120-300

central palm shear bolt lug, MV cable termination lug up to 36KV, 120-300mm2

Features

Mechanical Shear-Bolt Technology, fast installation
High-Tensile Aluminium Alloy Construction
Wide Conductor Compatibility (120–300 mm²)
Optimized Grooved Barrel
Strong Mechanical Performance
Direct factory in China

DESCRIPTION

TEST

REVIEW

Application

The Cable Lugs Central Palm CLB-P-Vz-36-2-120-300 are designed for reliable electrical terminations in low- and medium-voltage power distribution networks up to 36 kV. Their mechanical shear-bolt design allows easy installation without specialized crimping tools, ensuring secure and consistent electrical connections across a wide range of conductor sizes (120–300 mm²).

Typical Applications:

• LV/MV cable terminations in switchgear, distribution cabinets, and transformer connections

• Overhead and underground utility network installations

• Industrial infrastructure, substations, and commercial electrical projects

• Busbar and equipment connection points requiring high mechanical and electrical performance

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CLB-P-Vz-36-2-120-300	120-300	2	Copper/Aluminum

Components and Materials

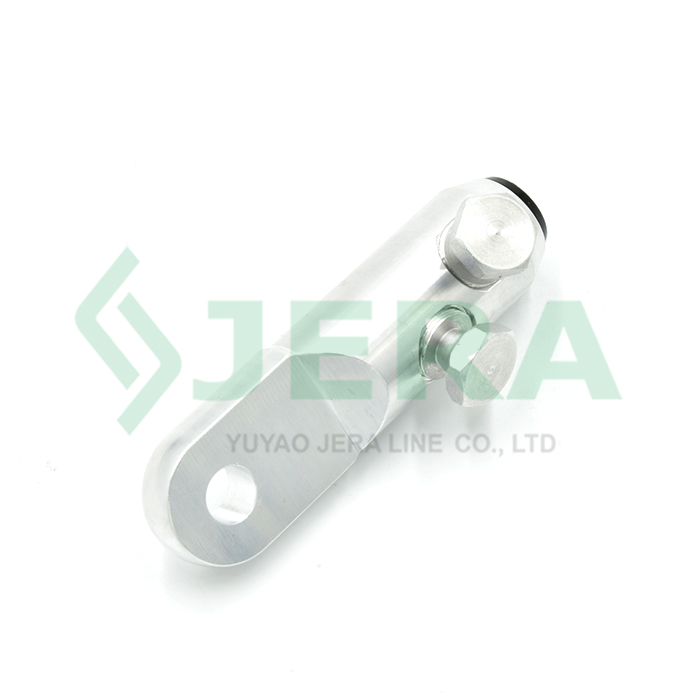

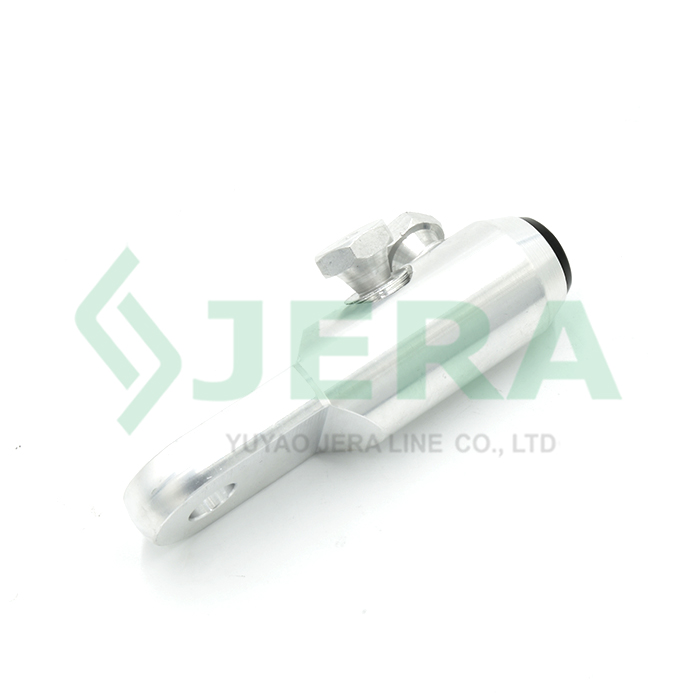

The MV tin-plated aluminium cable central palm lug CLB-P-Vz-36-2-120-300 is manufactured in China by Jera Line, a trusted producer of low- and medium-voltage mechanical bolted cable connectors and lugs.

The central palm structure provides balanced force distribution, making these lugs suitable for various installation environments, including compact switchgear and symmetrical connection layouts. The grooved internal barrel enhances electrical contact and mechanical grip, ensuring long-term stability under electrical and mechanical loading.

The concentric palm lug consists of the following main part:

Components	Materials
Body	Tin Covered Aluminum Alloy
Shear off torque bolts	Aluminum

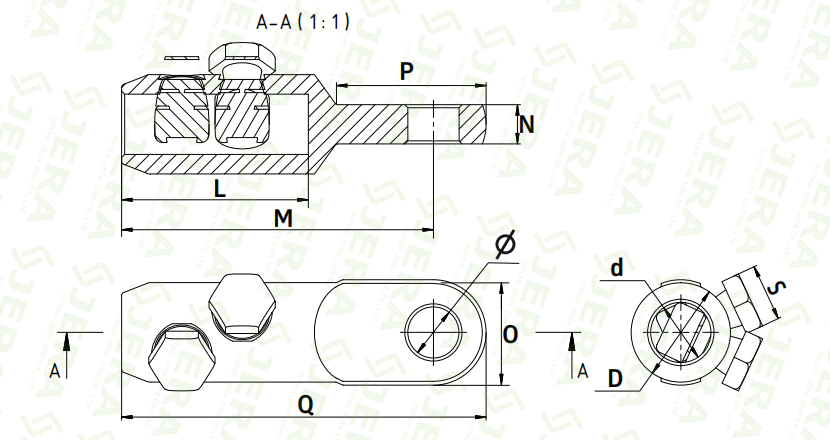

Dimensions

Test

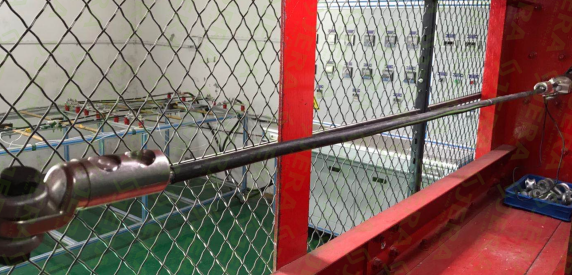

The Cable lugs Central Palm CLB-P-Vz-36-2-120-300 has undergo rigorous mechanical and electrical testing in the Jera Line factory laboratory to ensure long-term reliability and compliance with international standards. All tests are performed according to IEC 61238-1-3:2018, the standard governing mechanical cable connectors and lugs used in LV/MV power distribution systems.

The tests including:

• Tensile Strength Test

• Corrosion Resistance Check

• Dimensional and Visual Inspection

• Shearhead function test.

These comprehensive tests confirm that the shear-head bolted lug CLB-P-Vz-36-2-120-300 provides dependable mechanical strength, electrical performance, and long-term durability in demanding LV/MV power networks.
