Deadbreak Sicon Shear Bolt Lugs CLB-P-VzT-36-2.S(H)-70-240

Stepless shear-off bolt lug, Concentric palm mechanical shear bolt lugs, brass bolts, 70-240mm2 AL and CU cables, 36KV

Features

SICON Bolt Prevents Installation Errors
Simple Installation with Standard Tools
Wide conductor application range 70-240mm2 AL/CU cables
Corrosion-Resistant Construction, tin plated material
IEC-61238 tested cable lug
Strong Mechanical Performance
Chinese factory with competitive price

DESCRIPTION

TEST

REVIEW

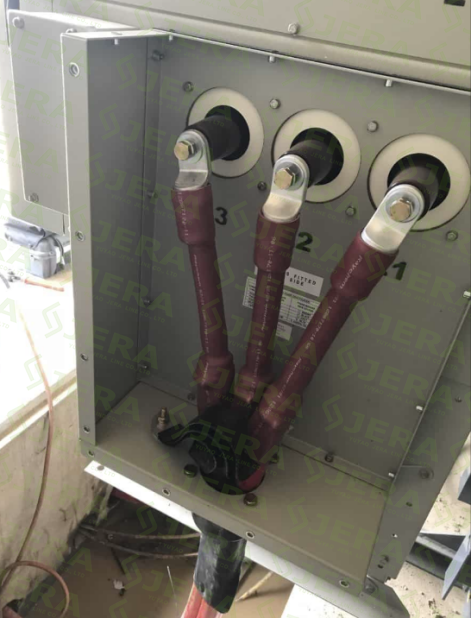

Application

The CLB‑P‑VzT‑36‑2.S(H)-70‑240 sicon Shear Bolt mechanical Lug from Jera Line factory is engineered for medium‑voltage (MV) power distribution networks, providing a secure, low‑resistance, and long‑lasting electrical connection for 70–240 mm² aluminum and copper conductors.

Designed with stepless shear‑head bolt technology, this lug ensures consistent compression, simplified installation, and reliable performance inside deadbreak elbow and termination systems.

Key application areas:

• Medium‑voltage distribution networks

• Deadbreak elbow terminations

• Substations and switchgear

• Renewable energy systems (solar, wind)

• Industrial electrical installations

• Underground and overhead MV cable systems

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CLB‑P‑VzT‑36‑2.S(H)-70‑240	70-240	2	Copper/Aluminum

Components and Materials

The Concentric palm Stepless shear‑head cable lug CLB‑P‑VzT‑36‑2.S(H)-70‑240 is manufactured in China by Jera Line, a global manufacturer specializing in mechanical cable connectors, shear bolt lugs, and MV cable accessories. Our products are developed, tested, and manufactured under strict quality systems to meet international standards and customer‑specific requirements.

The stepless shear bolts lug consists of the following main part:

Components	Materials
Body	Tin Covered Aluminum Alloy
Stepless shear bolts	Brass

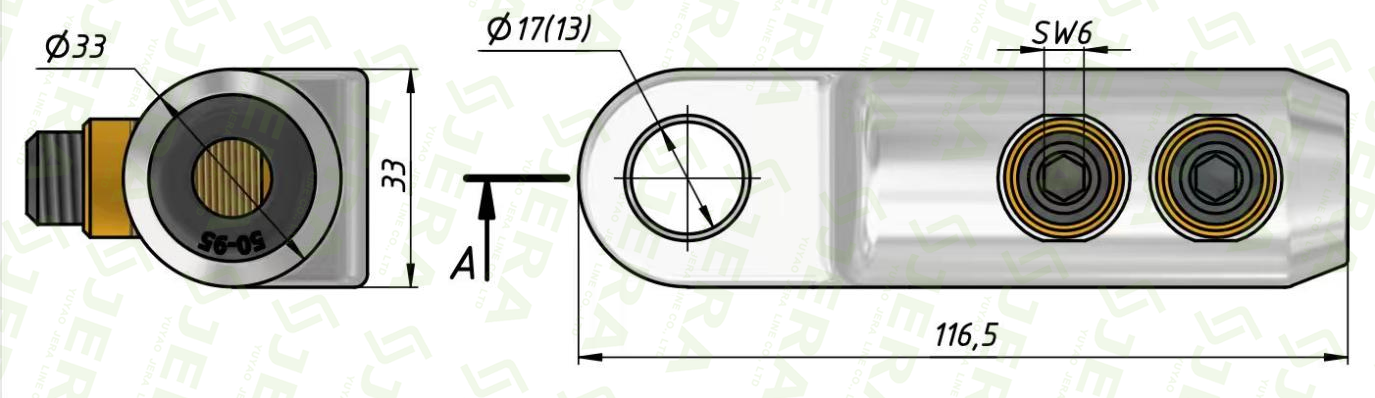

Dimensions

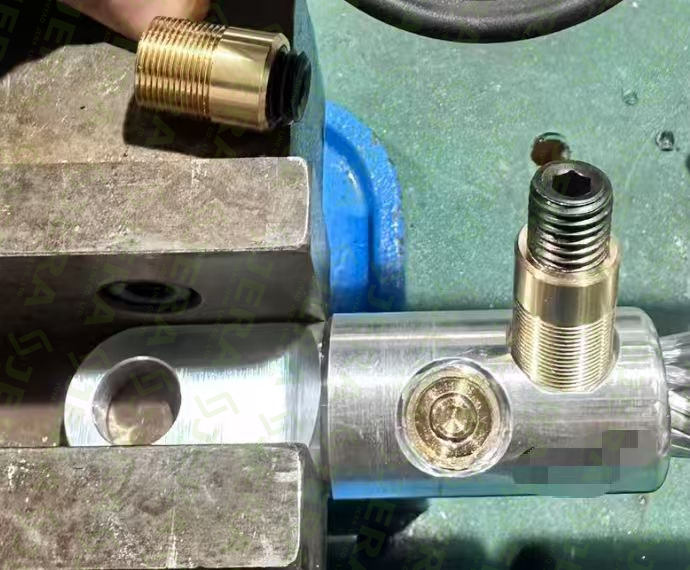

Test

The CLB‑P‑VzT‑36‑2.S(H)-70‑240 Deadbreak stepless shear bolt lugs undergoes comprehensive electrical and mechanical testing in Jera Line factory laboratory to ensure compliance with IEC 61238‑1, the international standard for mechanical cable connectors used in medium‑voltage power distribution networks.

The testing is enhanced safety and reliability in MV power distribution networks, proven mechanical strength for conductor sizes ranging from 70-240 mm², and Confidence in long-term performance for transformers, switchgear, busbars, and utility installations.
