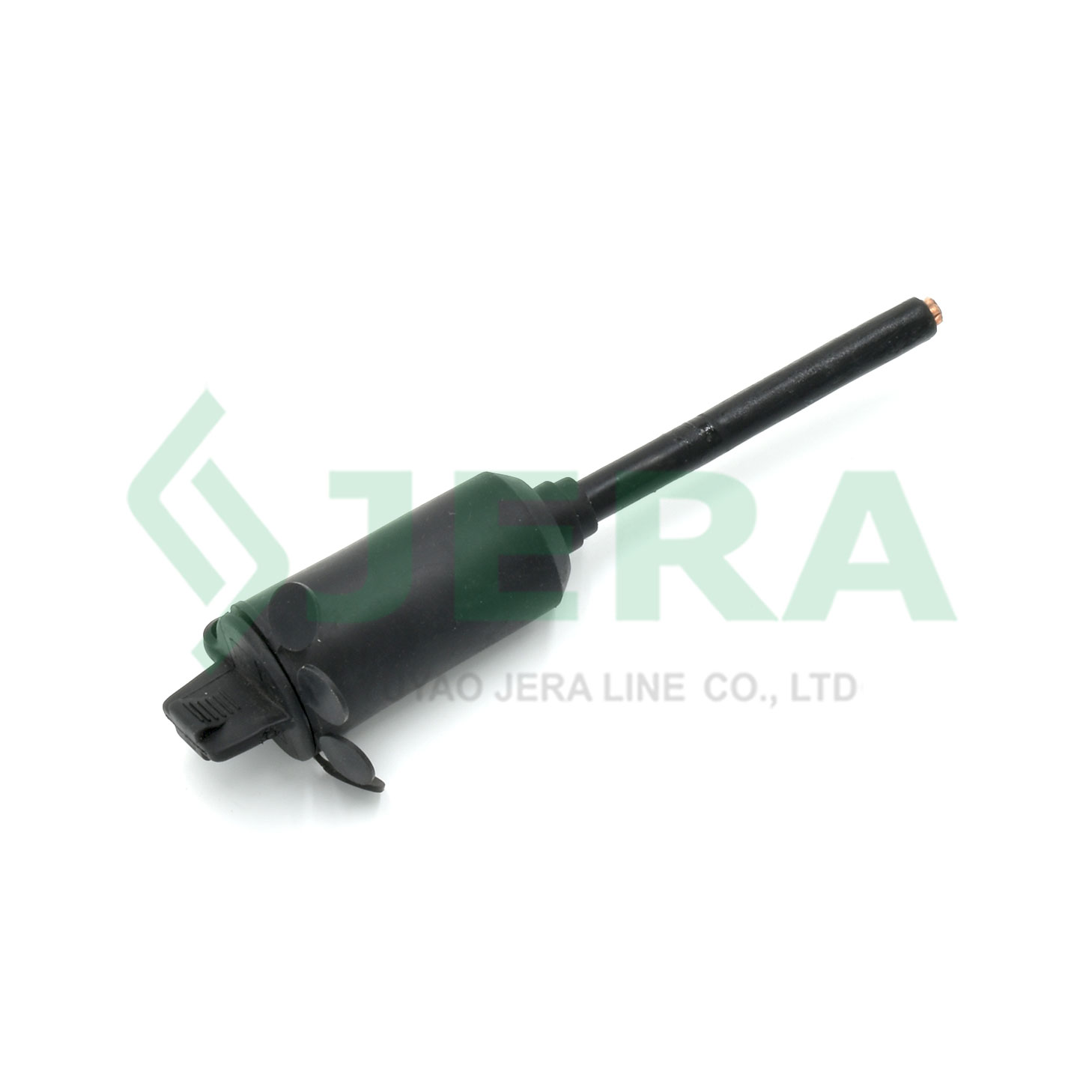

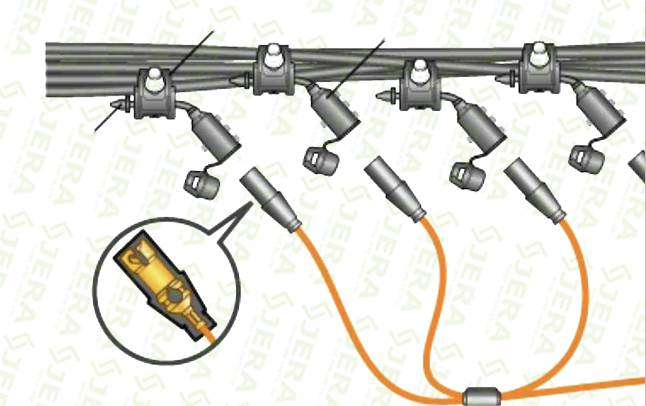

Insulated adapter PMCC also called PMCC earthing adapter, is primarily used for short-circuit or earthing operations in low-voltage aerial bundled cable (ABC) networks, and can also be used for voltage measurement.

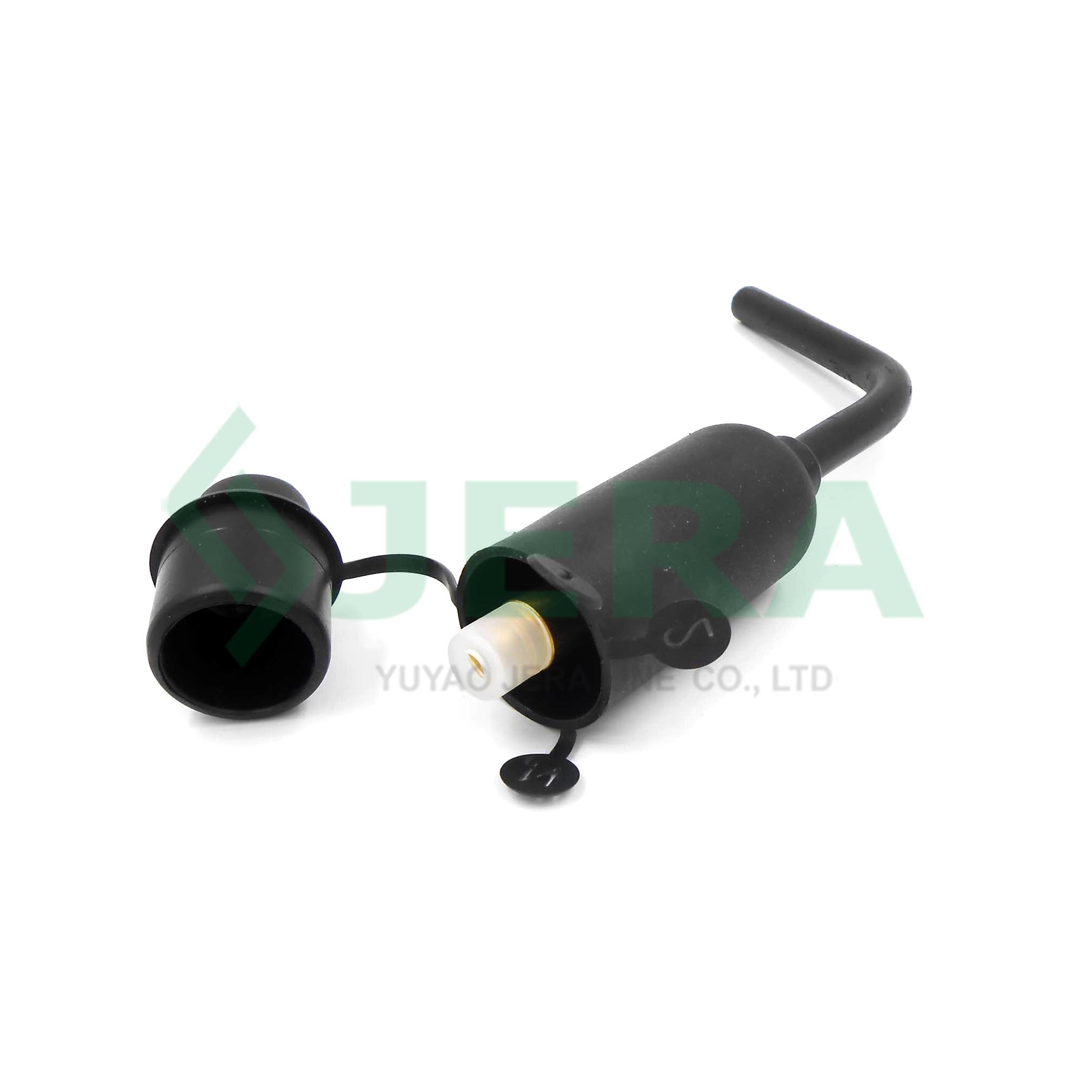

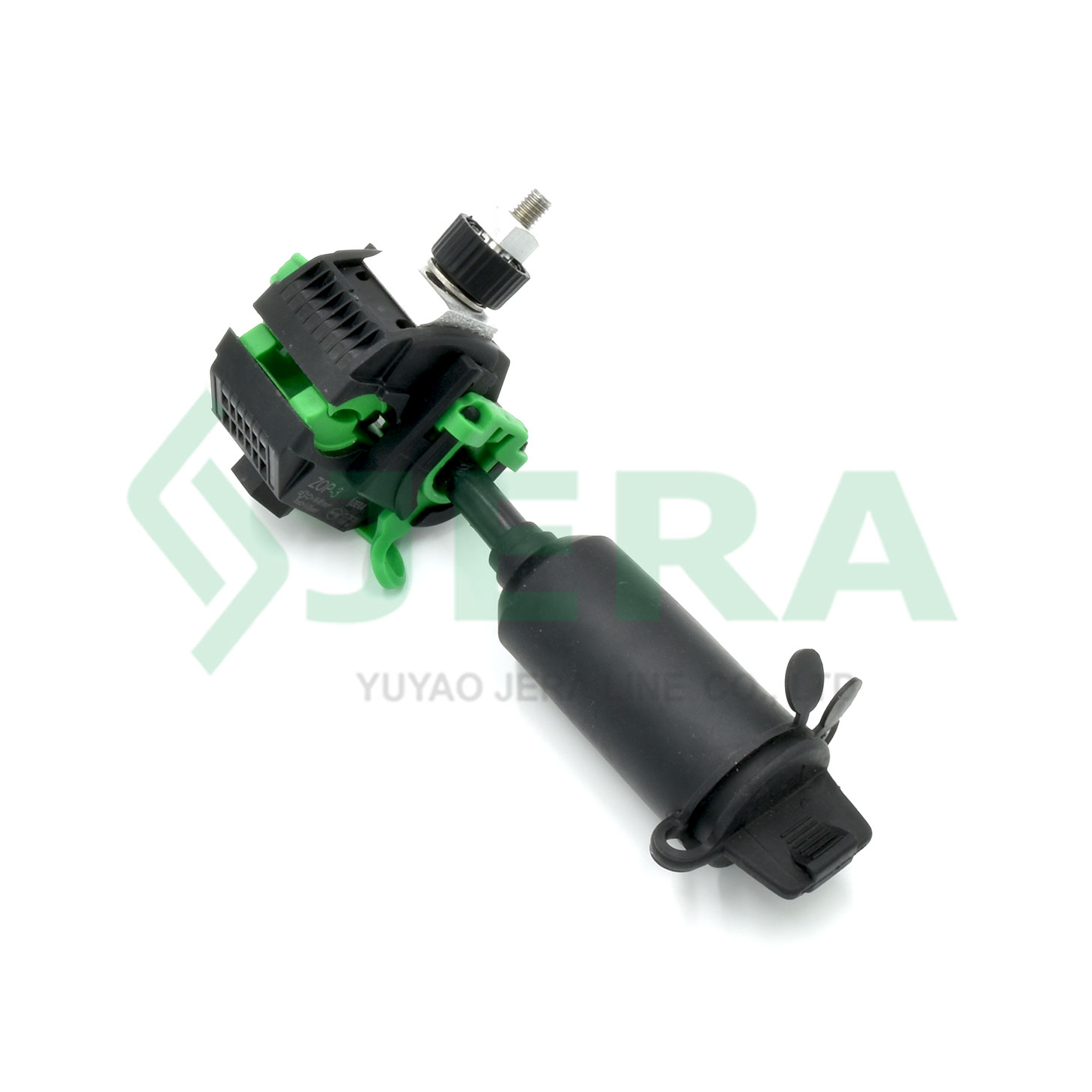

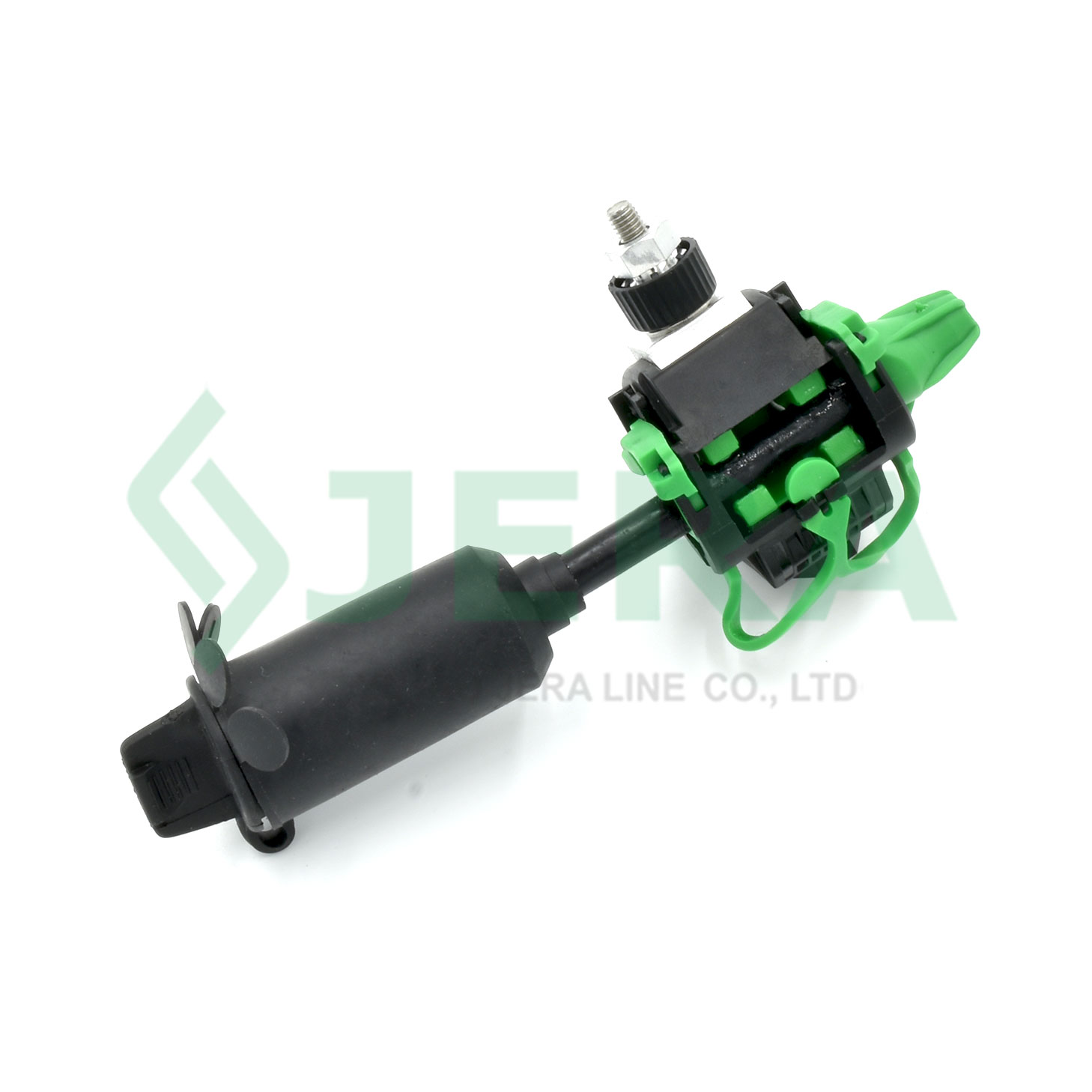

TheseLV earthing adapters are installed on the tap-off side of an insulation piercing connector. The insulating cover is removed for access to the inside brass stud fitted with a bayonet lock . a hole drilled into the stud provides a reliable point of contact for voltage testing. The connection to earth is done by an insulated earthing equipment.
Technical specification
Product code
Conductor size, mm2
Stud dimension length mm
Short circuit currents up to
Failure Load(kN)
PMCC
25
35
4kA/s
1.2
Components and materials
PMCC Grounding Adapteris manufactured by Jera Line, a direct factory location in China, is specialized in power system accessories for over ten years.
Components
Materials
Outer Shell
UV-resistant Polymer
Contact stud
Brass

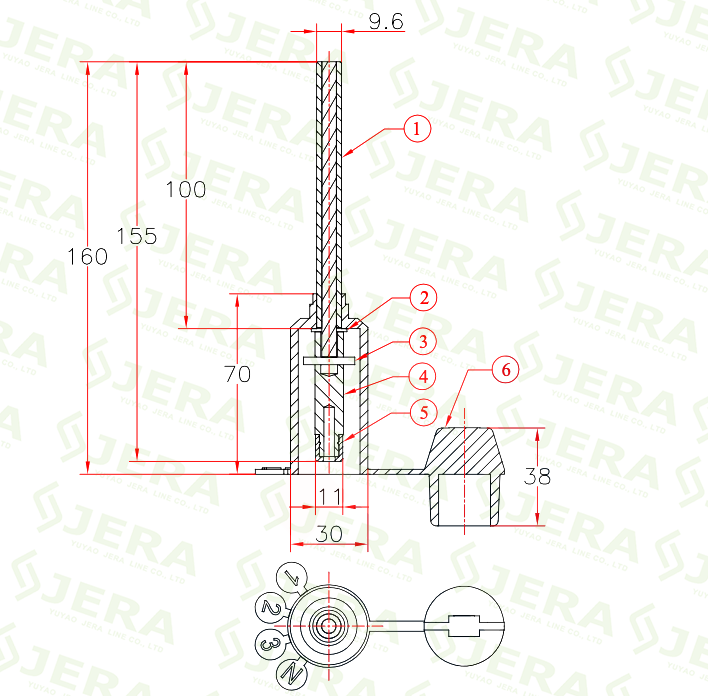

Dimensions:
Test

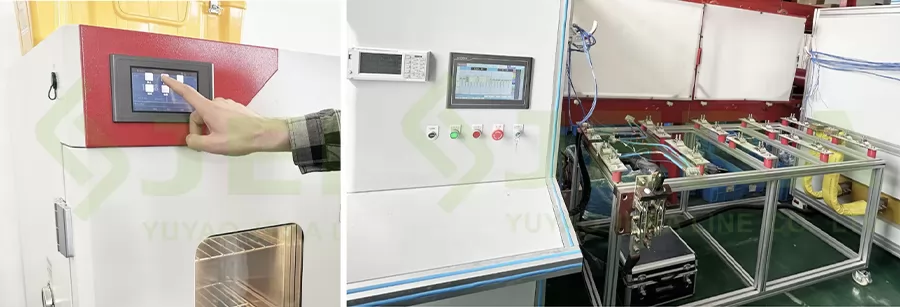

Jera Line established its own in-house laboratory to test PMCC earthing adapter,
It involves:
Short-Circuit Overcurrent Test: It tests whether the equipment can withstand instantaneous high temperatures and electrodynamic force impacts under short-circuit overcurrent conditions without suffering physical damage, such as insulation breakdown, casing rupture, or component melting.
Temperature & Humidity Aging Test: It simulates the aging process of products over time under varying temperature and humidity conditions. The tests include material performance, electrical performance, and overall product performance.
