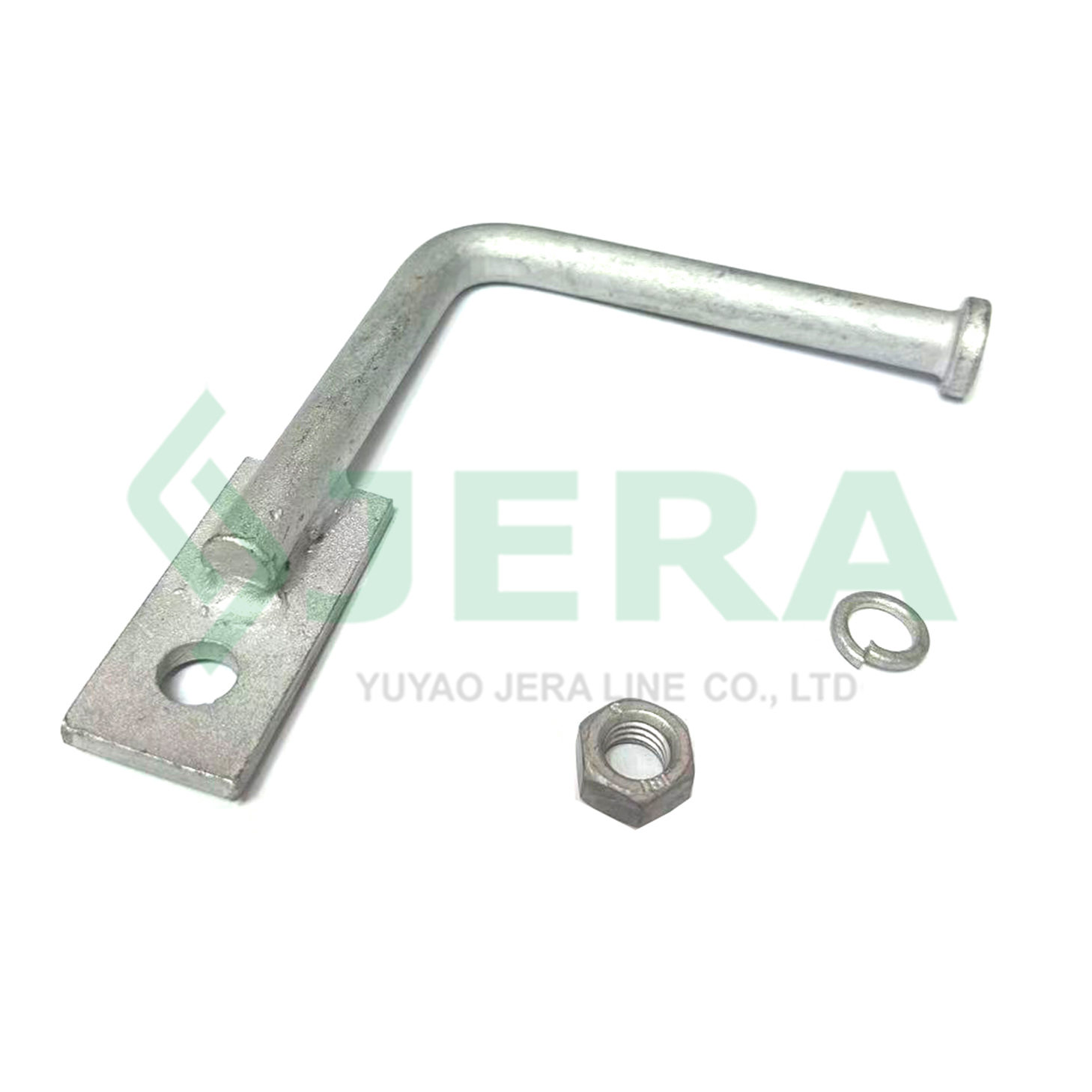

The ground bracket is a high‑quality, reliable solution designed for creating a temporary earthing point on medium‑voltage (MV) overhead line systems. Engineered for safety and durability, it is used together with Jera Line tension clamps PA-2550 and PA-2560, ensuring secure grounding during installation, maintenance, and repair operations.
Technical specification
Product code
Tightening torque Nm
Bolt
Dimensions,mm
Grounding bracket
40
M10
28(H)*105(W)*115(L)
Components and materials
Jera Line is a direct MV tensionclamp factory, who specially focused on providing overhead cable solutions.

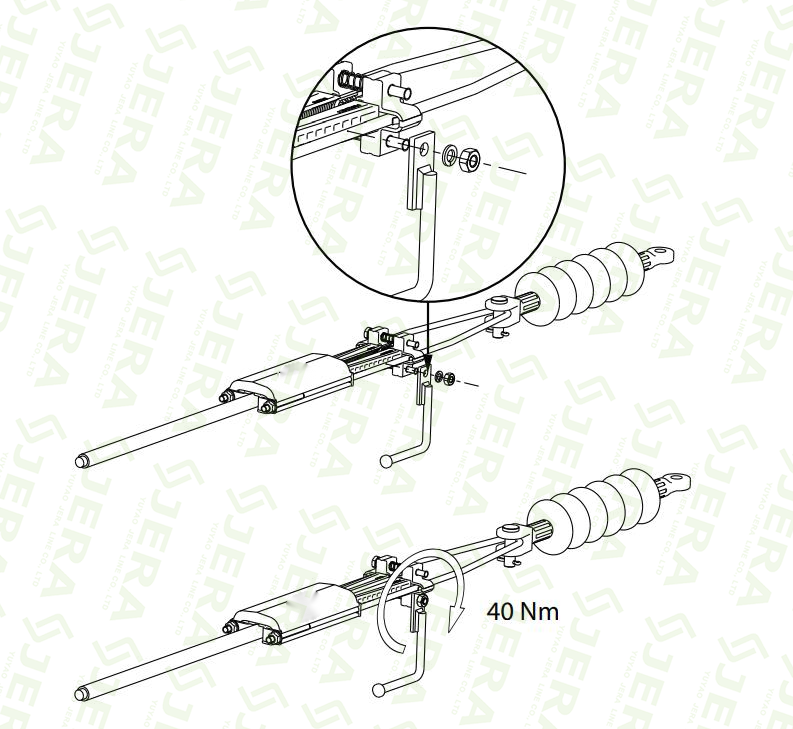

The grounding bracket for earthing is manufactured from robust steel and used with MVtension clamp 95-150mm2, its compact, lightweight design allows for fast, straightforward installation directly onto the horn, it consists of following main parts:
Components
Materials
Body
Steel
Dimensions:
Test
Jera Line produce grounding bracket suspension fitting under EN 50397‑2 standards, it offers dependable performance for MV distribution networks, enhancing worker safety and ensuring proper grounding in all field conditions.
Jera Line also operates an in‑house laboratory equipped for environmental performance testing as well as mechanical properties and performance validation.
