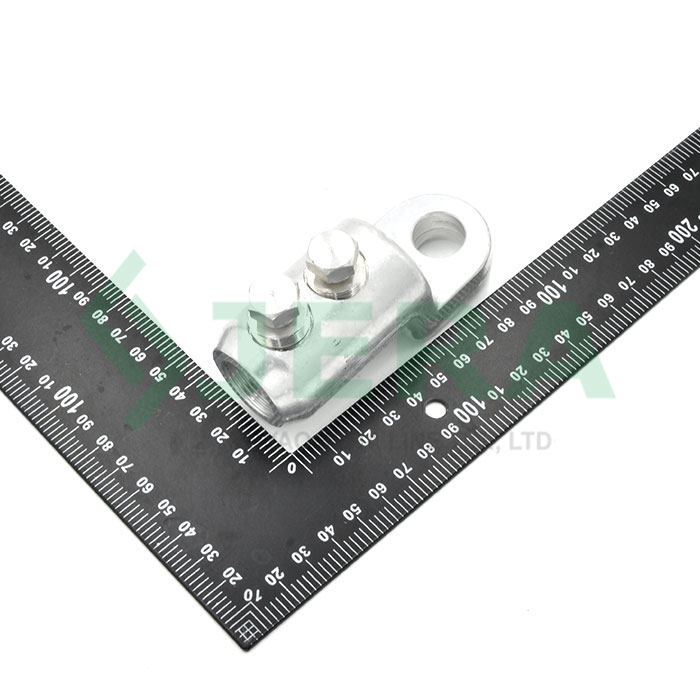

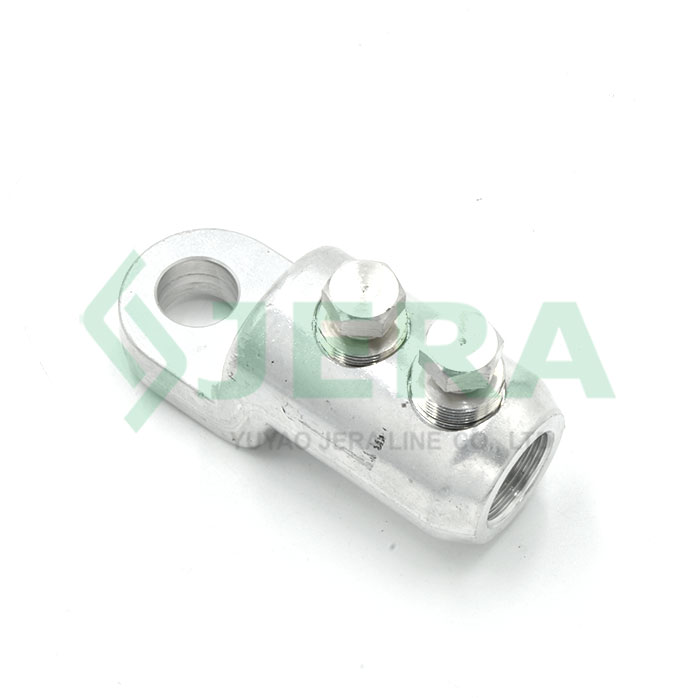

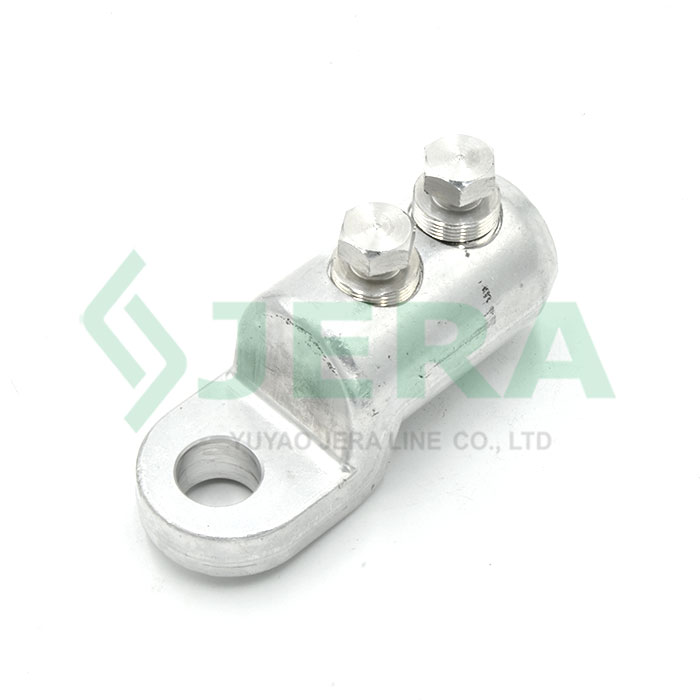

Head fasten Mechanical Connector Lug, СLB-I-20-2-150-240

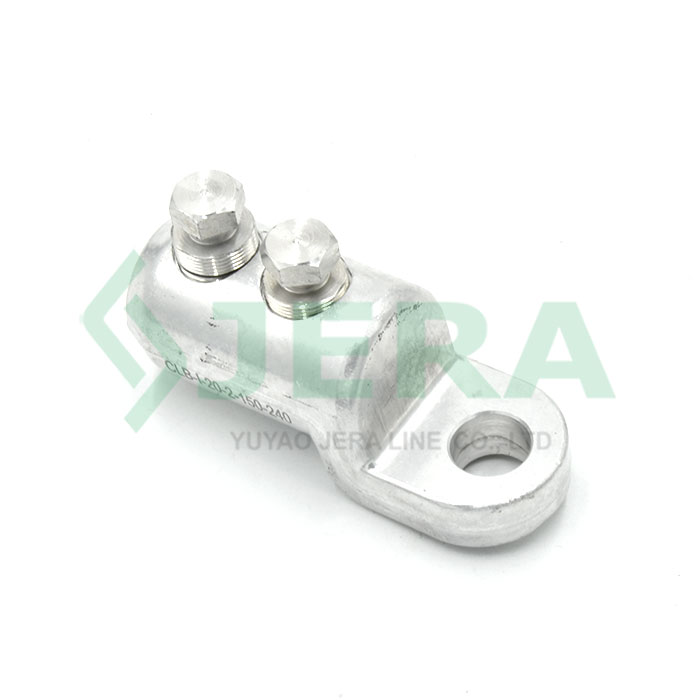

Mechanical Shearhead Terminal Lug, 2 bolts screw type cable lug, 150-240 mm2 Aluminum cable usage, 36KV medium voltage, IEC-61238-1-3 type test

Features

Simple and quick installation process with a hex key.

Durable aluminum material

Wide Application Range for 150-240mm2 cables

Consistent Mechanical Strength

Manufactured according to standard lEC-61238-1-3

Competitive price due to the factory location in China

DESCRIPTION

TEST

REVIEW

Application

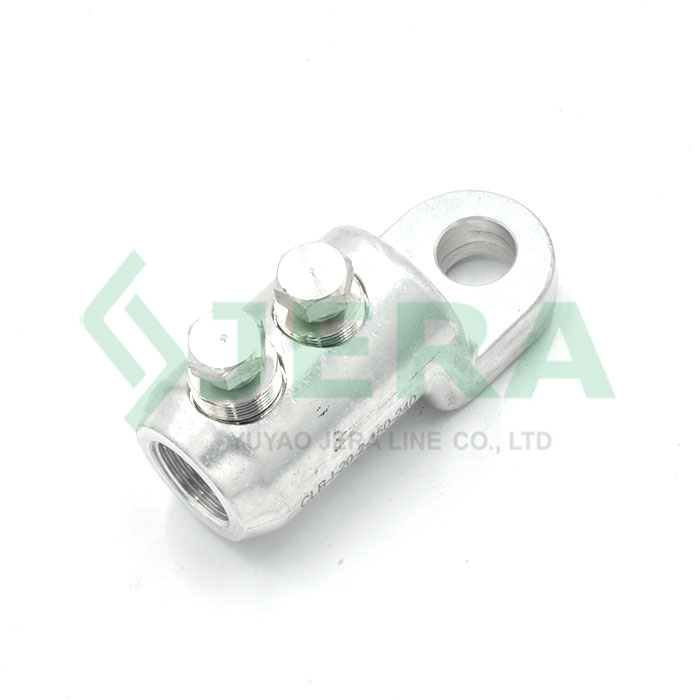

Mechanical Shearhead Electrical cable Lug СLB-I-20-2-150-240, also called mechanical termination bolted lug, is designed for terminate the cable to the transformers, or other devices up to 36KV.

Main Applications:

• Utility networks-power distribution lines and grid infrastructure

• Transformer Connections: Provides a secure and reliable connection between large cables and transformers.

• Renewable energy systems - compatible with solar inverters, combiner boxes, and battery energy storage

• units Industrial power installations -ideal for factory and plant electrical systems

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
СLB-I-20-2-150-240	150-240	2	Aluminum

Components and Materials

Mechanical terminal Lug, СLB-I-20-2-150-240 is produced by Jera Line,a direct factory based in China -, the MV bolted cable lugs are under Research and Design RnD by Jera Line, the installation method is by shearing off the head of bolt by hex key, which tighten the bolt.

The MV mechanical terminal cable lug consists of the following main part:

Components	Materials
Body	Aluminum alloy
Shear off torque bolts	Aluminum alloy

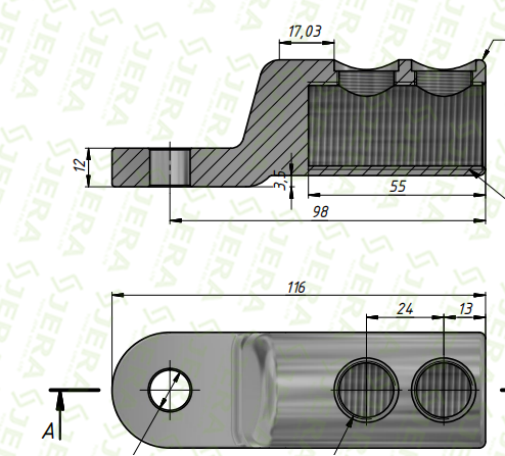

Dimensions

Test

Aluminum Shearbolt Conductor Lug,СLB-I-20-2-150-240 has undergone rigorous Electrical and Mechanical testing under the mechanical testing standard IEC 61238-1-3:2018, conducted by an independent third-party laboratory.

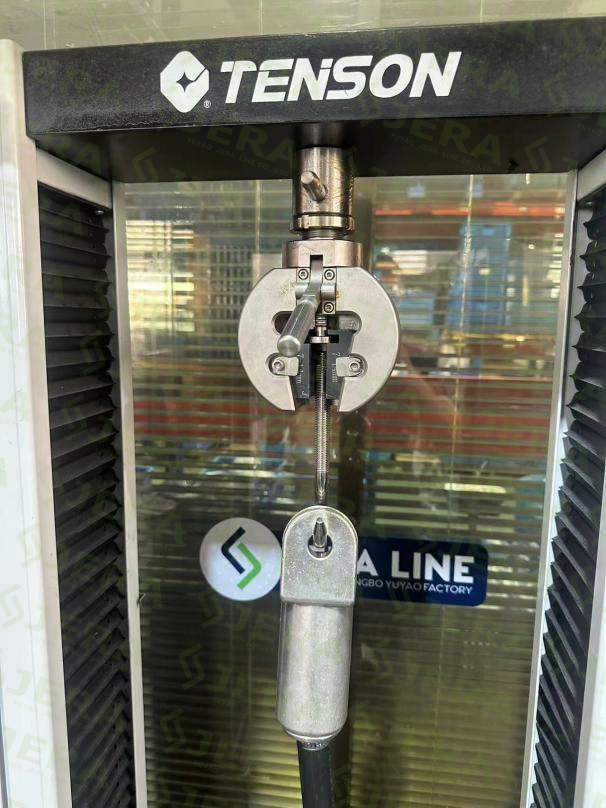

Jera Line also operates its own factory laboratory for routine tensile strength testing using a tensile strength machine.
