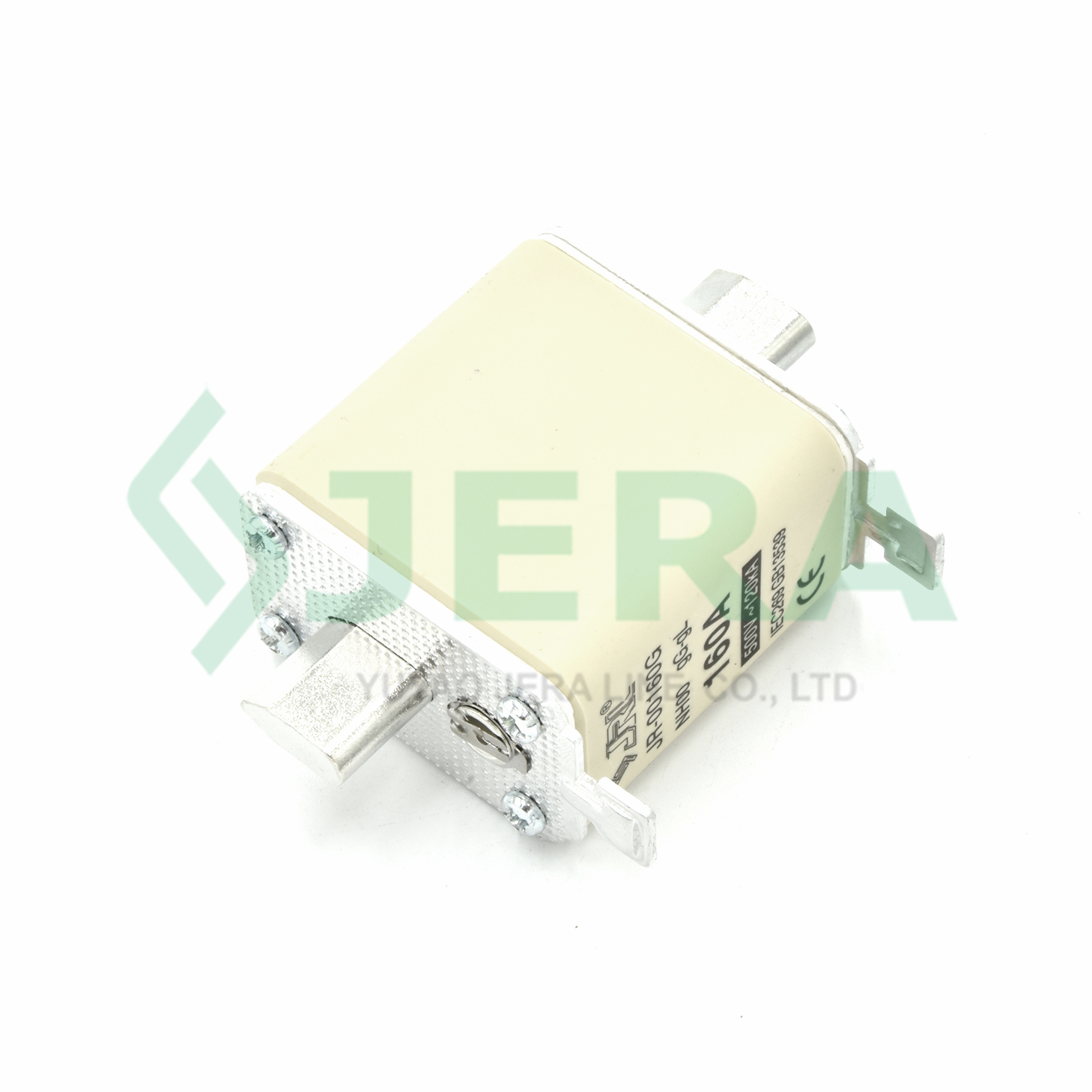

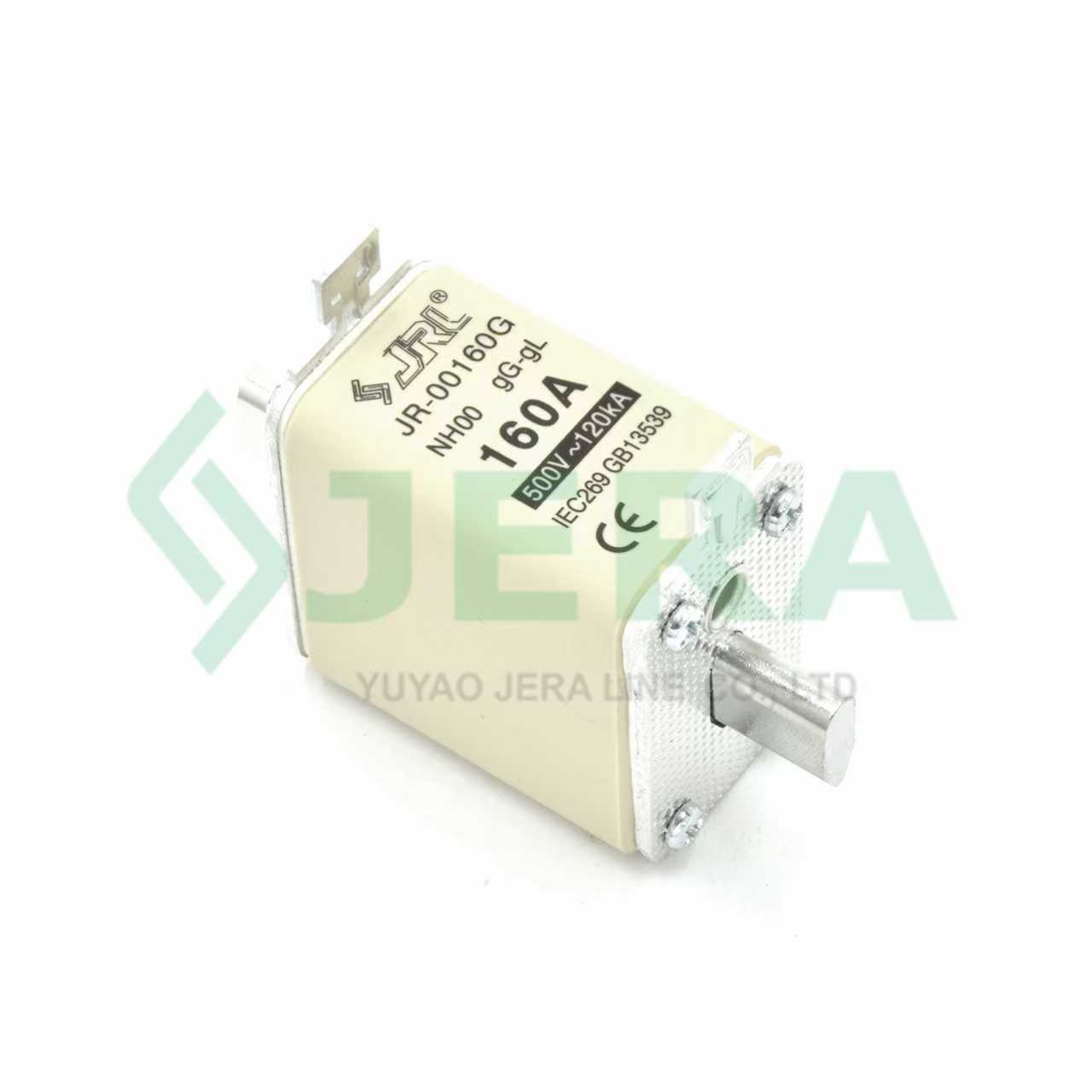

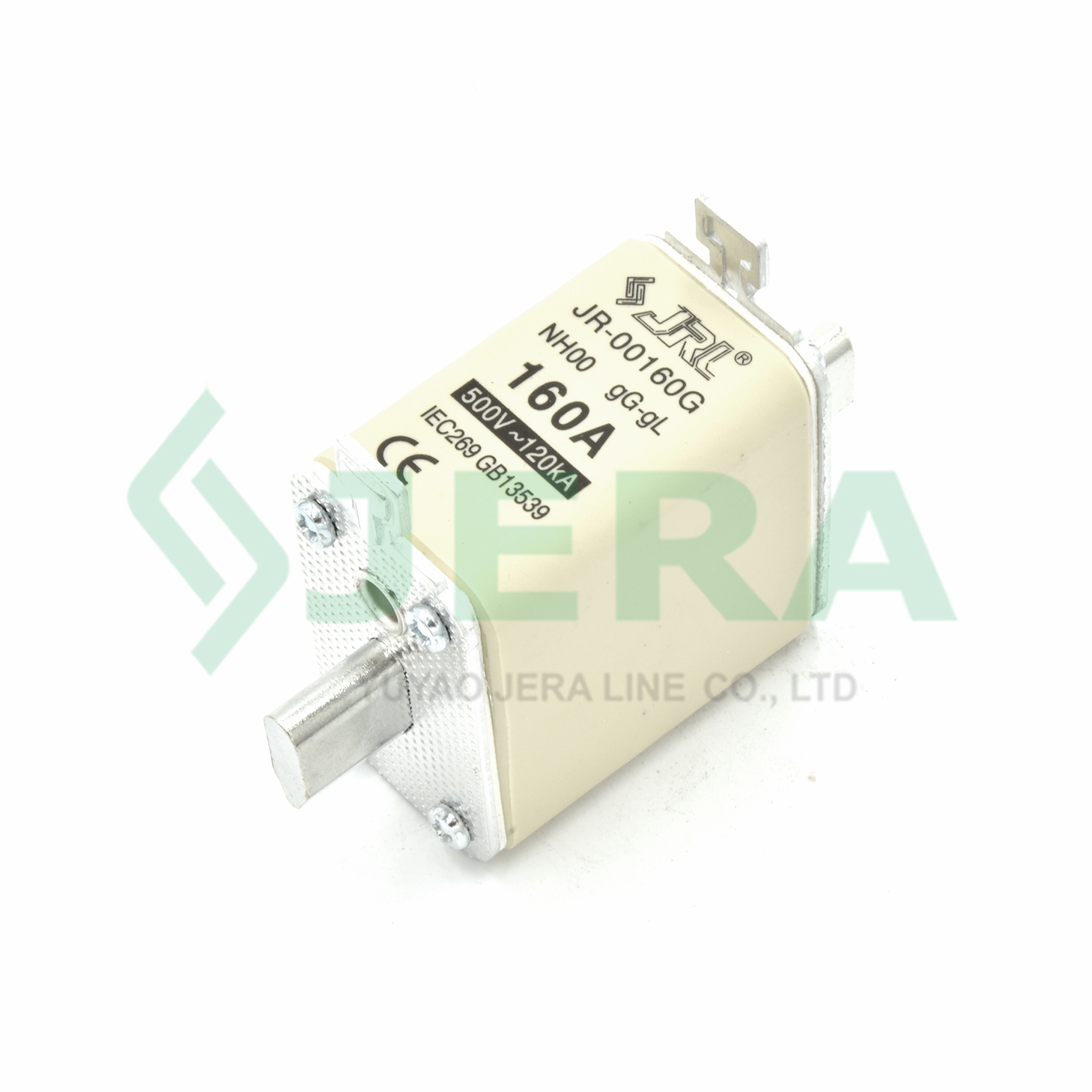

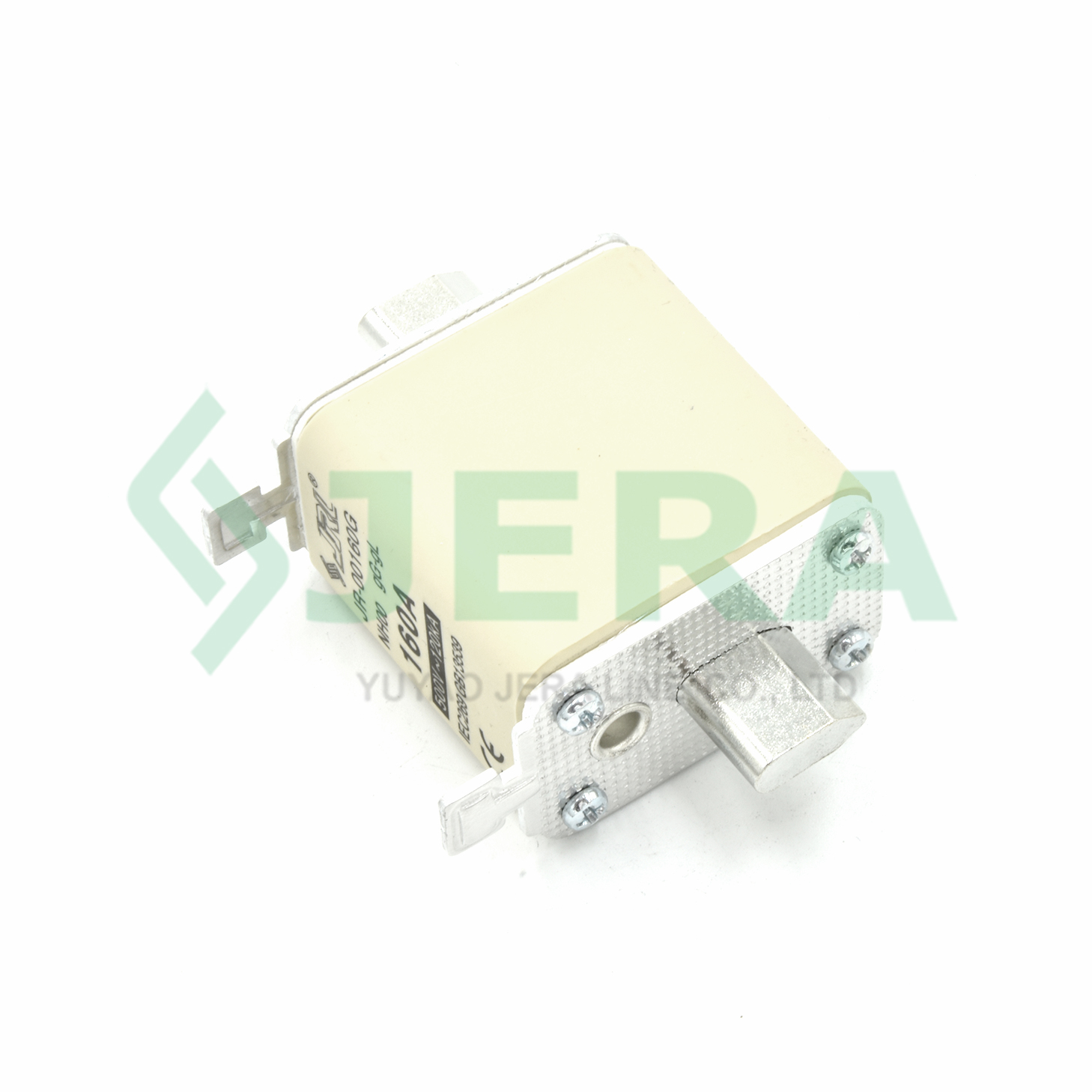

The NH00 160A fuse link is designed for dependable protection of low‑voltage electrical installations, ensuring safe and efficient operation of distribution networks, industrial equipment, and control systems. Built to IEC 60269 standards, this fuse link provides full‑range gG protection against overloads and short circuits, making it a robust choice for a wide range of applications.
Key application area:
● Low‑voltage distribution boards and feeder circuits
● Transformer secondary protection
● Industrial machinery and motor protection
● Cable and line protection
● Renewable energy systems (PV, BESS)
● Control panels, switchgear, and MCCs
Technical specification
Product code
Fuse size
Class
Amperage Rating
Rated switching capacity
Rated voltage AC
JR-00160G
NH00
Class gG/gL
160A
120 kA
500V
Components and materials
Low voltage fuses NH00 JR-00160G, is manufactured and Research and Design RnD by Jera Line, a direct low voltage fuse NH00 factory location in China who can provideExtended warranty,the Fuse Link NH100 consists of the following main part:
Key Part Name
Material Name
Fuse Element
Copper Sheet (or Wire)
Contact
Copper
Fuse Tube
Ceramic
Filling Material
Quartz Sand

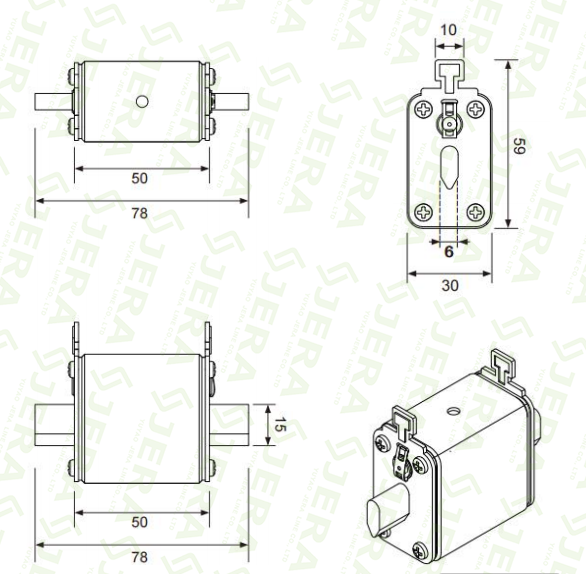

Dimensions
Test
Low voltage fuses NH00 JR-00160G complied with LV fuse testing requirements IEC6269 & GB13539 standard, the test scopes are as following:
Test
Purpose
Visual & dimensional
Verify construction and NH00 compatibility
Temperature rise
Safe thermal behavior at 160A
Power dissipation
Energy efficiency and heat control
Breaking capacity
Safe interruption of high fault currents
Timecurrent curve
Confirm gG protection characteristics
Mechanical strength
Durability of blades and housing
Indicator test
Proper operation of fuse indicator
Insulation resistance
Electrical safety
Environmental tests
Longterm reliability
