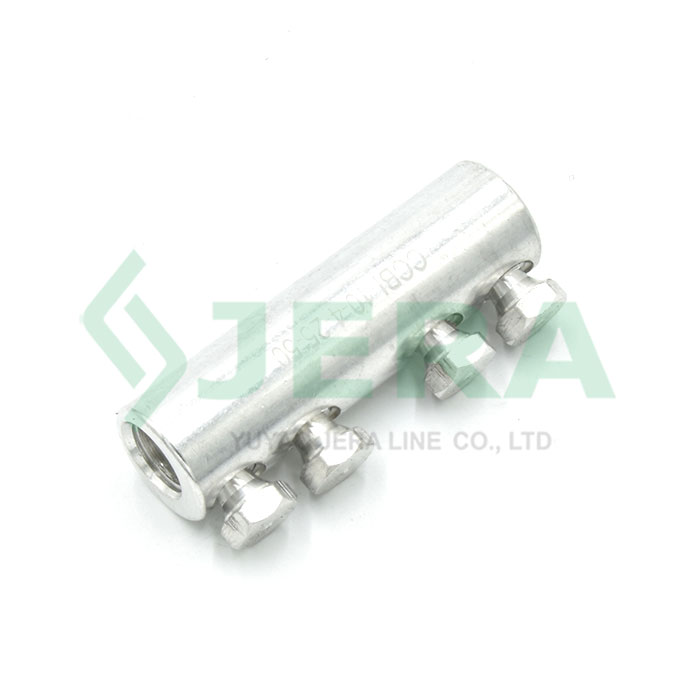

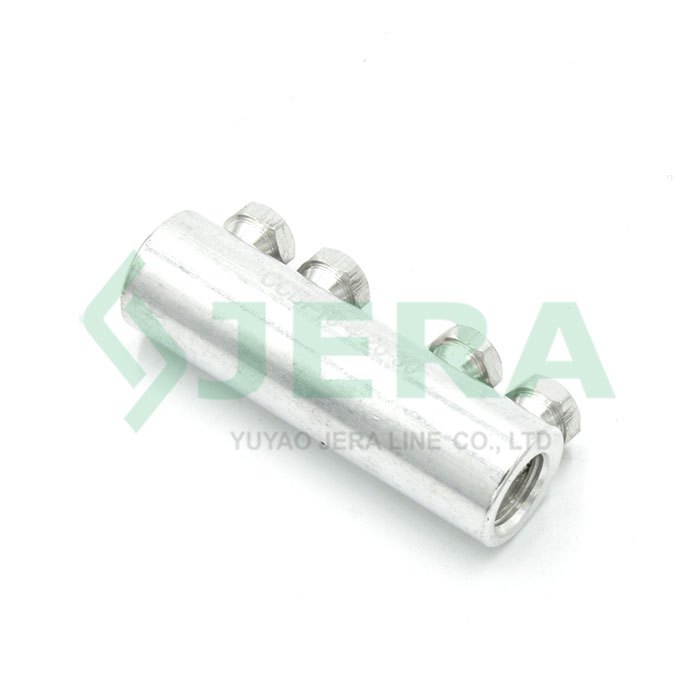

Mechanical Shearhead Bolt Electrical cable Connector CCBI-10-4-25-50 , is made of aluminum with high mechanical strength, it has durable connection and steady shearhead torque, designed for cables to electrical appliances under voltage 10KV, with fast and easy installation by a hex key.

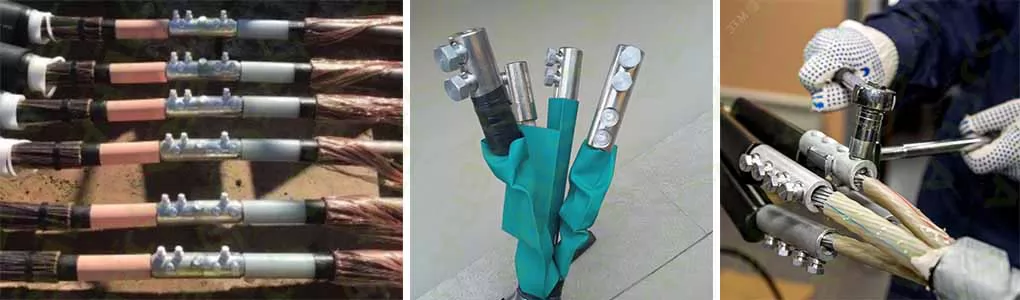

Main Applications:
● Electrical Transmission and Distribution Lines: Secures electrical conductors to the system.
● Substation Equipment: Connects cables or busbars to equipment like transformers, circuit breakers, or switchgear.
● Grounding Systems: Connects ground wires to grounding rods or other components.
Technical specification
Product code
Cable size, mm2
Bolt number
Application cable
CCBI-10-4-25-50
25-50
4
Aluminum

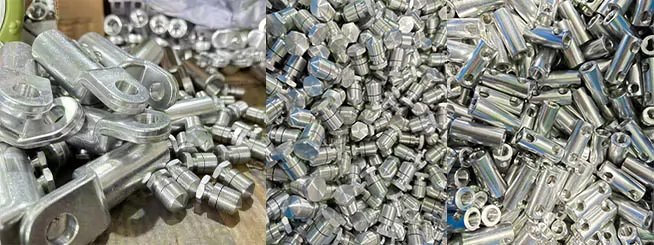

Components and materials
Mechanical terminal cable Connector,CCBI-10-4-25-50is produced by a direct factory location in China -- Jera Line, Jera Line innovates R&D based on customer needs and market trends. With experienced teams, we continuously develop and optimize products to meet market demands.
The mechanical shearhead cableconnectorconsists of the following main part:
Components
Materials
Body
Aluminum alloy
Shear off torque bolts
Aluminum alloy

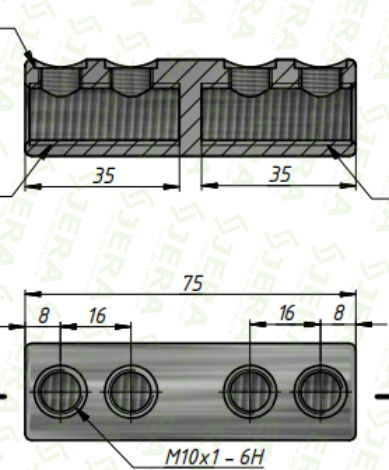

Dimensions
Test
Aluminum Shearbolt Conductor Bolt, CCBI-10-4-25-50has passed routine test by jera line own in house factory laboratory, if the test report required, Jera Line can provide factory test report which according to testing standard lEC-61238-3.

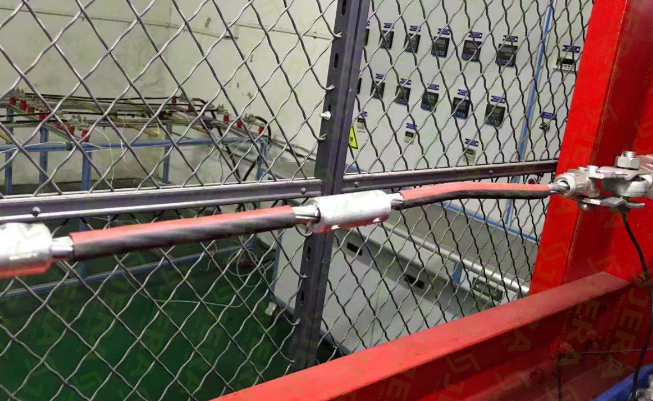

Jera Line also operates its own factory laboratory for routine tensile strength testing using a tensile strength machine.
