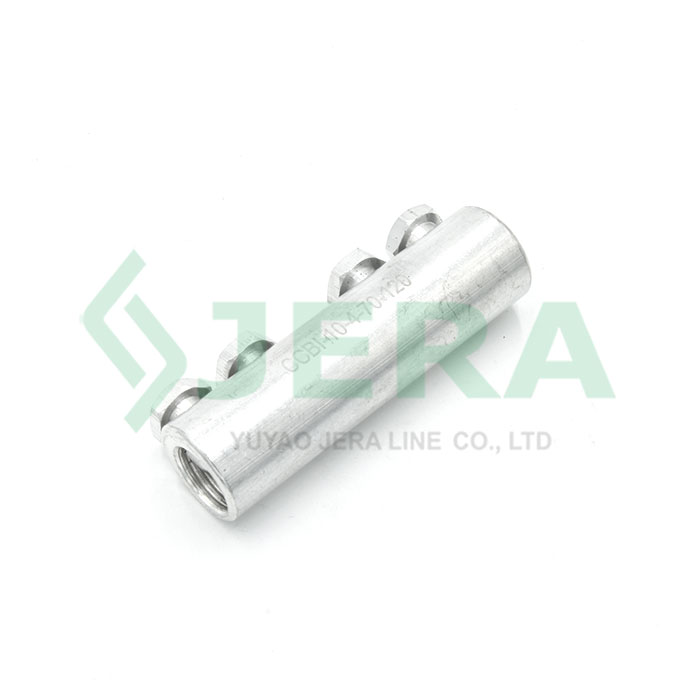

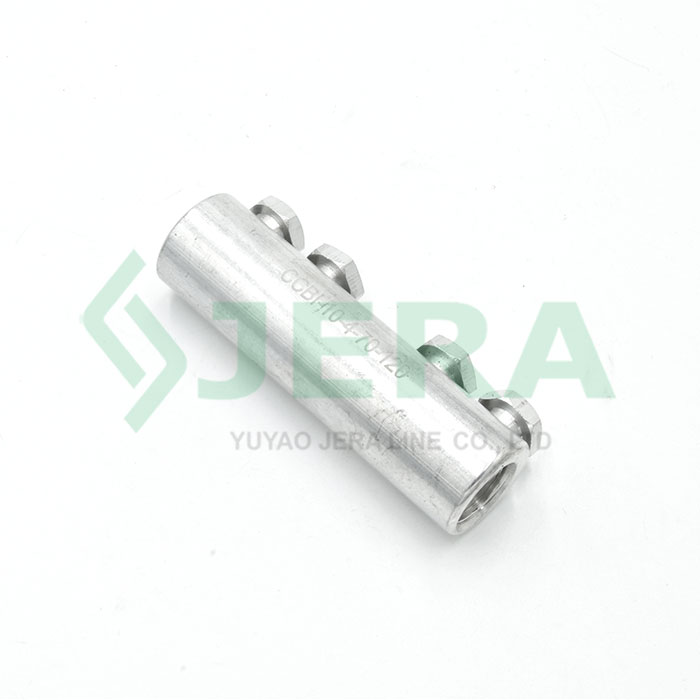

Mechanical Shearhead Bolt Electrical cable Connector CCBI-10-4-70-120 , it is designed for terminating aluminum conductors ranging from 70 mm² to 120 mm² in medium-voltage power systems up to 10 kV. Constructed from durable metal alloy, it ensures a secure and long-lasting connection with consistent torque performance.
Its shearhead bolt design allows for tool-free installation—tightening with a hex key applies the required force, and the bolt head shears off automatically to confirm proper electrical contact.
Technical specification
Product code
Cable size, mm2
Bolt number
Application cable
CCBI-10-4-70-120
70-120
4
Aluminum

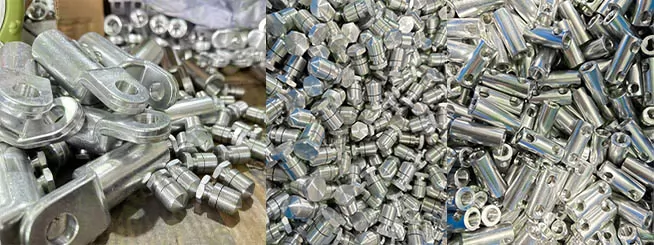

Components and materials
Aluminum Mechanical terminal cable Connector, CCBI-10-4-70-120 is produced by a direct factory location in China -- Jera Line, Jera Line innovates R&D based on customer needs and market trends. With experienced teams, we continuously develop and optimize products to meet market demands.
The mechanical shearhead cable connector consists of the following main part:
Components
Materials
Body
Aluminum alloy
Shear off torque bolts
Aluminum alloy

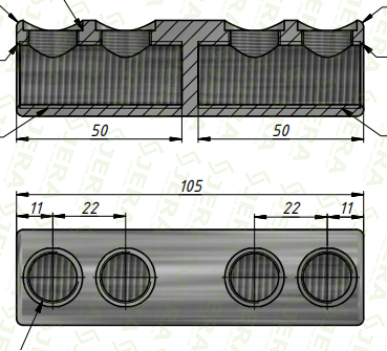

Dimensions

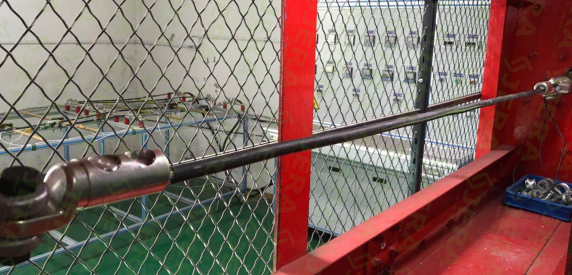

Test
Aluminum Mechanical terminal cable Connector, CCBI-10-4-70-120is produced by a direct factory location in China -- Jera Line, Jera Line innovates R&D based on customer needs and market trends. With experienced teams, we continuously develop and optimize products to meet market demands.
The mechanical shearhead cableconnectorconsists of the following main part:
