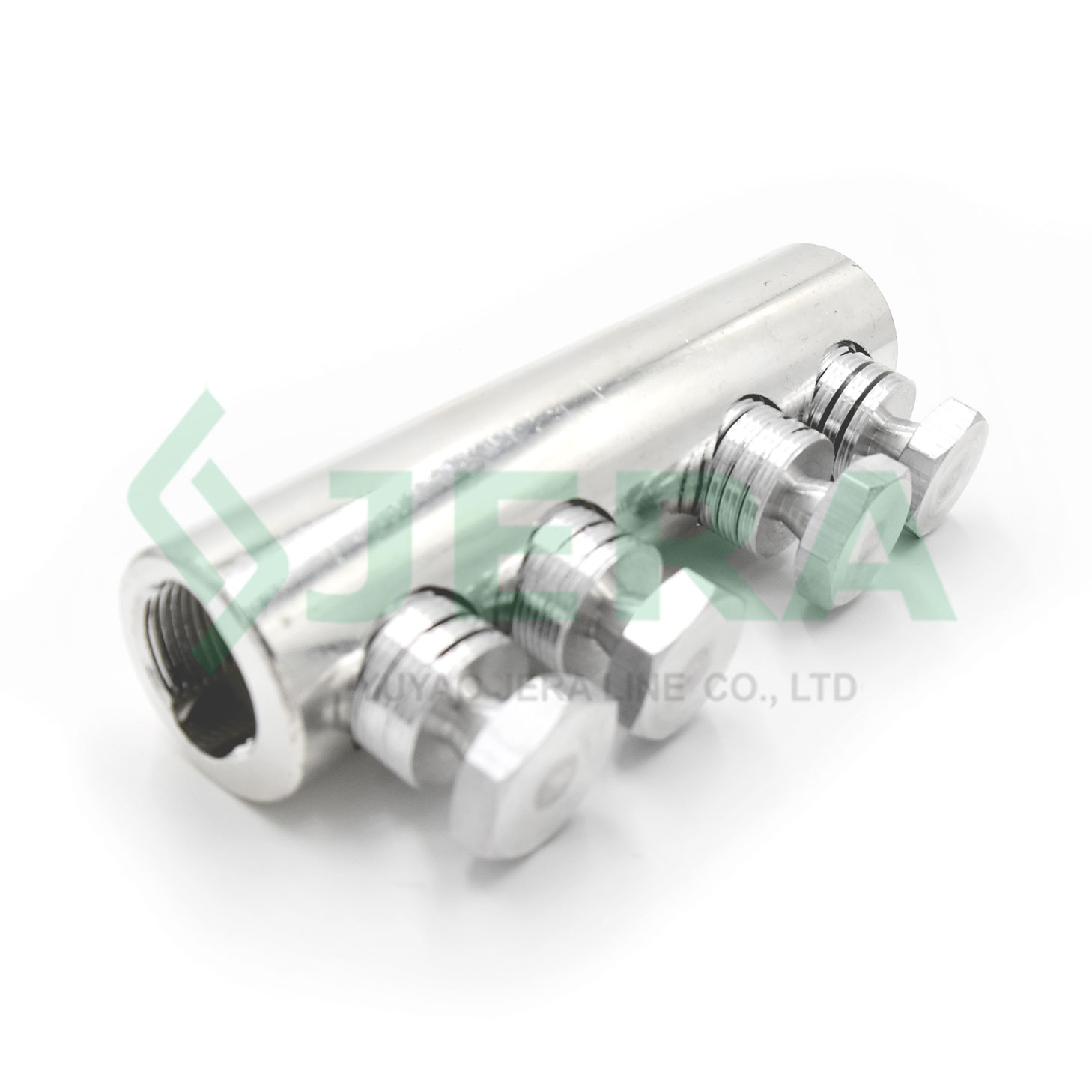

Mechanical Connector Shear Bolts, CCBIT-4-70-240
CCBIT-4-70-240
Description:
Cable connector shear-off-head bolts, CCBIT-4-70-240 also called mechanical cable connector, was developed to connect any type of cable cores: Copper and aluminum, round or sector wire cables and stranded wires under voltage 1, 11kV. Each connector is multilateral and caters to a range of cable size.
- Application: copper and alum cables
- Cable size: 70-240 mm2
- Size bolt：18/19 mm
- Bolts: 4
- Product detail
- Specification
- Video
- Inquiry
Key Features
- Material: Aluminum body, surface covered by tin
- Universal shape of input hole, for solid and stranded cables
- Easy installation only by using hex key
- Four zones of shearing off head bolts
- Supply different outer diameter connectors for various cable size
- Inner jointing grease guarantee sustainable electrical contact
- Excellent electrical stability
- Fair price
SPECIFICATION
Product analogs: Mechanical cable connectors and joints
Application: Low voltage electrical power lines, underground electrical networks, buildings
Cable connector CCBIT-4-70-240 is made of high quality aluminum and surface covered by tin which ensure high mechanical strength and long time usage. The 4 bolts can be made of brass which depend on requirement.
Terminal Lug Shear Sleeve CCBIT-4-70-240 is appropriate used with aluminum cable, copper cable stranded shaped, circular, and solid with cross section of cable line 70-240 mm. Corrugated knurling on the inner surface of the cylindrical part of the connectors increases the surface area and mechanical strength of the contact connection. And there is grease inside of connector which will increase the stability of electrical connect.
APPLICATION
The installation of bolt cable joint connector is very convenient no need special tools or professional skill, only require the compression tool with exact size. All required tension force is achiesved by shearing off the head of bolt by hex key. Jera also supply mechanical cable lugs for electrical line, please find it in our product range.
Welcome to send inquiry for more information about this shear-off-head bolts connector price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Cable diameter, mm2 |
Size bolt, M/ hex size |
No. of bolts |
Available bolt materials |
Applicable cables |
|
CLBIT-4-70-240 |
70-240 |
18/19 |
4 |
Aluminum uncoated, tin coated, brass |
Copper, Aluminum |
