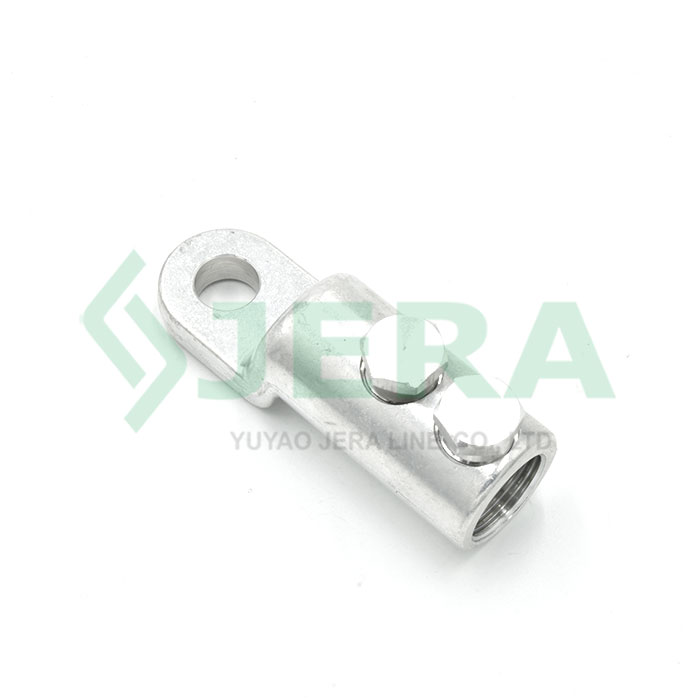

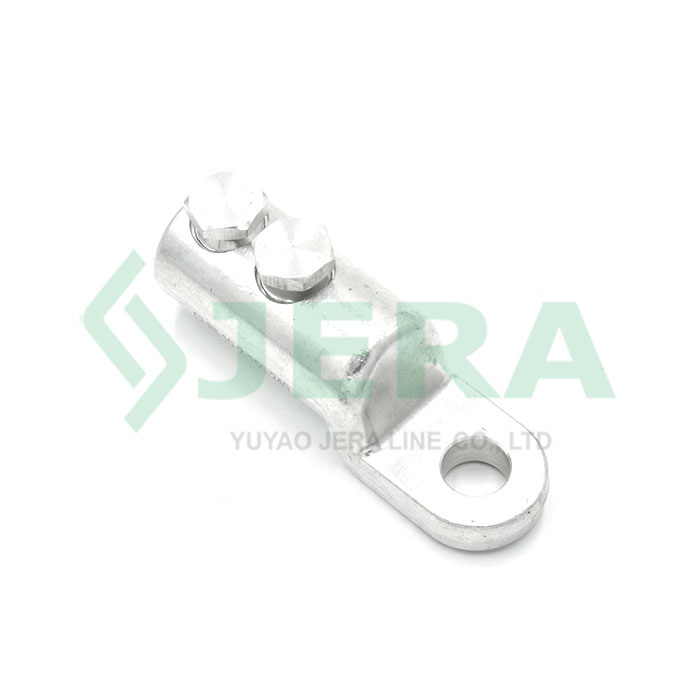

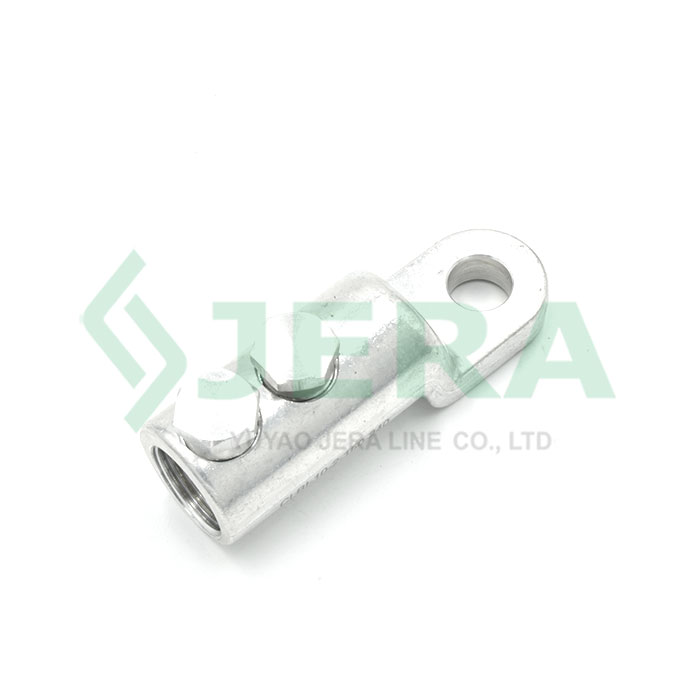

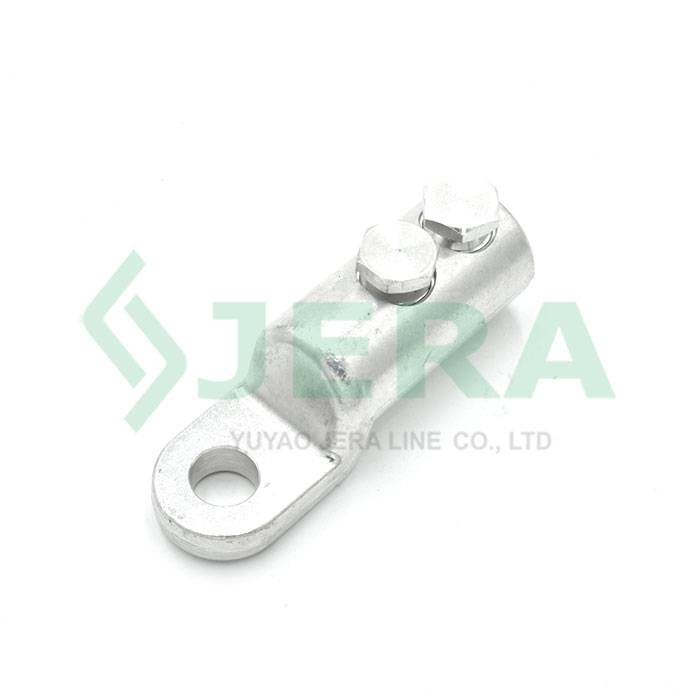

Mechanical low voltage ShearHead lug,CLBI-10-2-150-240

Mechanical lv Shearhead electrical Lug, 2 bolts, 150-240 mm2 cable application size, aluminum durable material, 10KV lines

Features

Fast installation with a hex key.
Manufactured from aluminum, durable
Robust design with 2 bolts
Wide Application Range
Compatible with both solid and stranded cables.
Comply with IEC-61238-1-3 standards.
Factory location in China

DESCRIPTION

TEST

REVIEW

Application

Mechanical shear head terminal CLBI-10-2-150-240 , is designed for terminate cable, it’s used for 150-240mm2 aluminum cable, the cable lugs have high mechanical strength, durable connection and steady shear head torque cables to electrical appliances under voltage 10KV.

Main Applications:

• Power Distribution Networks: Securely connects conductors within overhead or underground systems

• Substation Equipment: Interfaces with transformers, switchgear, and circuit breakers for efficient power transfer

• Grounding Systems: Provides reliable termination of ground conductors to rods or grounding grids

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CLBI-10-2-150-240	150-240	2	Aluminum

Components and Materials

Mechanical terminal cable Lug,CLBI-10-2-150-240 is produced by a direct factory location in China -- Jera Line, designed for tool-free installation using shearhead bolt technology. All required tension force is achieved by shearing off the head of bolt by hex key, which tighten the bolt.

The mechanical bolted wire lug consists of the following main part:

Components	Materials
Body	Aluminum alloy
Shear off torque bolts	Aluminum alloy

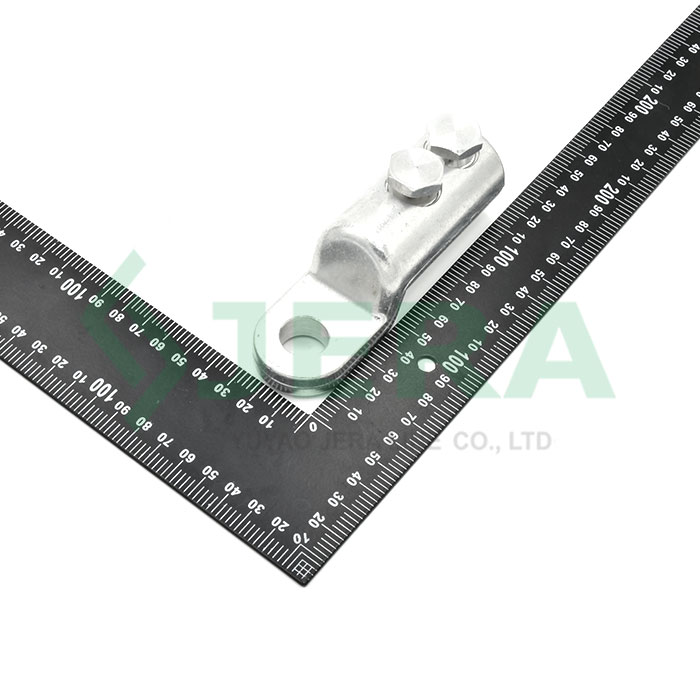

Dimensions

Test

Aluminum Shearbolt Conductor Lug, CLBI-10-2-150-240 has passed routine test by jera line own in house factory laboratory, all the test scopes are according to international testing standard lEC-61238-3.

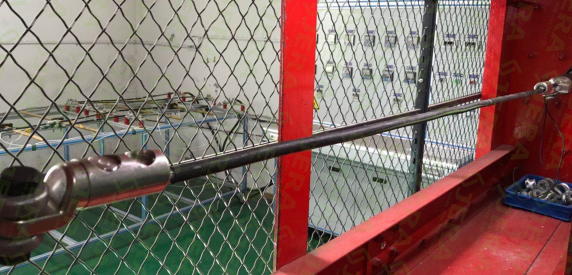

Here is the Tensile strength testing conducted in Jera Line laboratory with tensile strength machine.
