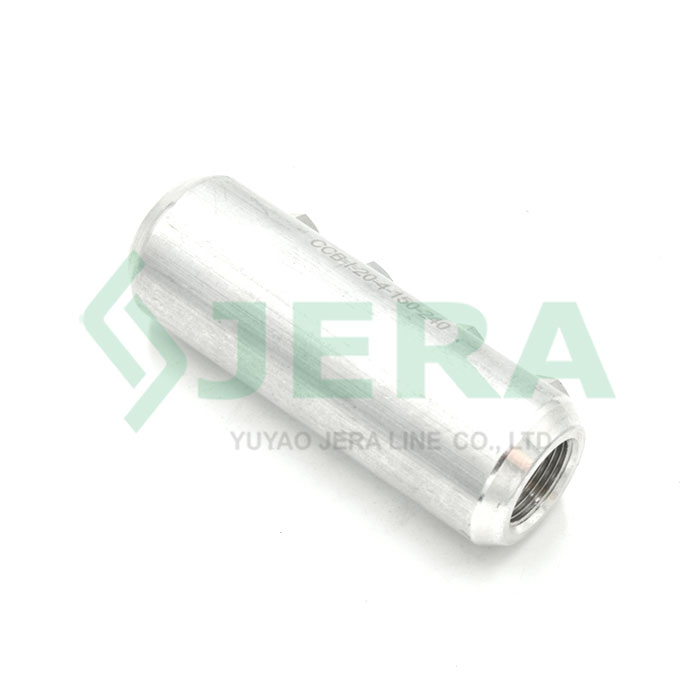

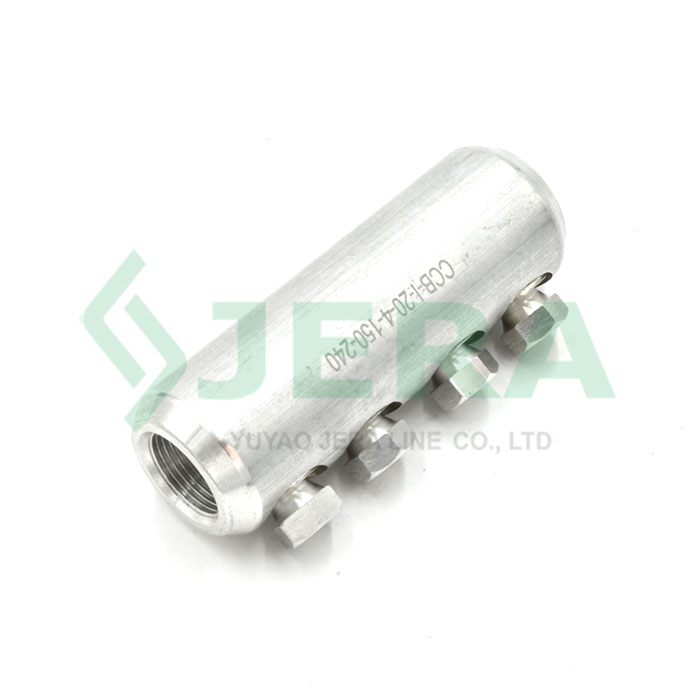

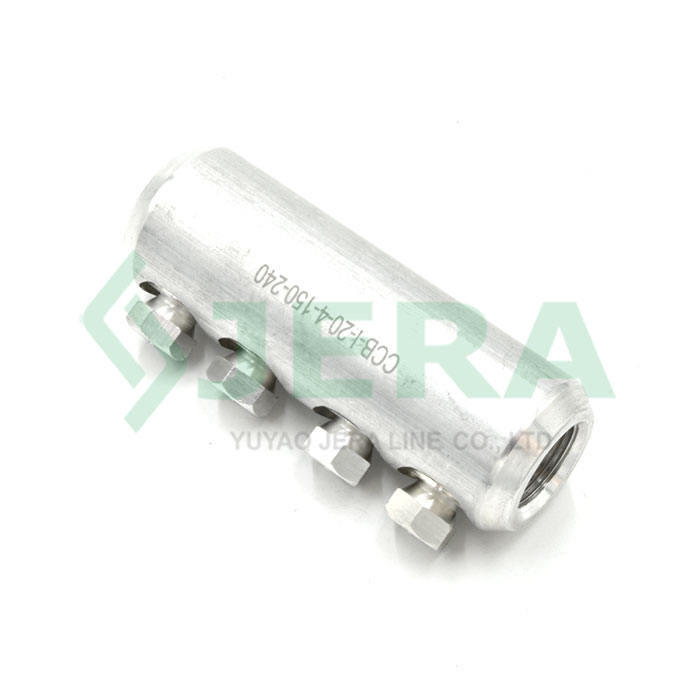

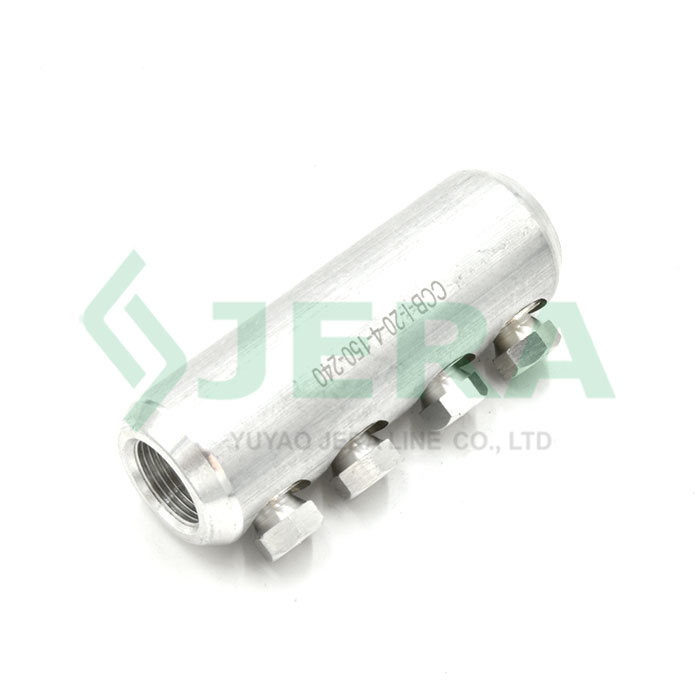

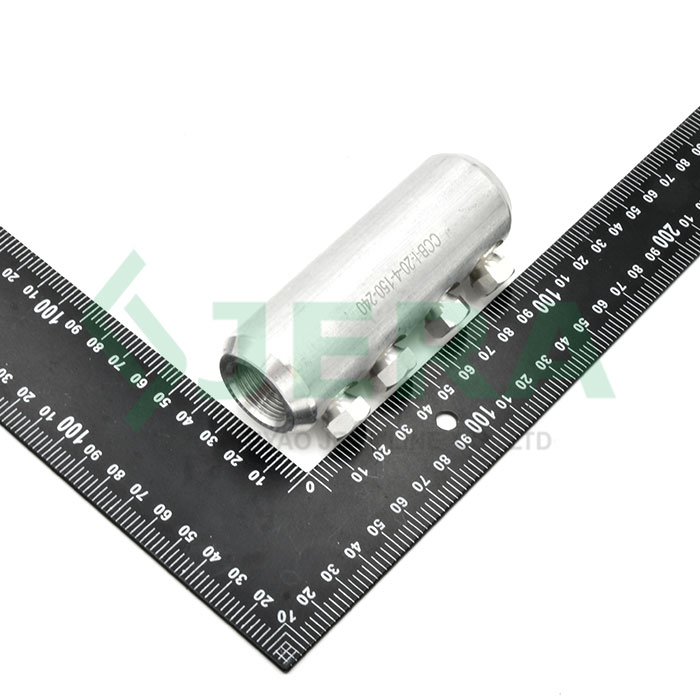

Mechanical MV bolted Cable Connector,CCB-I-20-4-150-240

Medium voltage Shearhead Terminal Connector, 4 shearhead bolts, 150-240 mm2 cable range, IEC-61238-1-3 type test report, 36KV cable usage

Features

Simple and quick installation using a standard hex key

Compatible with electrical cables ranging from 150 mm² to 240 mm²

Engineered with a steady shear head torque

Produced in accordance with IEC 61238-1-3

Factory location in China

DESCRIPTION

TEST

REVIEW

Application

MV Mechanical Shearhead Electrical cable Connector , also called MV mechanical bolted cable connector , typically made of an aluminium-alloy body with shear-head bolts which give a consistent tightening torque, is a metal device used for connection cables to electrical appliances under voltage 36KV.

Main Applications:

● Aluminum Torque Wire Connector CCB-I-20-4-150-240, it can be used in 0.4-36KV aluminum cables distribution systems.

● Utility networks-power distribution lines and grid infrastructure

● High mechanical strength, offers steady shear head torque for reliable performance

● Grounding Systems: it can be employed to connect ground wires to grounding rods or other grounding components.

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CCB-I-20-4-150-240	150-240	4	Aluminum

Components and materials

Mechanical terminal Lug,CCB-I-20-4-150-240 is produced by Jera a leading and direct factory location in China, and it is also under Research and Design RnD by Jera Line.

The MV mechanical terminal connector consists of the following main part:

Components	Materials
Body	Aluminum alloy
Shear off torque bolts	Aluminum alloy

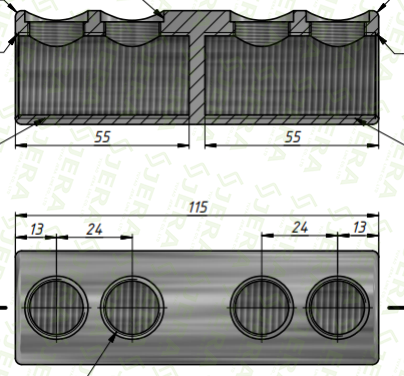

Dimensions

Test

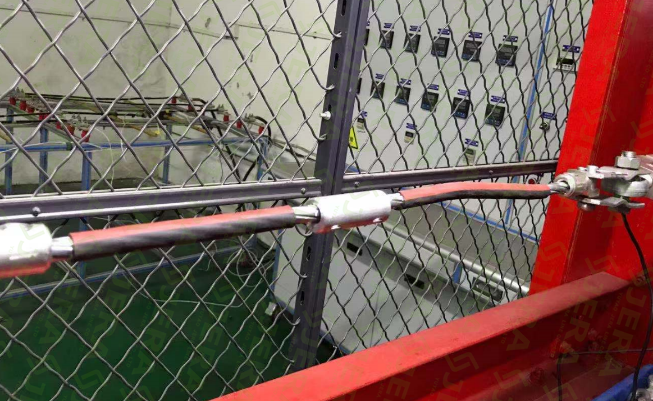

Aluminum MV Shearbolt Conductor lug,CCB-I-20-4-150-240 has undergone rigorous Electrical and Mechanical testing under the mechanical testing standard IEC 61238-1-3:2018, conducted by Jera Line in-house laboratory by using a tensile strength machine.
