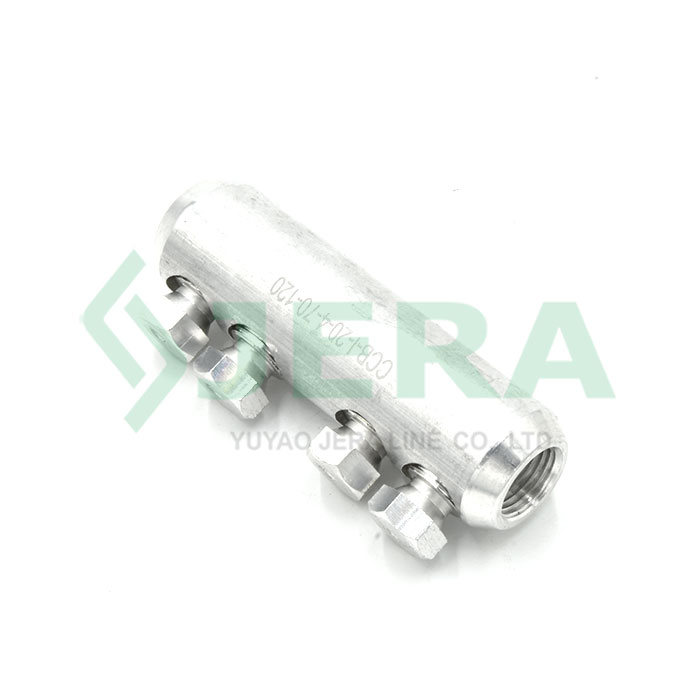

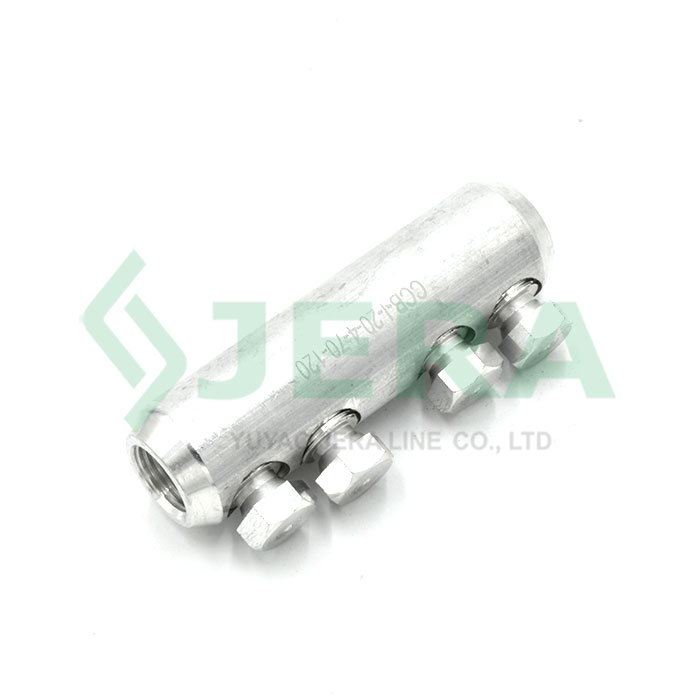

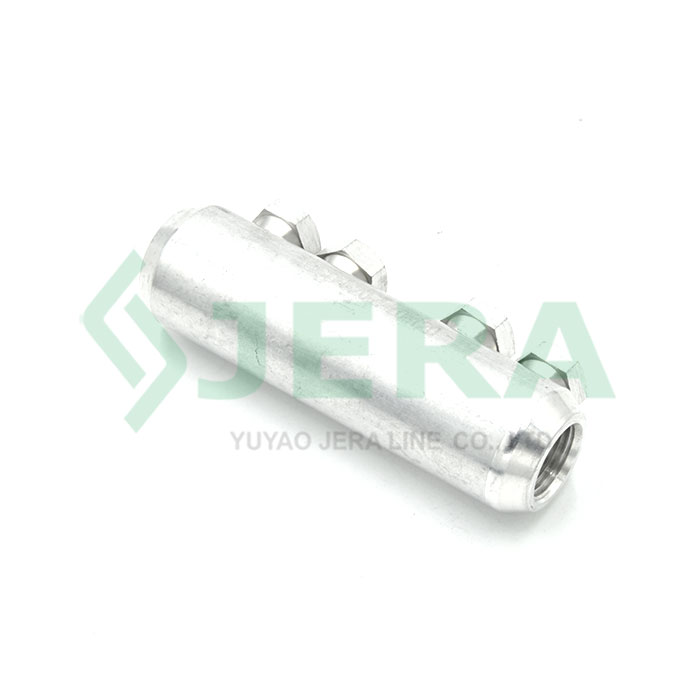

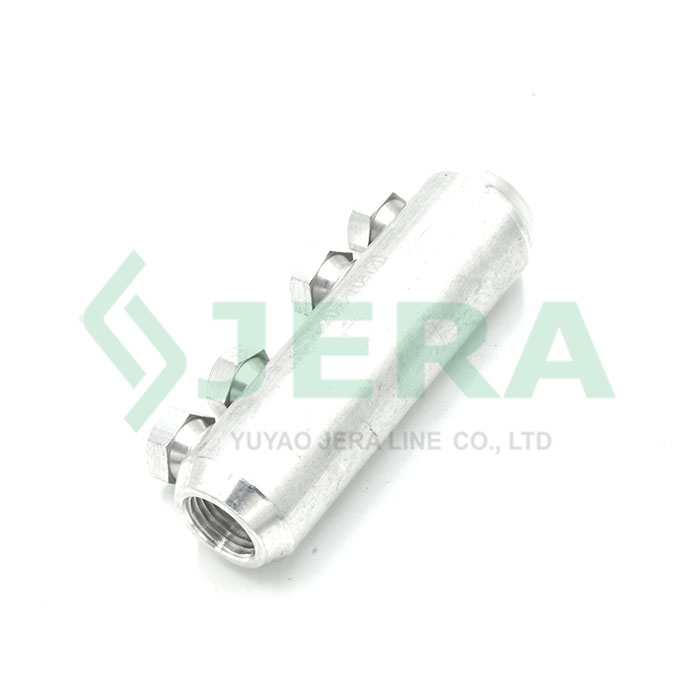

Mechanical MV Shearhead Cable Connector,CCB-I-20-4-70-120

Mechanical Shearhead Terminal Connector, 4 bolts shearhead nuts, apply for range 70-120 mm2 Aluminum 36kV cables, IEC-61238-1-3 type test report

Features

Designed for a simple and quick setup using a standard hex key

Constructed from premium-grade aluminum

Wide cable cross section Application

High mechanical strength with steady shear head torque

Manufactured according to standard lEC-61238-1-3

Direct factory in China

DESCRIPTION

TEST

REVIEW

Application

MV Mechanical Shearhead Electrical cable Connector , also called MV mechanical bolted cable connector ,is used to terminate MV cable conductors to electrical appliances.

Main Applications:

● Aluminum Torque Wire Connector CCB-I-20-4-70-120, it can be used in 0.4-36KV aluminum cables distribution systems.

● Utility networks-power distribution lines and grid infrastructure

● Transformer Connections: Provides a secure and reliable connection between large cables and transformers.

● Grounding Systems: it can be emploved to connect ground wires to grounding rods or other grounding components.

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CCB-I-20-4-70-120	70-120	4	Aluminum

Components and materials

Mechanical terminal Lug,CCB-I-20-4-70-120 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the mechanical cable lug doesn’t need a crimping tool, only need a hex key to shear screw off.

The MV mechanical terminal cable connector consists of the following main part:

Components	Materials
Body	Aluminum alloy
Shear off torque bolts	Aluminum alloy

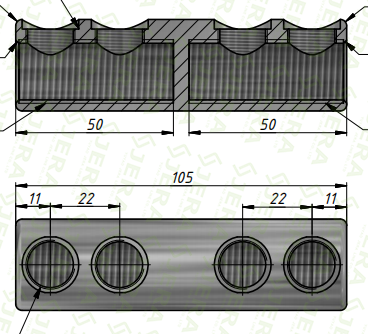

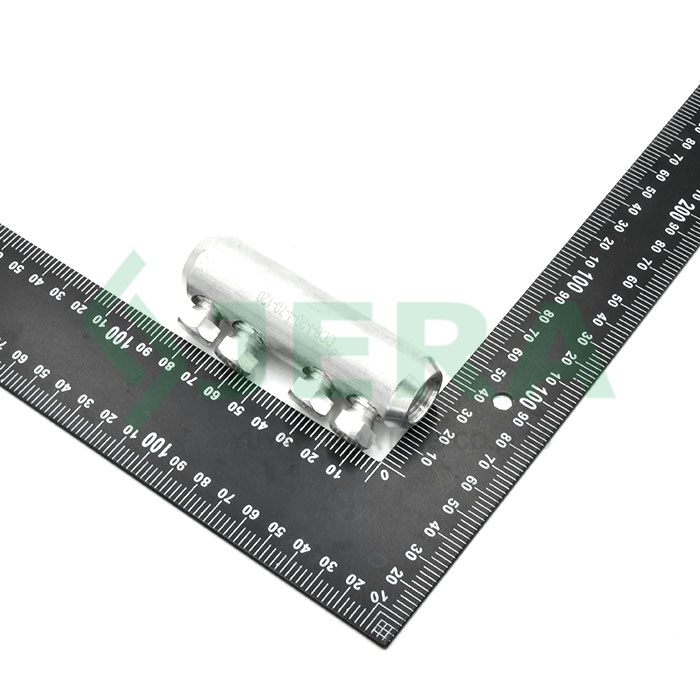

Dimensions

Test

Aluminum MV Shearbolt Conductor,CCB-I-20-4-70-120 has undergone rigorous Electrical and Mechanical testing under the international standard IEC 61238-1-3:2018, which conducted by an independent 3rd party laboratory.

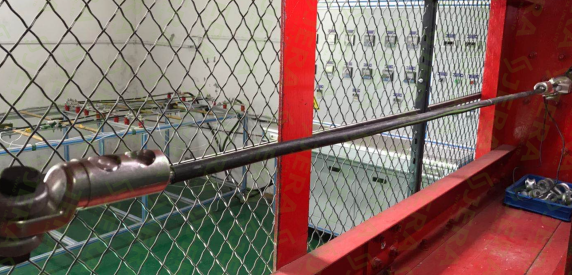

Jera Line has tensile strength machine in own factory laboratory for routine tensile strength testing as well.
