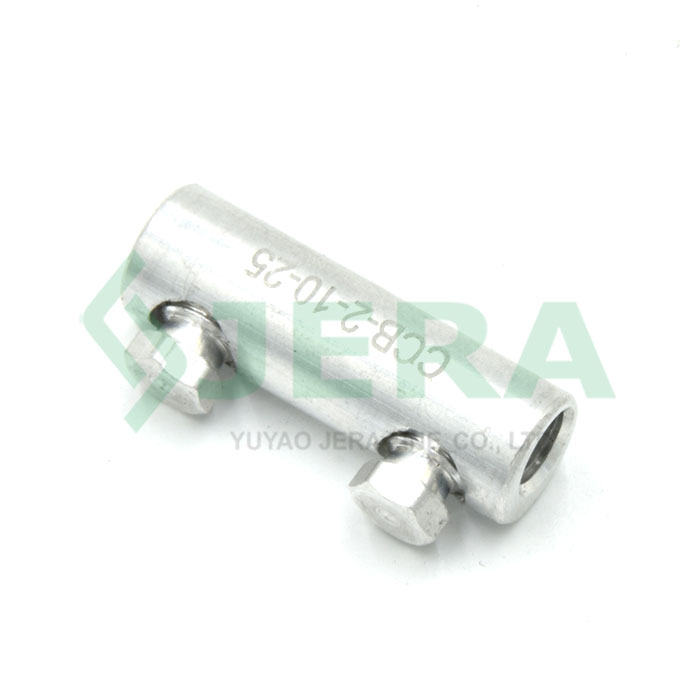

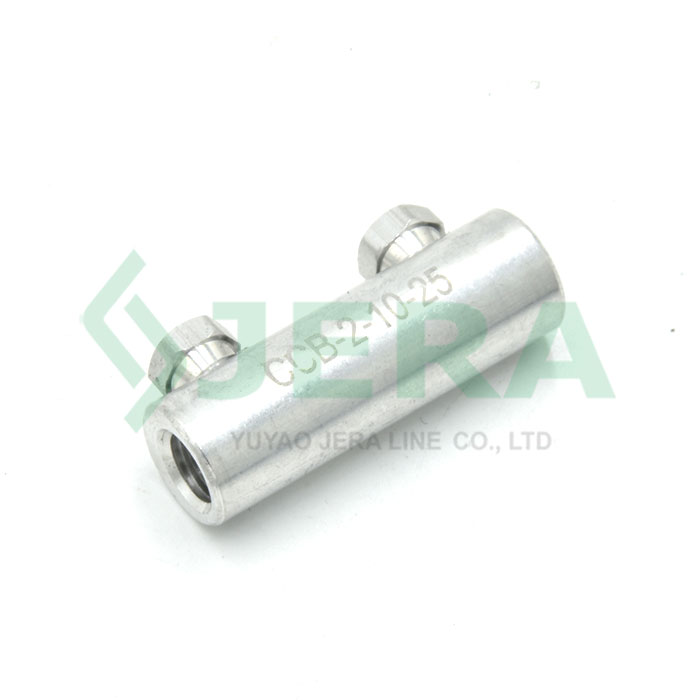

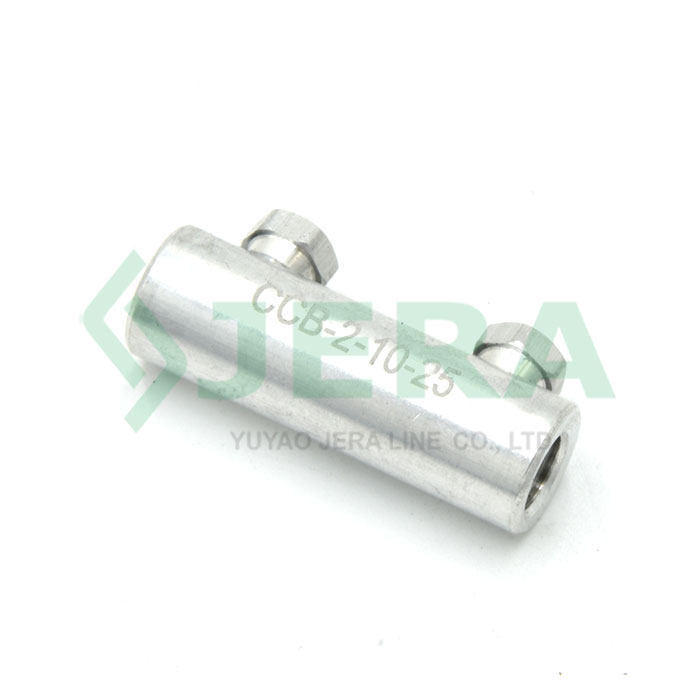

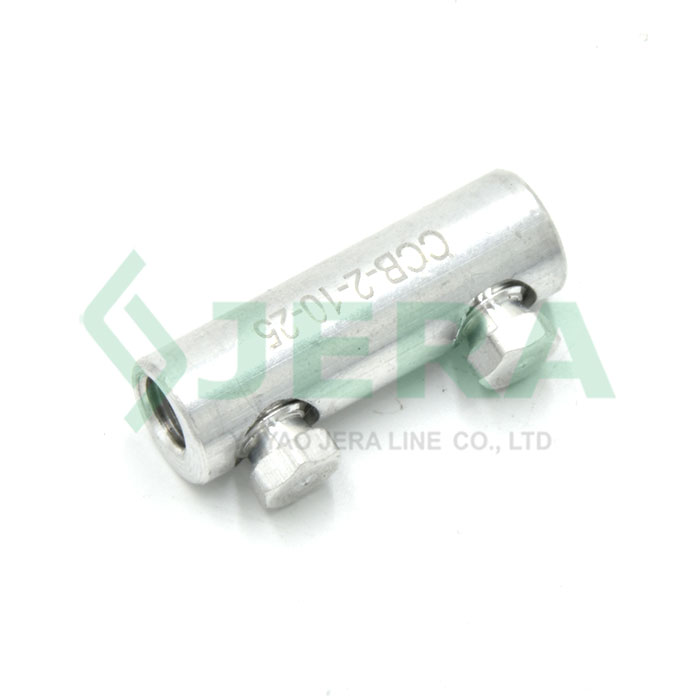

Mechanical Shear Bolt Cable Connector, CCB-2-10-25

Mechanical Shearhead Terminal Connector, 2 bolts, 10-25mm2 aluminum cable

Features

Rapid installation by using hex key
Wide Application Range: Suitable for electrical cables ranging from 10 to 25 mm².
Inner jointing grease ensure good electrical contact.
In-house laboratory conducted tensile strength test and shear head torque test
Factory location in China

DESCRIPTION

TEST

REVIEW

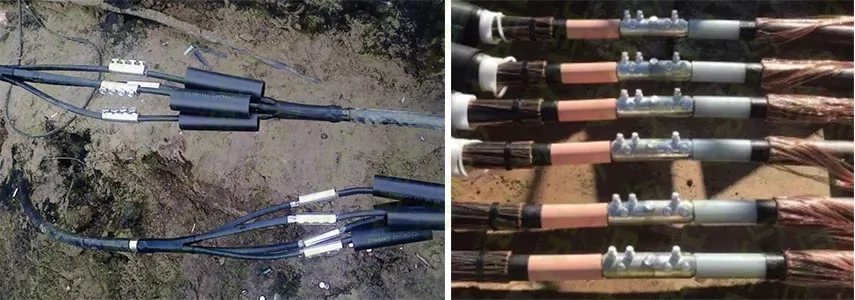

Application

Mechanical Shearhead Electrical Connector CCB-2-10-25, is a metal device used for connect both solid and stranded cables to electrical appliances under voltage 1KV. It’s suitable for both aluminum electrical cable during power line constructions.

Main Applications:

● lt can be used to secure electrical conductors to transmission or distribution line system

● Substation Equipment: Connects cables or other electrical equipment like transformers, circuit breakers, or switch-gear.

● Grounding Systems: Connects ground wires to grounding rods or other components.

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CCB-2-10-25	10-25	2	Copper/Aluminum

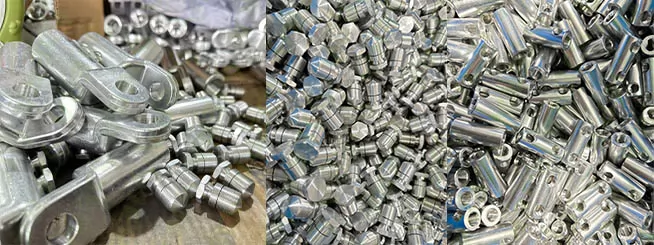

Components and Materials

Mechanical terminal cable connector, CCB-2-10-25 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, Shear-off-head bolts lugs and electrical cables jointing process does not require the compression tool with exact size. All required tension force is achieved by shearing off the head of bolt by hex key to tight the bolt.

The mechanical shear off bolt connector consists of the following main part:

Components	Materials
Body	Aluminum alloy
Shear off torque bolts	Aluminum alloy

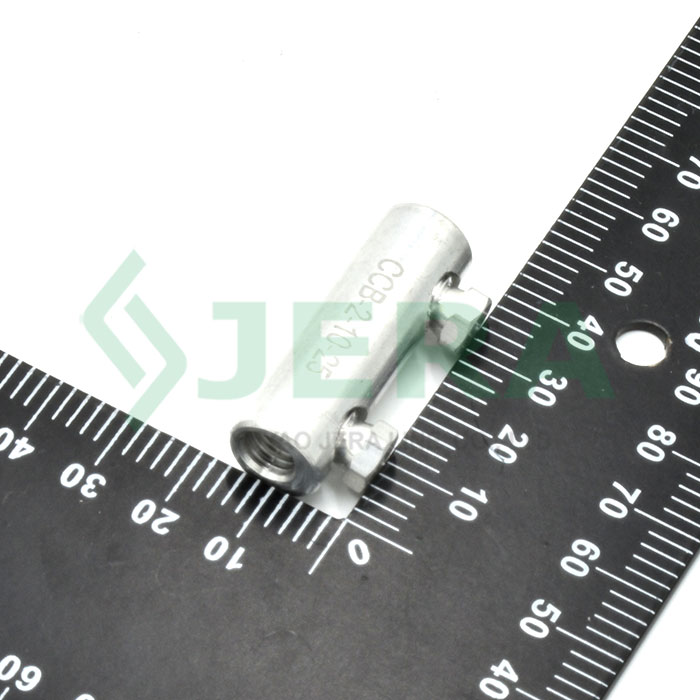

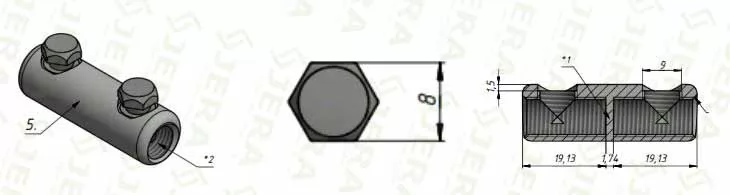

Dimensions

Test

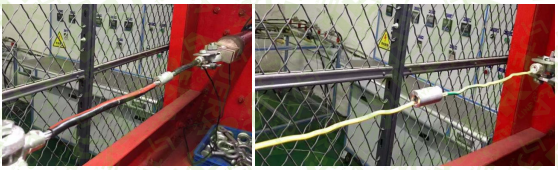

Aluminum Shearbolt Conductor connector, CCB-2-10-25 has undergone rigorous quality testing in Jera line factory laboratory, the reference testing standard is IEC 61238-1-3:2018.
