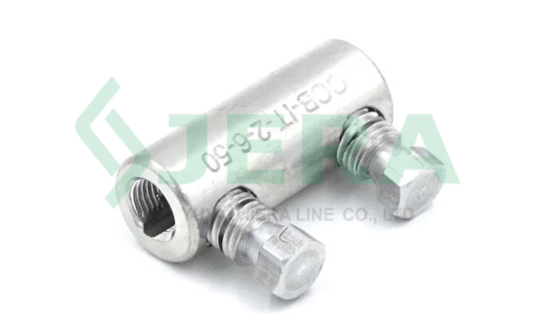

The Mechanical Shear Bolt Connector CCBIT-2-6-50, manufactured by Jera Line -- an advanced mechanical screw connectors and lugs supplier, the connector is designed to provide secure, efficient, and long-lasting electrical connections in low voltage power distribution systems.
The CCBIT-2-6-50 connector utilizes a shear head bolt design, ensuring proper tightening torque and consistent electrical contact without the need for crimping tools. This design simplifies installation, reduces labor time, and ensures a reliable mechanical and electrical connection for both aluminum and copper conductors.
Low voltage Cable connector Specification:
|
Product code
|
CCBIT-2-6-50
|
|
Cable size,mm2
|
6(4)-50
|
|
Bolt Number
|
2
|
|
Torque,N*m
|
12/14
|
Features
-
Rapid installation by using hex key
-
Torque-controlled shear-head bolts guarantee a good electrical contact
-
Tin covered Aluminum Alloy material, can be used for both AL and CU cables
-
Wide range application for electrical cable from 6 to 50mm2
-
Third party laboratory type test report lEC-61238-1-3
-
Competitive price as factory location in China
Applications
Mechanical shear Bolt connector CCBIT-2-6-50 offers a secure and long- lasting connection for cable wire,ensuring optimal performance in various applications.
-
Electrical Transmission and Distribution lines: it can be used to secure electrical conductors to transmission or distribution line system.
-
Substation Equipment: it can connect cables or busbars to different substation equipment such as transformers, circuit breakers, or switchgear
-
Grounding Systems: it can be employed to connect ground wires to grounding rods or other grounding components.
Why Choose Jera Line as Your Mechanical Shear Bolt Connector Supplier?
In today’s power distribution and electrical connection industries, choosing the right supplier for mechanical shear bolt connectors is critical to ensure reliability, safety, and long-term performance. Jera Line stands out as a trusted and proven manufacturer delivering innovative connection solutions for global energy infrastructure.
-
Proven Quality and Reliability: Jera Line’s mechanical shear bolt connectors are fully tested according to IEC 61238-1 international standards. Each connector undergoes rigorous mechanical, thermal, and electrical performance tests, ensuring reliable operation under demanding conditions. The products are designed for both aluminum and copper conductors, providing universal compatibility across various applications.
-
Large-Scale Production Facilities: Jera Line uses over 5,000㎡ of facility area for manufacturing, with large-scale production facilities such as moulding and tooling machines, plastic infection machines, drilling machines, cutting machines, and others.
-
OEM and ODM Service: Jera Line offers OEM and ODM services to our customers, we are more than willing to provide customers with the maximum support within our capabilities.
-
Cost-Effective and Competitive: By operating as a direct factory without middlemen, Jera Line provides more competitive pricing and reliable lead times. This helps customers optimize project budgets while still receiving world-class quality.
-
Expert Sales Support: With years of experience in the electrical connection industry, Jera Line supplies customers across Europe, Asia, and the Middle East. Our technical team offers personalized consultation and project-based support, ensuring each client receives the best solution for their specific requirements.
-
Competitive Factory Pricing: As a direct manufacturer, Jera Line eliminates middlemen and delivers products at factory-direct prices, helping clients achieve cost savings while maintaining superior quality and performance.
Conclusion
Choosing Jera Line as your mechanical shear bolt connector supplier means choosing quality, reliability, and partnership.
We are committed to powering your projects with innovative and durable connection solutions — built to perform, designed to last.
Jera Line – Reliable Connection Solutions for a Smarter Power Future.
If you are interested in our products please don’t hesitate to contact us!
