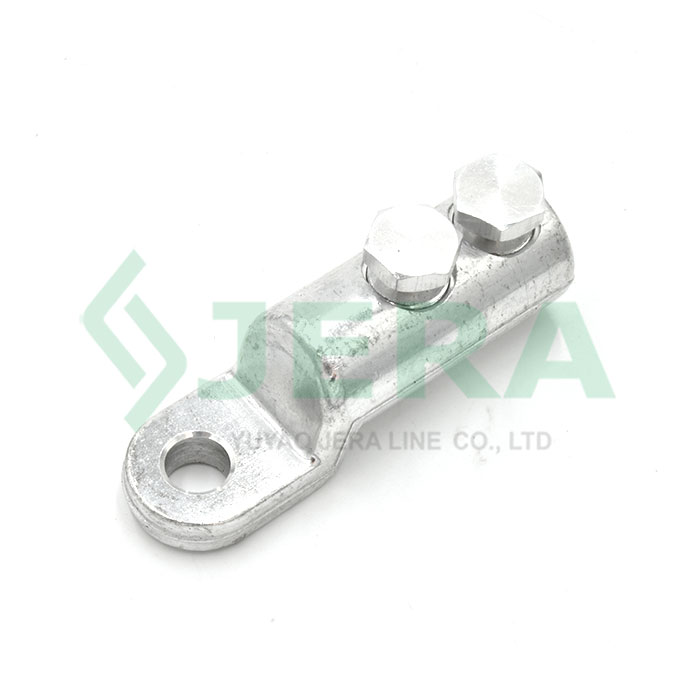

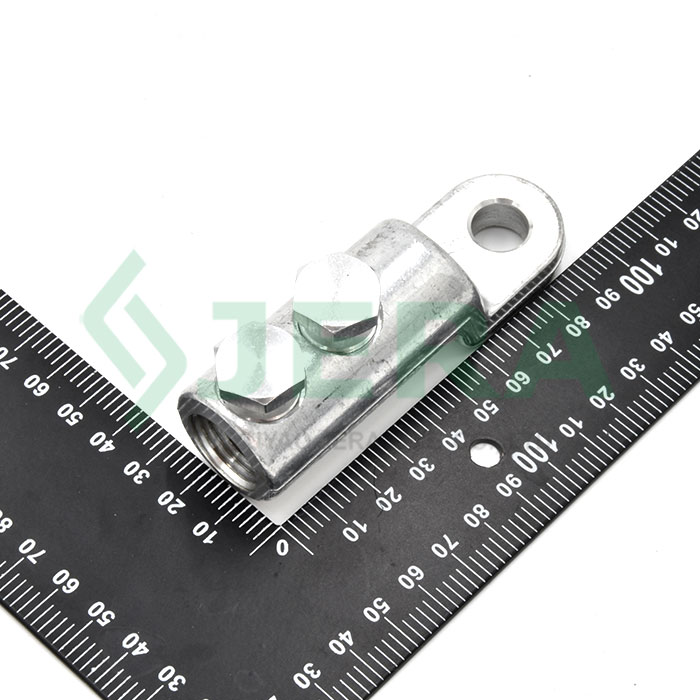

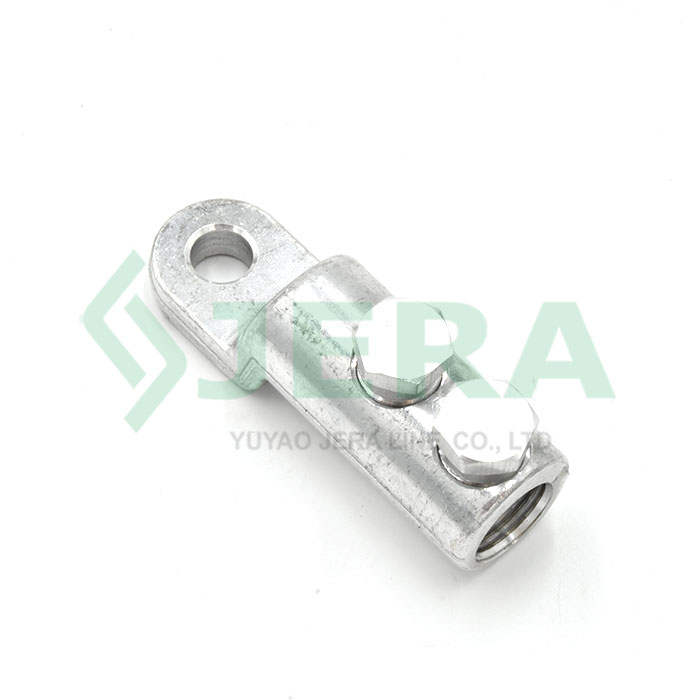

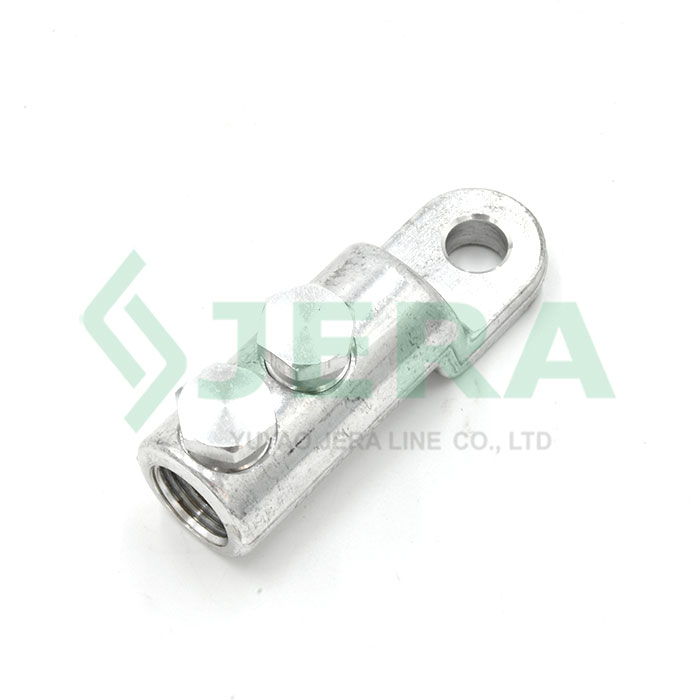

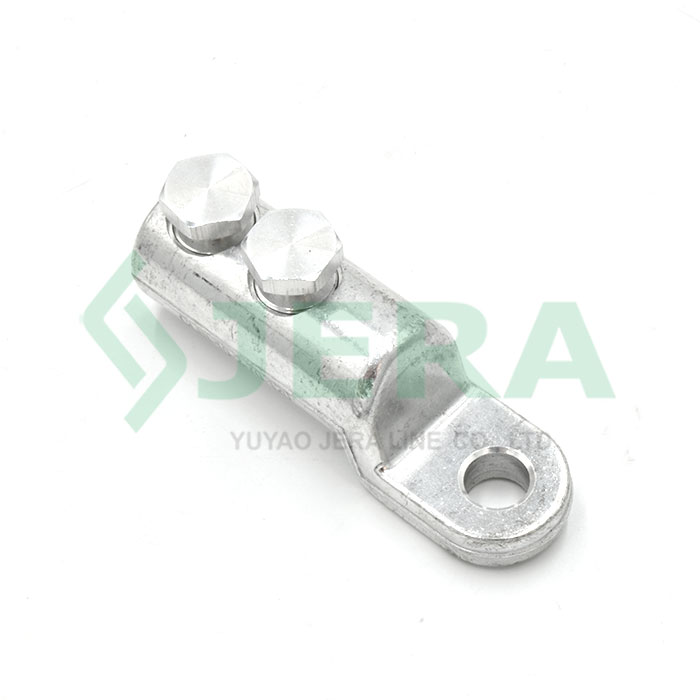

Mechanical Shearhead Electrical cable Lug CLBI-10-2-70-120, is a robust mechanical shearhead cable lug engineered for terminating aluminum conductors in medium-voltage power distribution systems up to 10 kV. Manufactured from high-strength metal alloy, it ensures a durable and secure electrical connection.
Its shearhead bolt mechanism delivers consistent torque without the need for compression tools—tightening with a hex key automatically shears the bolt head at the correct force, ensuring reliable and maintenance-free installation.
Technical specification
Product code
Cable size, mm2
Bolt number
Application cable
CLBI-10-2-70-120
70-120
2
Copper/Aluminum

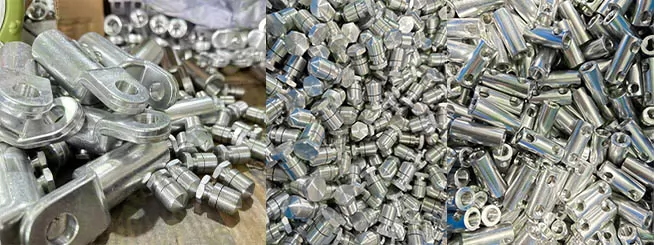

Components and Materials
Mechanical Aluminum termination bolt Lug, CLBI-10-2-70-120is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the mechanical shearhead cable lugconsists of the following main part:
Components
Materials
Body
Aluminum alloy
Shear off torque bolts
Aluminum alloy

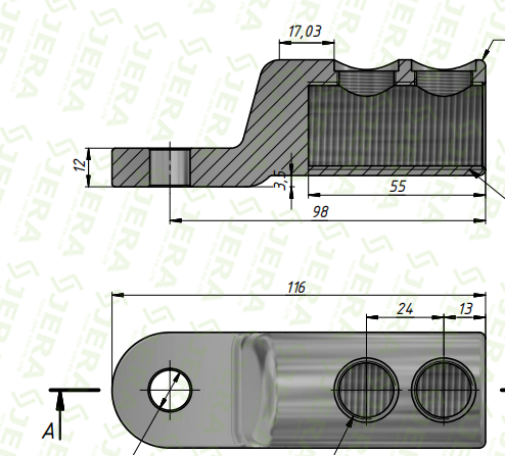

Dimensions
Test
Aluminum Shearbolt Conductor Lug, CLBI-10-2-70-120has passed routine test by Jera line own factory laboratory, if the test report required, Jera Line can provide factory test report which according to international standard lEC-61238-3.

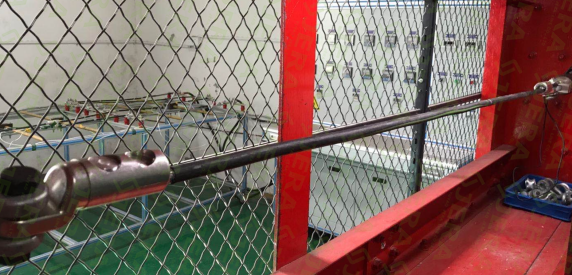

Below is the testing picture: Jera Line operates its own factory laboratory for routine tensile strength testing using a tensile strength machine.
