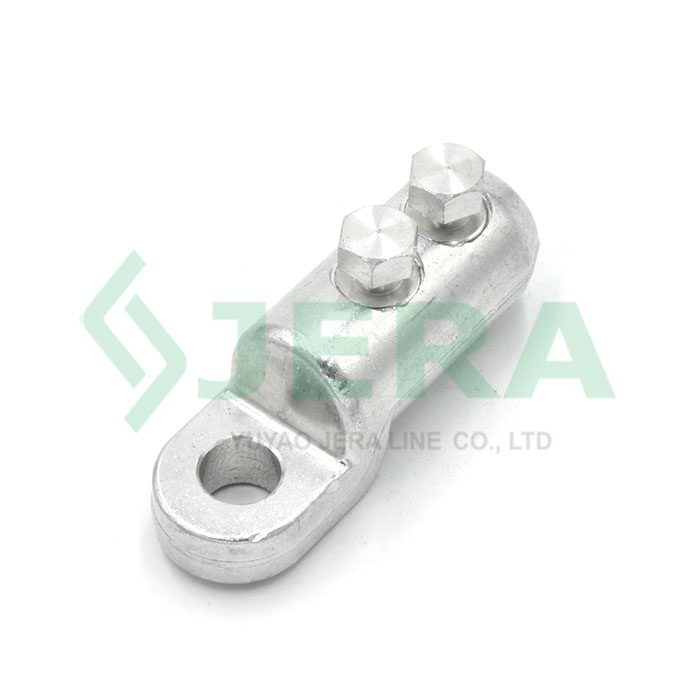

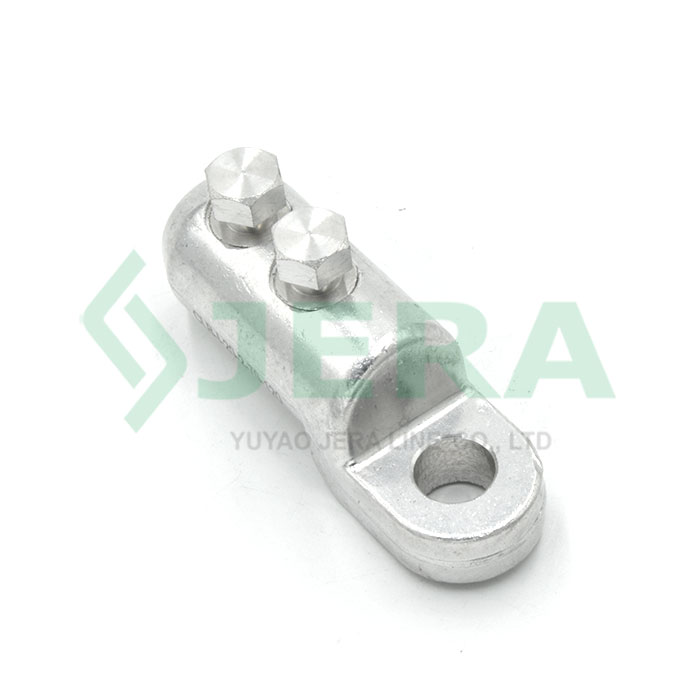

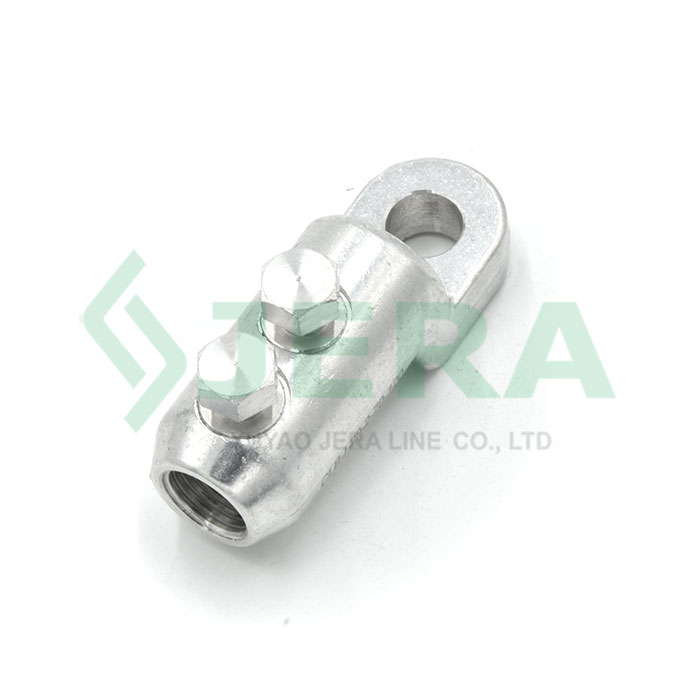

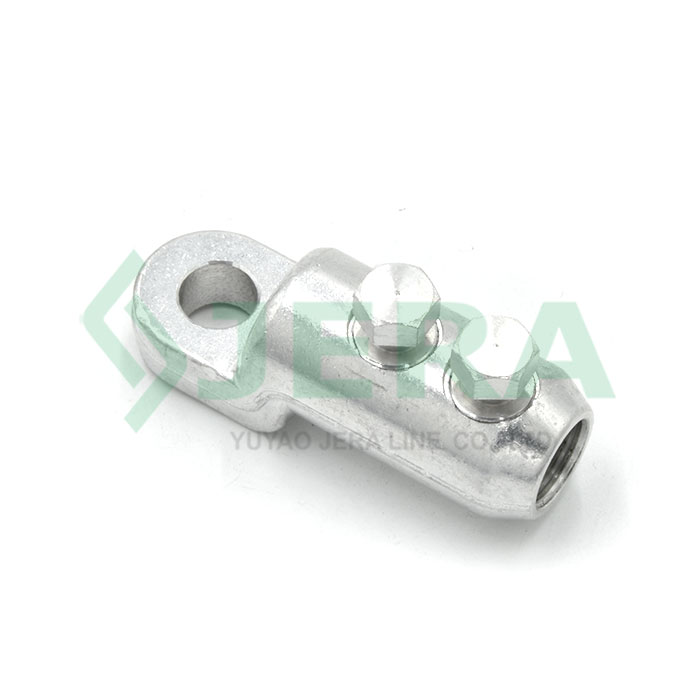

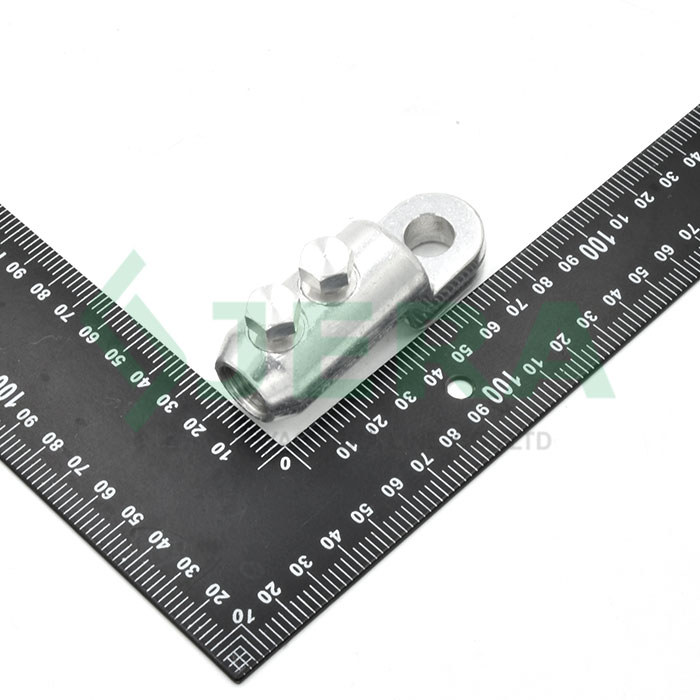

Mechanical Shear off head bolted Cable Lug, СLB-I-20-2-70-120

MV Mechanical Shearhead Terminal Lug,with 2 shear head bolts, suit for range 70-120 mm2 cables up to 36KV, IEC-61238-1-3 type test report, durable material

Features

Easy Operation with a hex key.
Wide cable application range
Durable Material
Universal Design with both solid and stranded cables.
Manufactured according to standard lEC-61238-1-3
Competitive price as factory in China

DESCRIPTION

TEST

REVIEW

Application

Mechanical Shearhead Electrical cable Lug СLB-I-20-2-70-120, also called high-quality mechanical bolted lug, is a terminal cable lug used for connection cables to electrical appliances up to voltage 36KV.

Main Applications:

• Connects cables in electrical substations and distribution panels.

• Provides a secure and reliable connection between large cables and transformers.

• Connects cables to circuit breakers, busbars, and other equipment within switchgear and control panels

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
СLB-I-20-2-70-120	70-120	2	Aluminum

Components and Materials

Mechanical terminal Lug, СLB-I-20-2-70-120 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, the shear-off head mechanism ensures precise torque during installation, preventing over-tightening and guaranteeing a secure, stable connection.

The mechanical shearhead conductor lug consists of the following main part:

Components	Materials
Body	Aluminum alloy, tin covered
Shear off torque bolts	Aluminum alloy

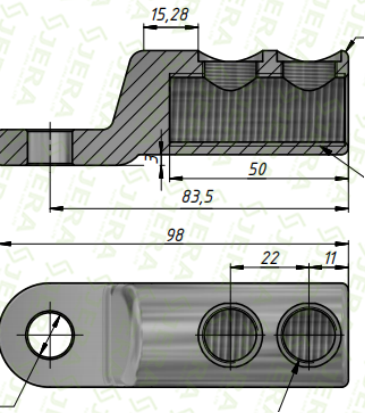

Dimensions

Test

Aluminum Shearbolt Conductor Lug, СLB-I-20-2-70-120 has undergone strictly Electrical and Mechanical testing under the international testing standard IEC 61238-1-3:2018, which conducted by an independent third-party EU laboratory.

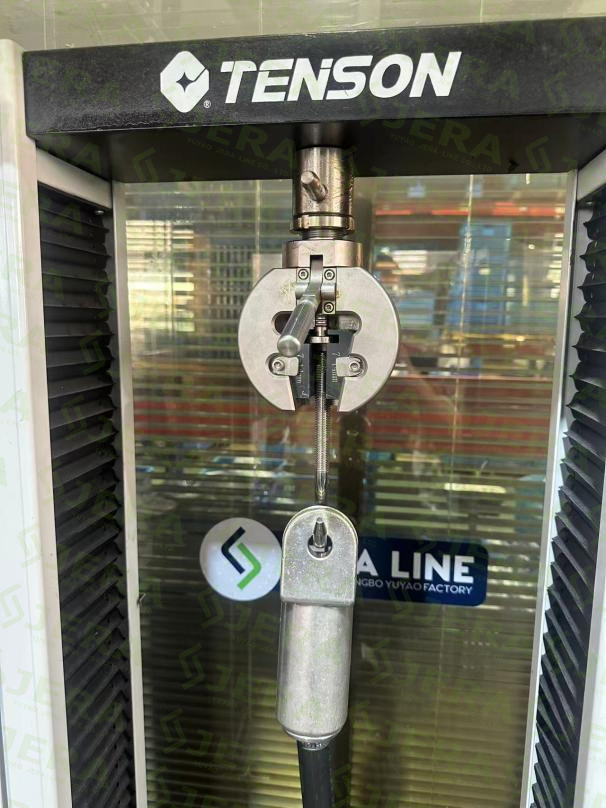

Jera Line also do routine tensile strength testing using a tensile strength machine in own in-house laboratory.
