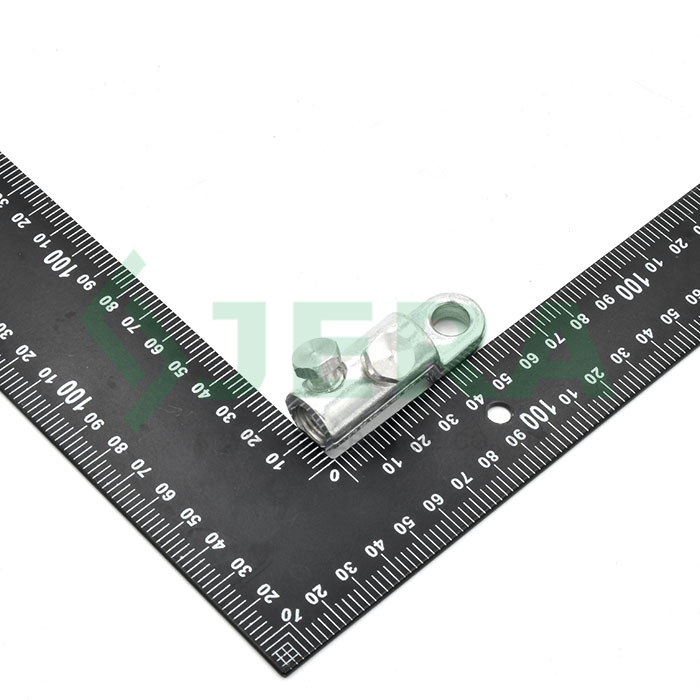

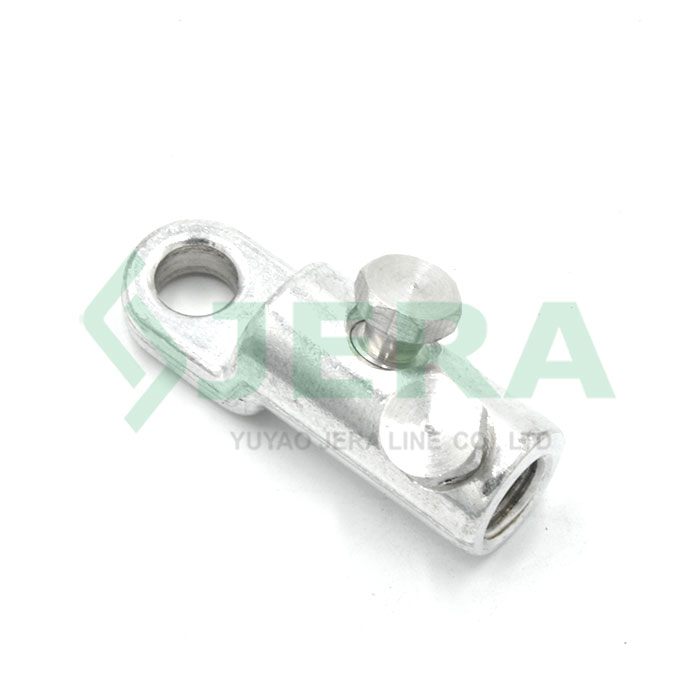

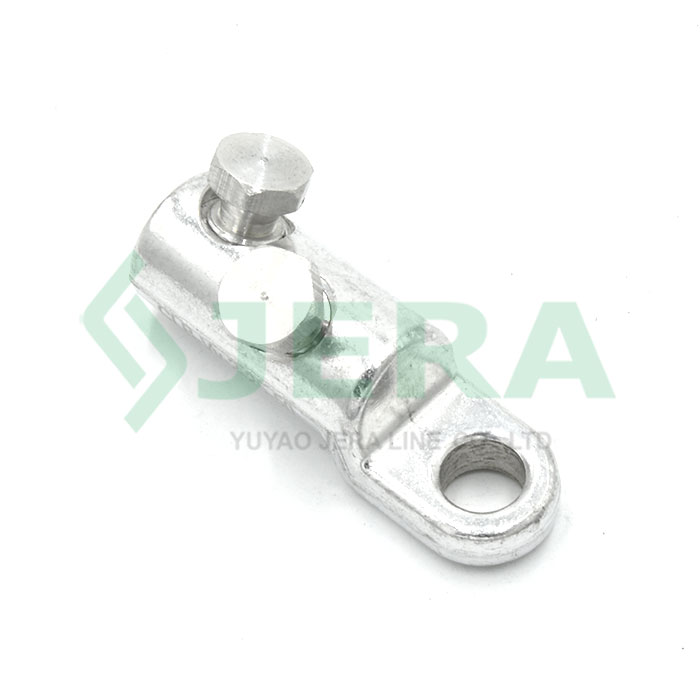

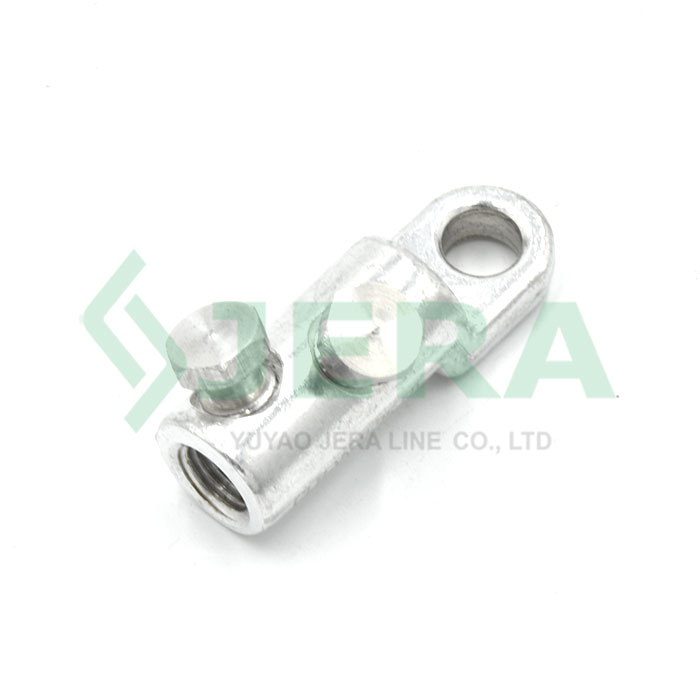

Mechanical Shreahead Electrical Cable Lug CLB-Vy-2-25-50, also called Sheadhead bolt mechanical lug, it is used for termination cables to electrical equipment under voltage 1KV. It’s suitable for both aluminum electrical cable during power line constructions.
Main Applications:
• Electrical installation and Distribution systems:
• Cable connections to terminals, switches, or other electrical components, ensuring a safe and durable connection in the electrical system.
• Grounding Systems: Connects ground wires to grounding rods or other components.
Technical specification
Product code
Cable size, mm2
Bolt number
Application cable
CLB-Vy-2-25-50
25-50
2
Aluminum

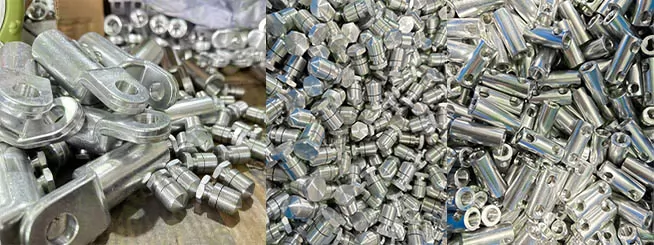

Components and Materials
Mechanical termination Lug, CLB-Vy-2-25-50is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, Shear-off-head bolts lugs and electrical cables jointing process does not require the compression tool with exact size. All required tension force is achieved by shearing off the head of bolt by hex key, which tighten the bolt.
The mechanical lugconsists of the following main part:
Components
Materials
Body
Aluminum alloy
Shear off torque bolts
Aluminum alloy

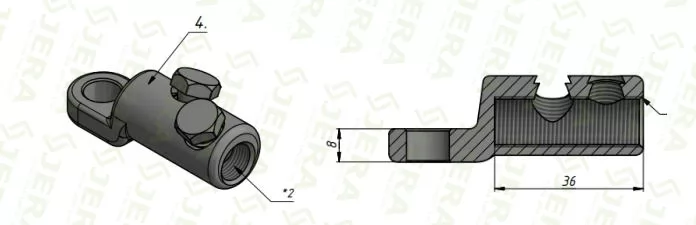

Dimensions
Test
Aluminum Shearbolt electrical cable Lug,CLB-Vy-2-25-50has undergone rigorous Electrical and Mechanical testing under the international standard IEC 61238-1-3:2018, released by an independent third-party laboratory.
Jera Line also operates its own factory laboratory for routine tensile strength testing using a tensile strength machine.
