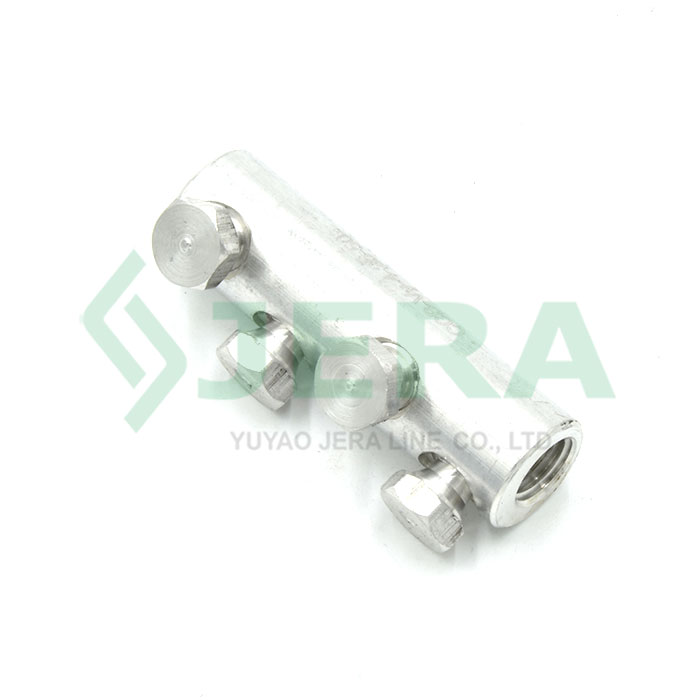

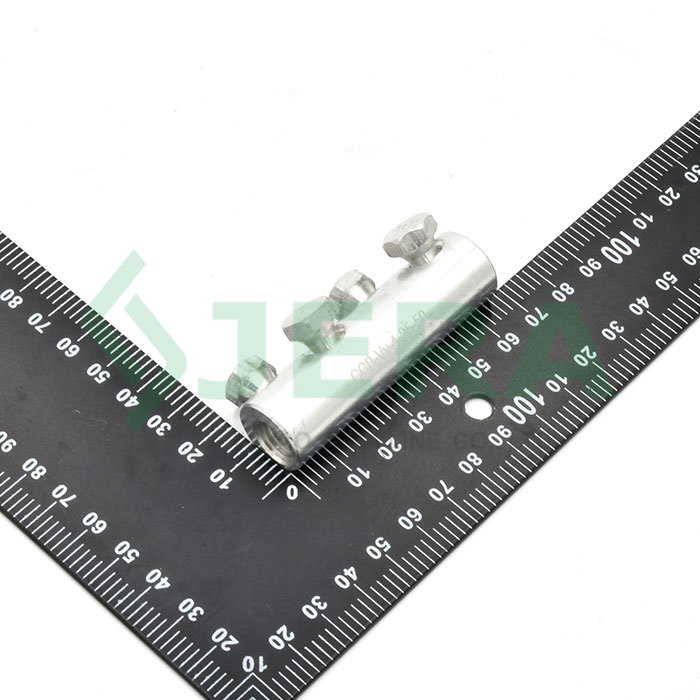

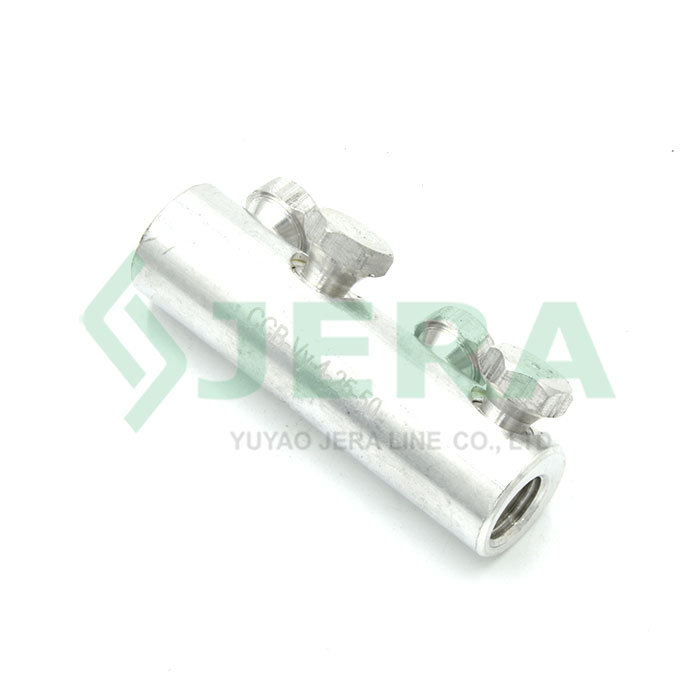

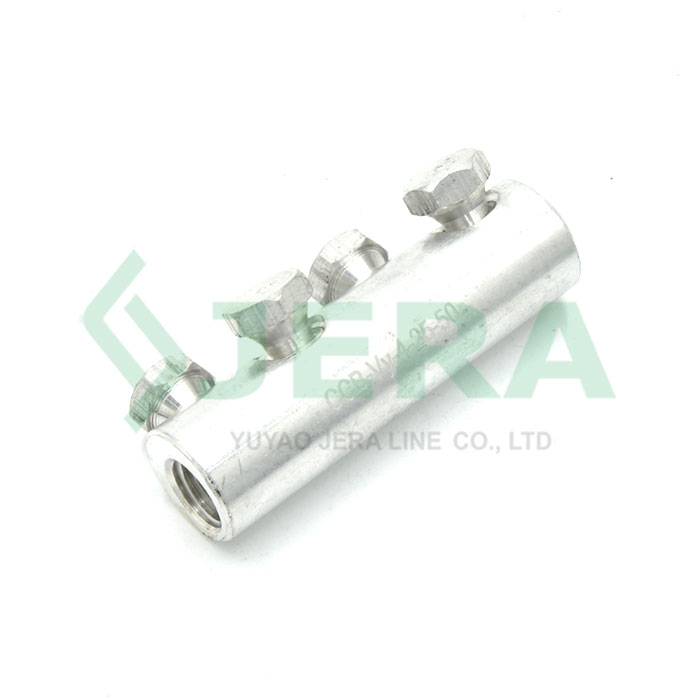

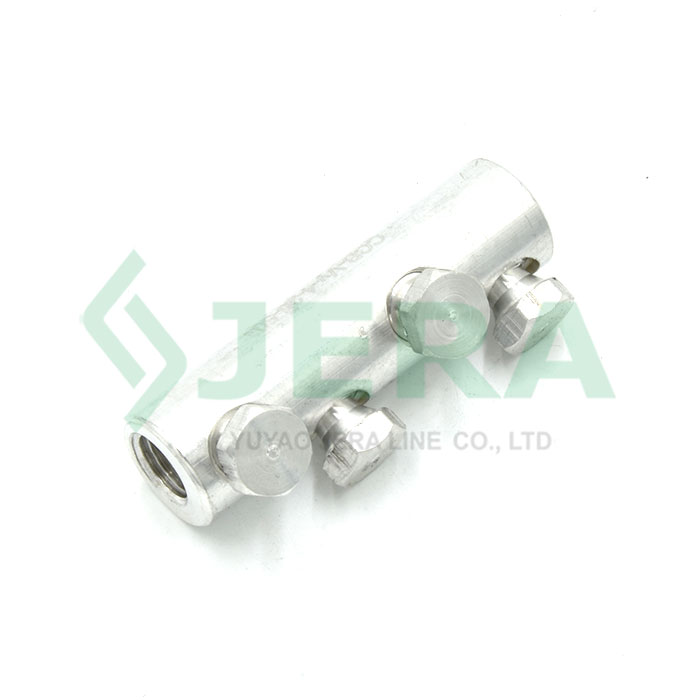

Mechanical Shear bolt Electrical Connector CCB-Vy-4-25-50, is a metal apparatus used for connect both solid and stranded cables to electrical appliances under voltage 1KV. It’s suitable for aluminum power cable during power line constructions.

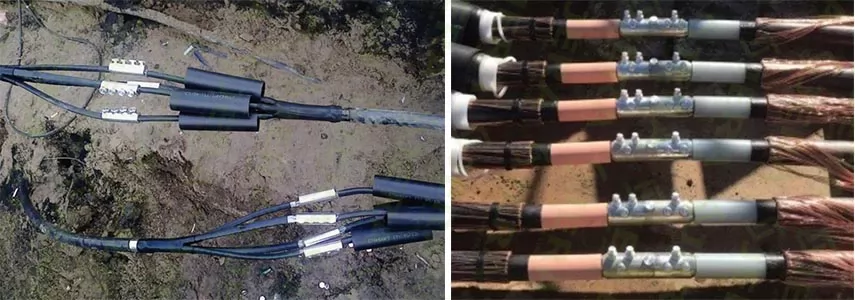

Main Applications:
● lt can be used to secure electrical conductors to transmission or distribution line system
● Substation Equipment: Connects cables or other electrical equipment like transformers, circuit breakers, or switchgear.
● It can be employed to connect ground wires to grounding rods or other grounding components.
Technical specification
Product code
Cable size, mm2
Bolt number
Application cable
CCB-Vy-4-25-50
25-50
4
Copper/Aluminum

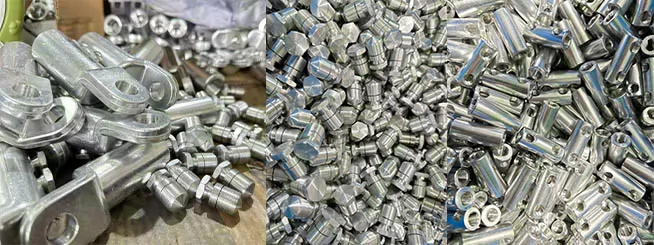

Components and Materials
Mechanical terminal cable connector, CCB-Vy-4-25-50is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, Shearhead bolts lugs and electrical cables jointing process does not require the compression tool with exact size. All required tension force is achieved by shearing off the head of bolt by hex key, which tighten the bolt.
The mechanical LV cable connector consists of the following main part:
Components
Materials
Body
Aluminum alloy, tin covered
Shear off torque bolts
Aluminum alloy

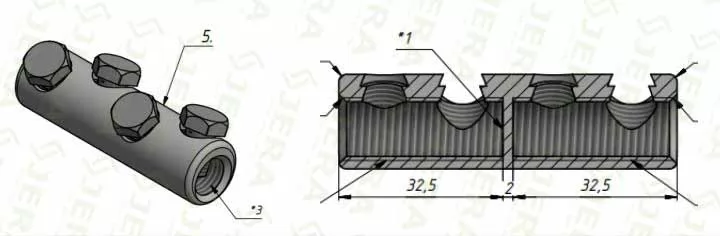

Dimensions
Test
Aluminum Shearbolt Conductor connector,CCB-Vy-4-25-50has past the quanlity tests which conducted in Jera Line in-house laboratory, which comply with international standard IEC 61238-1-3:2018, released by an independent third-party laboratory.

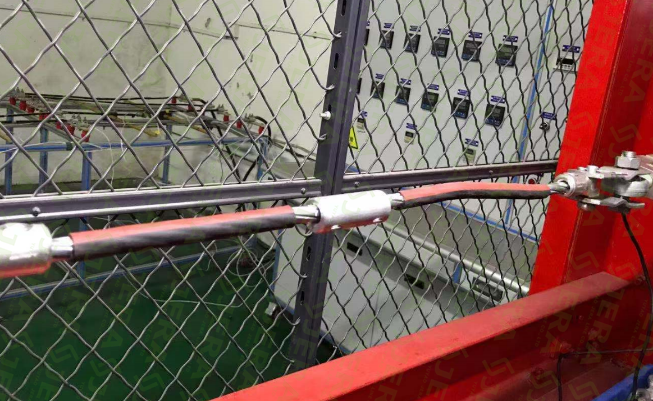

Jera Line also operates its own factory laboratory for routine tensile strength testing using a tensile strength machine.
PRODUCT VIDEO
