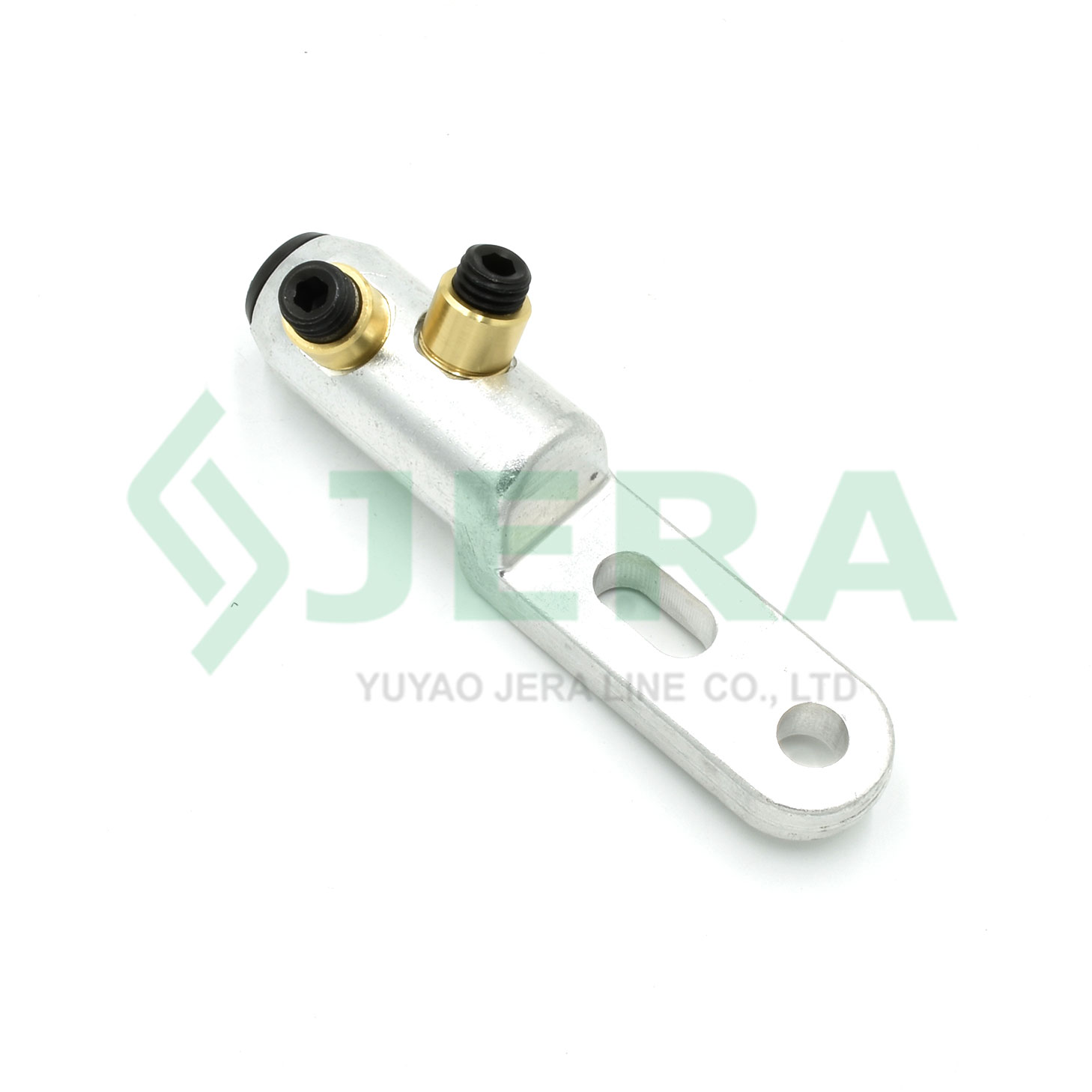

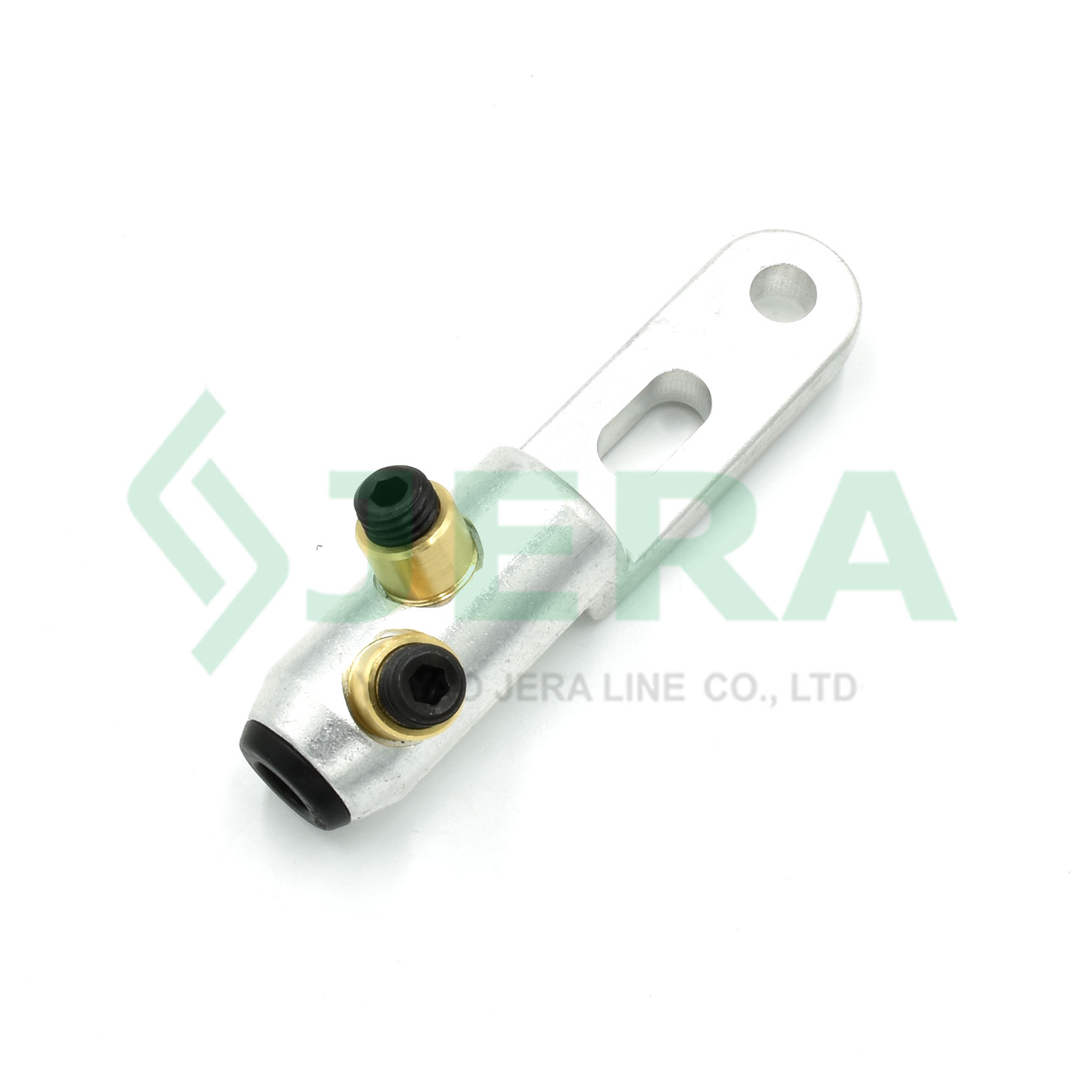

The CLB‑2K‑VzT‑36‑2.S(H)-70‑240 Mechanical Sicon Shearbolt Two‑Hole Lug from Jera Line is engineered for medium‑voltage (MV) power distribution networks, providing a secure, low‑resistance, and long‑lasting electrical connection for 70–240 mm² aluminum and copper conductors.
Featuring stepless shear‑head bolt technology and a two‑hole palm design, this lug ensures stable mechanical fastening, uniform compression, and reliable performance in substations, switchgear, and industrial electrical systems.
As an IEC‑61238‑1 type‑tested manufacturer, Jera Line guarantees international‑standard quality for utility‑grade applications.
The mechanical stepless 2-hole shear bolts lug CLB-2K-VzT-36-2.S(H)-70-240 consists of the following main part:
Components
Materials
Body
Tin Covered Aluminum Alloy
Stepless shear bolts
Brass

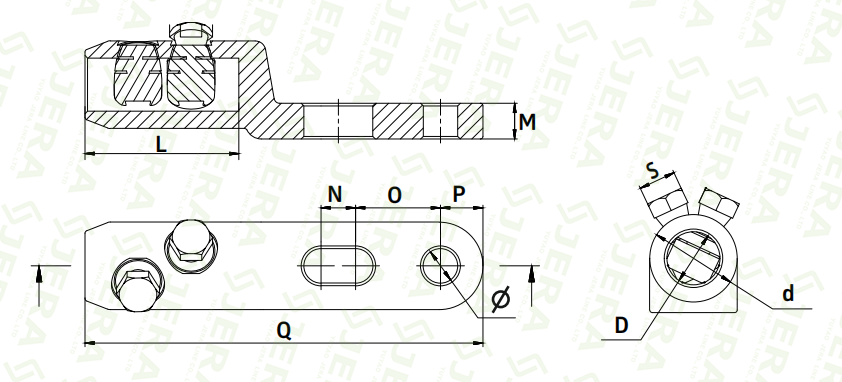

Dimensions
Test

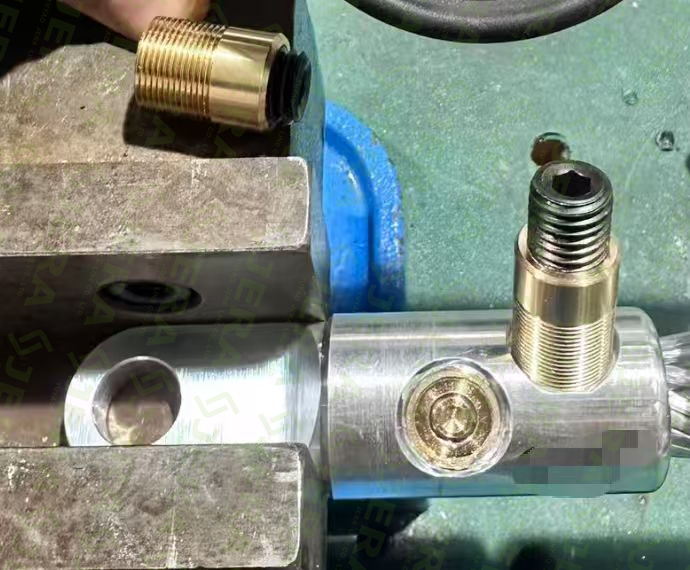

The CLB‑2K‑VzT‑36‑2.S(H)-70‑240 sicon 2‑hole mechanical shearbolt lug undergoes electrical testing and mechanical testing in Jera Line in-house laboratory,
The lug itself had passed IEC 61238‑1 type testing to ensure its electrical and mechanical performance meets international utility standards. These tests verify that the lug performs safely, reliably, and consistently in medium‑voltage power distribution environments.
