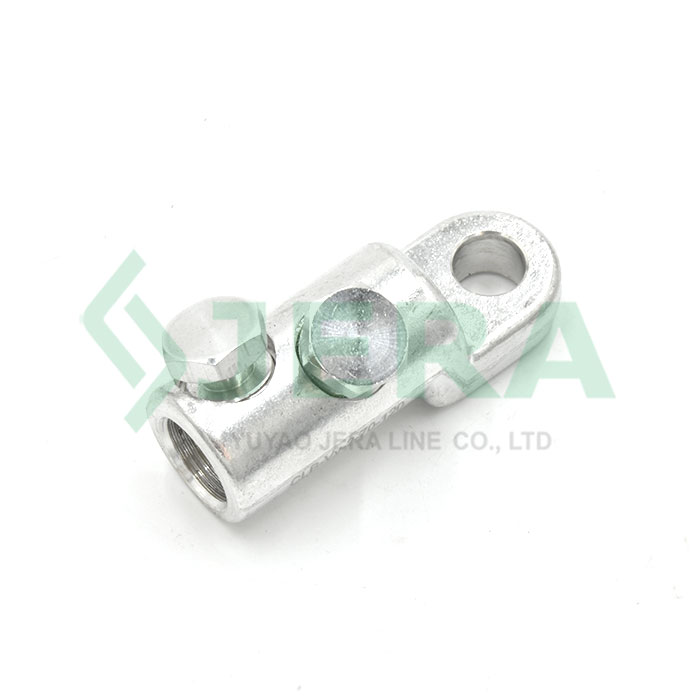

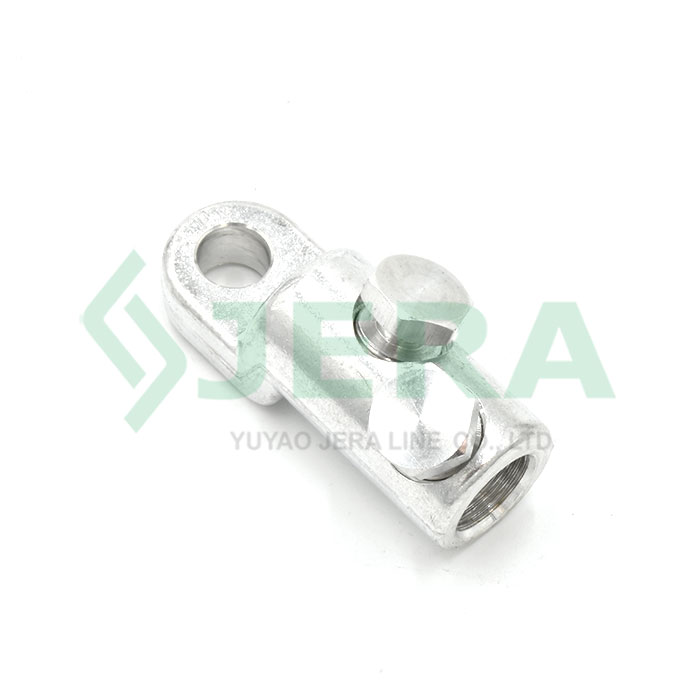

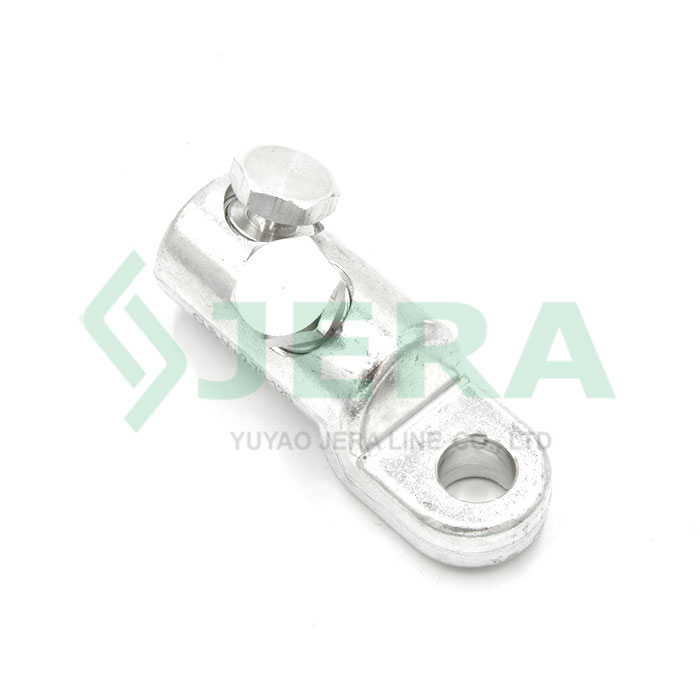

Mechanical Torque Shearhead bolt Lug, CLB-Vy-2-70-120

Mechanical Shearhead Terminal cable lug, 2 bolts, for 70-120 mm2 Aluminum cable usage, durable material, easy operation

Features

Easy Operation: no need particular tools ,shear-head off the bolt by hex key.
Durable Material of aluminum alloy.
Wide Application Range from 70 to 120 mm².
Fit for both solid and stranded cables.
Testing Standard: comply to IEC-61238-1-3.
Factory location in China

DESCRIPTION

TEST

REVIEW

Application

Mechanical Torque Cable Lug, CLB-Vy-2-70-120, also called mechanical aluminum bolt lug, is a metal device used for connection cables to electrical appliances under voltage 1KV. Widely used in LV and MV networks .It’s application for aluminum cable during power distribution systems.

Main Applications:

• Electrical Transmission and Distribution Lines: Secures electrical cables and conductors to the system.

• Substation Equipment: Connects cables or distribution panels to different equipment like transformers, circuit breakers, or switchgear.

• Grounding Systems: Connects ground wires to grounding equipments.

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CLB-Vy-2-70-120	70-120	2	Copper/Aluminum

Components and Materials

Mechanical shearhead cable Lug, CLB-Vy-2-70-120 is produced by a direct factory location in China -- Jera Line, and it is also under Research and Design RnD by Jera Line, Shear-off-head bolts lugs and electrical cables jointing process does not require particular tools with exact size. All required tension force is achieved by shearing off the head of bolt by hex key, which tighten the bolt.

The Mechanical Torque cable lug consists of the following main part:

Components	Materials
Body	Aluminum alloy
Shear off torque bolts	Aluminum alloy

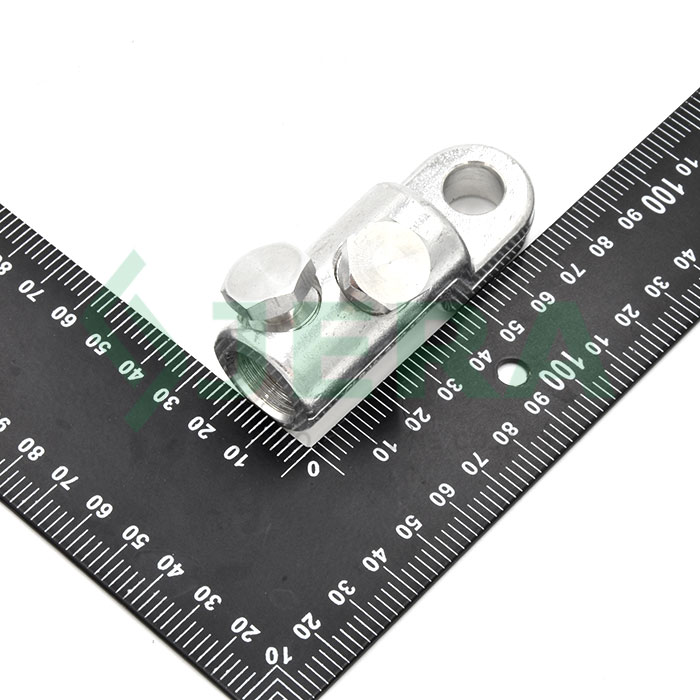

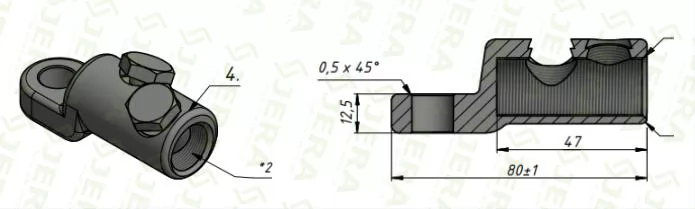

Dimensions

Test

Aluminum Sheahead bot cable Lug, CLB-Vy-2-70-120 has undergone rigorous Electrical and Mechanical testing comply with the international standard IEC 61238-1-3:2018.

Jera Line operates its own factory laboratory for routine tensile strength testing using a professional tensile strength machine.
