When it comes to medium voltage (MV) cable termination, reliability, safety, and cost-effectiveness are non-negotiable. Whether you’re working on underground power distribution, industrial electrical systems, or commercial infrastructure, the right cable lugs can make all the difference in ensuring stable connections and long-term performance.
Mechanical MV shear bolt lugs are specialized electrical connectors designed for medium voltage applications (typically 1kV–35kV), engineered to create secure, low-resistance connections between cables and equipment. The 16–95mm² specification refers to the range of cable cross-sectional areas these lugs can accommodate, making them versatile for a wide variety of MV cable termination needs from small scale industrial setups to large underground power projects.
Unlike standard lugs, shear bolt lugs feature a unique design: when the bolt is tightened to the correct torque, the excess bolt head “shears off,” ensuring consistent, uniform clamping force every time. This eliminates human error in installation, reduces the risk of loose connections (which can lead to overheating, arcing, or equipment failure), and ensures compliance with international electrical standards (such as IEC, ANSI).
For applications like underground power distribution—where cables are exposed to moisture, soil corrosion, and mechanical stress—these lugs are indispensable. They provide a weather-resistant, durable connection that stands up to harsh environmental conditions, minimizing maintenance costs and downtime.

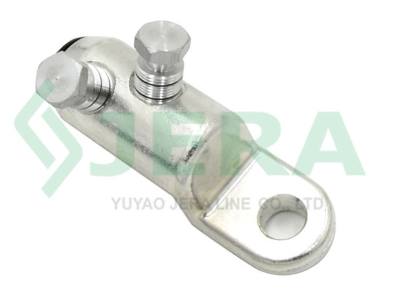

The MV Mechanical Shear Head Bolted Lug,CLBVzT-36-2-16-95, is manufactured by the Chinese factory Jera Line and is designed to provide reliable and efficient connections for medium voltage power systems. Engineered with precision, this lug features a shear head bolt mechanism that ensures correct tightening torque, eliminating the need for specialized tools and reducing installation errors.
Made from high-quality materials, it offers excellent electrical conductivity, mechanical strength, and resistance to corrosion, making it suitable for demanding underground power distribution applications. The product is compatible with a wide range of cable sizes, ensuring flexibility for different project requirements.
Technical Specificaion:
|
Product code |
|
|
Cable size,mm2 |
16-95 |
|
Bolt Number |
2 |
|
Torque, N*m |
18-22 |
Features
Applications
Mechanical Bolted Lug Connector CLBVzT-36-2-16- 95,is a versatile and reliable solution for connecting cables to distribution equipment in medium voltage (MV) systems. Designed for use with aluminum or copper cables ranging from O.4 to 36kV, this connector ensures secure and efficient power distribution.
Key Applications:
Selecting the right supplier for mechanical aluminum shear head terminal Lugs is just as important as choosing the product itself. Reliability, compliance, and long-term performance all depend on the manufacturer’s expertise and quality standards.
Whether you’re a distributor, contractor, or end-user, we can provide the right MV shear bolt lugs for your project. Contact us today to discuss your requirements, request a sample, or get a competitive quote. Let’s build a reliable, long-term partnership together.
