Overvoltage and overload protection made by fuse holder FHp-450

The FHp-450 fuse holder is designed to provide reliable Overvoltage and overload protection for electrical circuits. It accommodates replaceable fuses, enabling swift element replacement and continued protection after a fault. While its primary function is overcurrent protection, it can contribute to system safety by isolating the load from fault currents, supporting broader protection schemes that may include overvoltage devices.

This Low voltage fuse holder device, produced by Jera Line, operates based on the precise function of a thermal bimetallic strip, ensuring stable and automatic current control.

How overhead line fuse holder Fhp-450 Works

• Normal operation

1. A fuse element (fuse link) inside the holder is connected in series with the protected circuit.
2. Current flows through the fuse element to power the downstream load.

• Overcurrent event

1. When fault current or overload exceeds the fuse’s rated current, the fuse element heats up due to I²R losses.
2. The fuse element melts or opens the circuit at the designed current rating.

• Interruption and isolation

1. The opening of the fuse element breaks the circuit, interrupting the fault current.
2. The fuse holder physically retains the blown fuse and may provide a visible indication that the fuse has operated (depends on variant).

• Fault handling

With the fuse blown, the protected path is isolated. Upstream protection (e.g., circuit breakers) may be required to restore power after inspecting/ replacing the fuse.

• Re-fusing

A replacement fuse element is installed in the holder, restoring protection for the circuit after fault clearance.

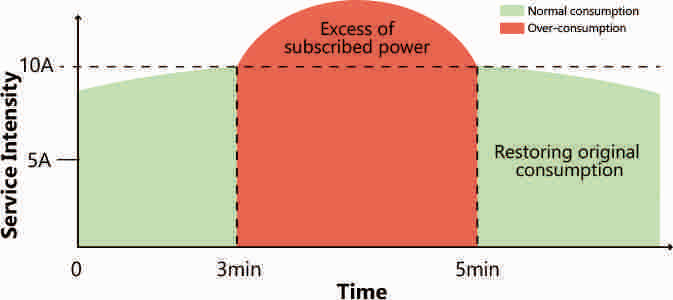

LV ABC fuse switch produced by Jera Line factory

Key Features:

• Reduce the consumption of current
• Limits the maximum current flow
• Fraud prevent protection
• Anti vandal safety
• Application cycles: from 5000 to 15000
• Compatible with 22*58 fuse Link

Applications:

The insulation piercing fuse holder is a device for Overvoltage and overload protection, which limits the current of connection,due to a function of ehermal bimetallic strip. The switch is integrated in a fuse that simplify its outdoor application.

• Plant distribution boards: Main or feeder protection and switch-off capability for sections of a plant.
• Electrical distribution cabinets: Localized protection with the ability to manually isolate a circuit for maintenance.
• Motor control centers (MCCs): Protected feeders to motors with overload and short-circuit protection plus a means to disconnect.
• Industrial and commercial buildings: Main distribution boards, subpanels, and critical loads requiring reliable protection plus visible isolation.
• Renewable energy interfaces: Protected DC/AC feeders where a fuse-switch arrangement provides both protection and a clear disconnection point.

Why Choose Jera Line as Your Fuse Holders Manufacture?

• Direct Factory:

Jera Line is a direct manufacturer with its production facility in China, which allows it to eliminate middleman-related costs.

• Great Quality and Long-lasting Durability:

Jera Line’s Fuse Holders are made for long-term usage and only need little maintenance.

• Global Trade Experience

Jera Line has established good cooperative relationships with trading partners worldwide, and its products have been exported to more than 30 countries.

• Professional Production Equipment

Jera Line has over 5000㎡professional production equipment, including moulding and tooling workshop, plastic injection moulding workshop, assembly workshop, and press forming workshop.

• Reliable Product Quality

NFC-33020 third party type test report: A globally recognized standard published by the international organization for Standardization.

• OEM and ODM

Jera Line, we provide Customization Options per project requirements, we can do product development, laser marking and carton box stickers based on customer logoes.

• Initial Product Guarantee

For any order started with Jera Line, any customer has an initial product guarantee of 5 years.

• Non-MOQ for the first order

Jera Line sincerely looks forward to cooperating with customers worldwide and is confident in establishing long-term partnerships with you. Therefore, we don’t set a MOQ for our first order.

• Speedy Reaction

Jera Line delivers outstanding customer service, responding promptly to whatever questions customers may have.

• Competitive Price

Jera Line is an integrated factory combining manufacturing and sales, offering highly competitive prices and dedicated and sincere service .

Conclusion

Overvoltage and overload protection made by fuse holder FHp-450, While its primary role is overcurrent protection, the device also enhances overall system safety by isolating the load from fault currents.

For more information, please feel free to contact us —we’re here to provide professional solution!
