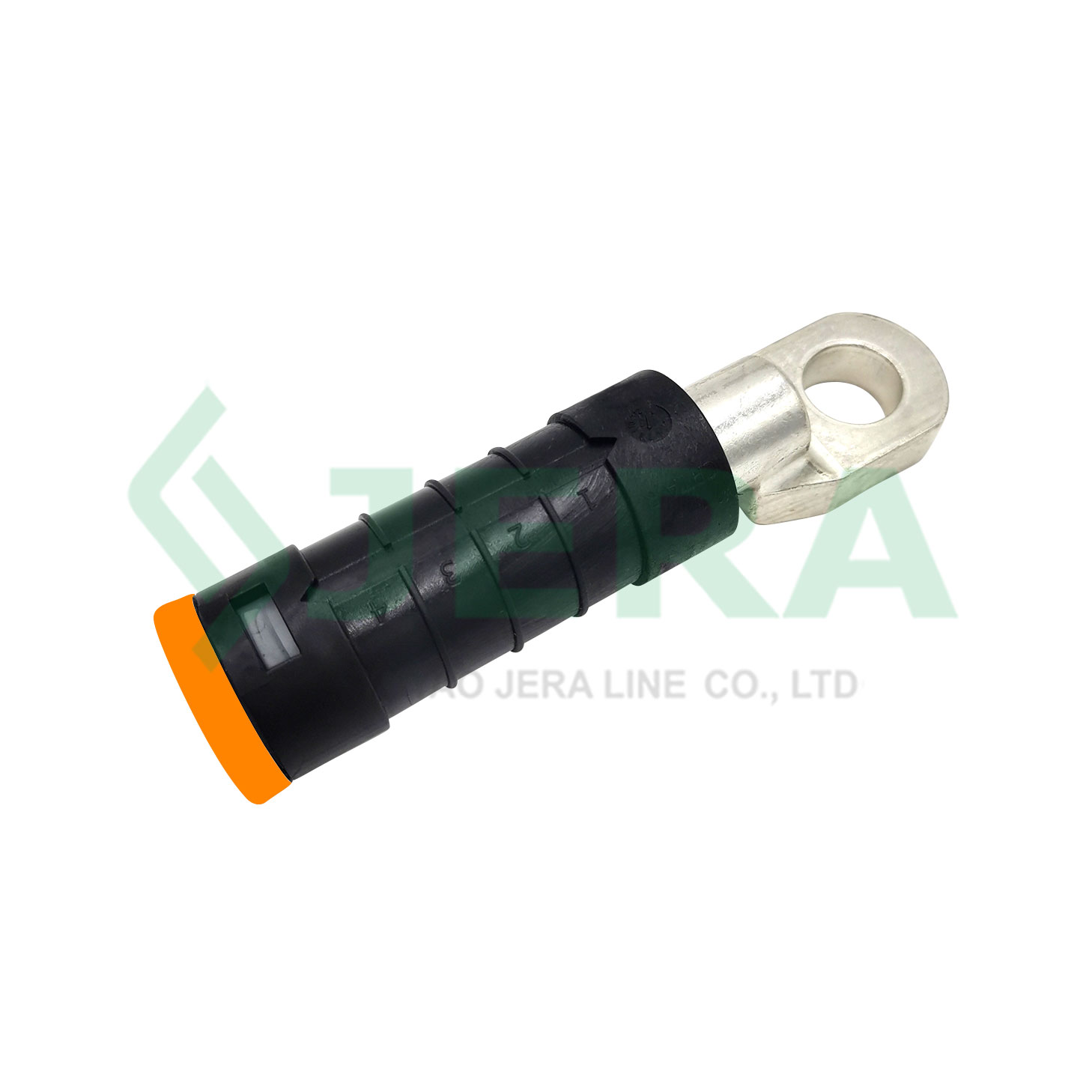

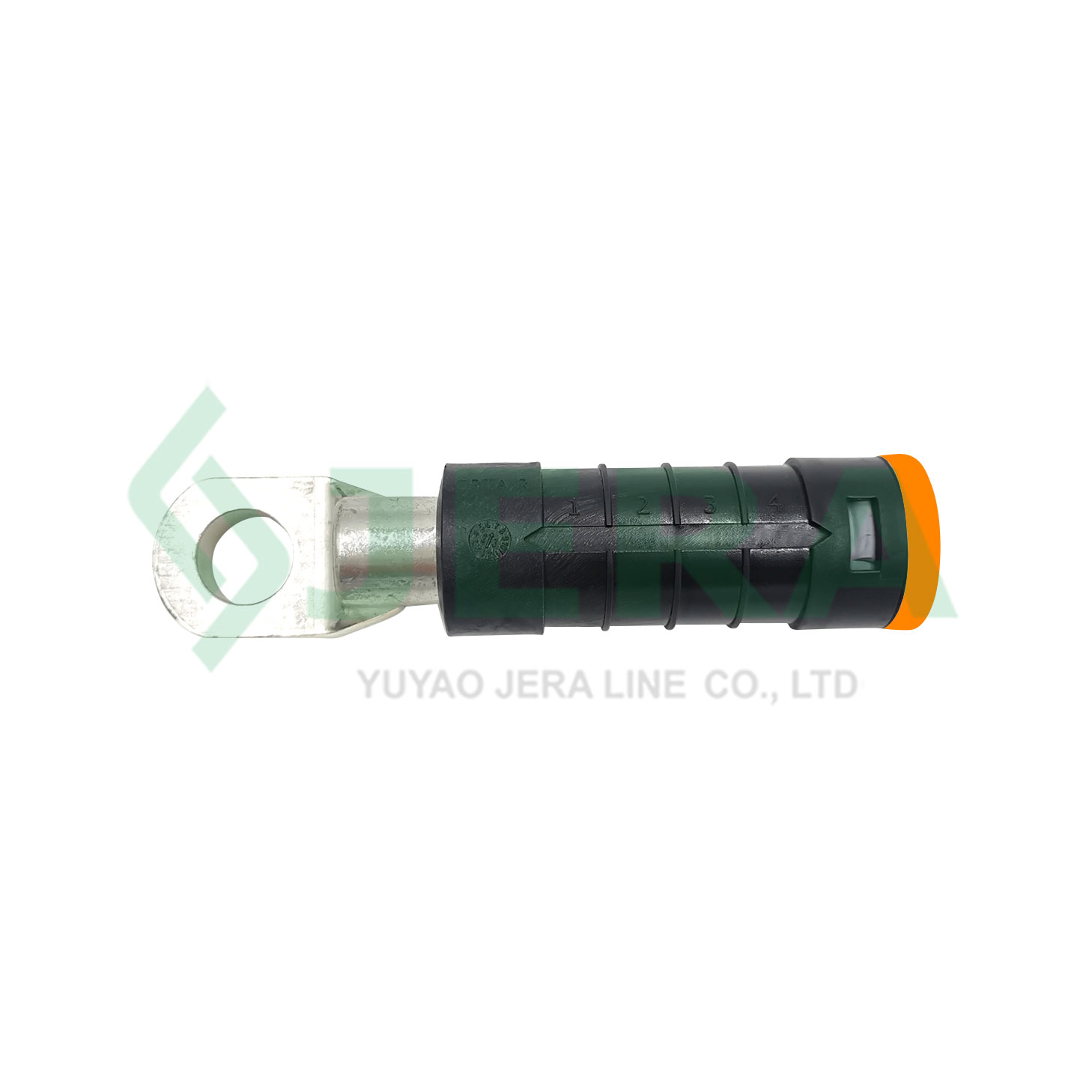

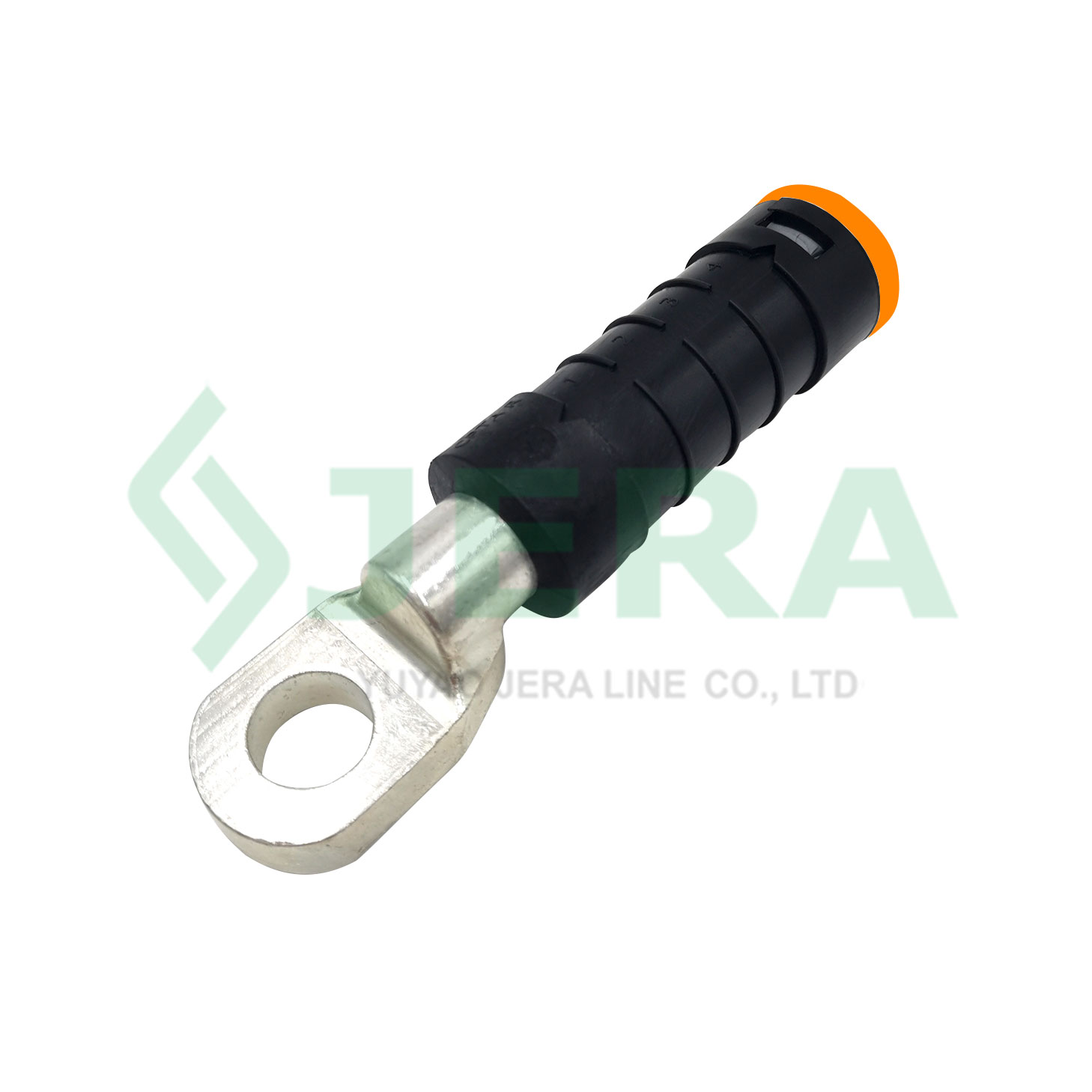

Pre-insulated cable lug CPTA-25-LX-E173

Pre-insulated electrical lug, for 25mm²conductor, Tin covered Al material, for both Al and CU cable usage, outdoor waterproof - compatible

Features

Easy installation with crimping tool E173
Tin - covered aluminum alloy main body, suitable for both aluminum (AL) and copper (CU) conductors
Pre-insulated design, no need for extra insulation
Has been proven to be waterproof, suitable for outdoor and underground usage
UV-resistant polymer insulation sheath ensures high resistance to UV radiation
Competitive price, factroy location in China.

DESCRIPTION

TEST

REVIEW

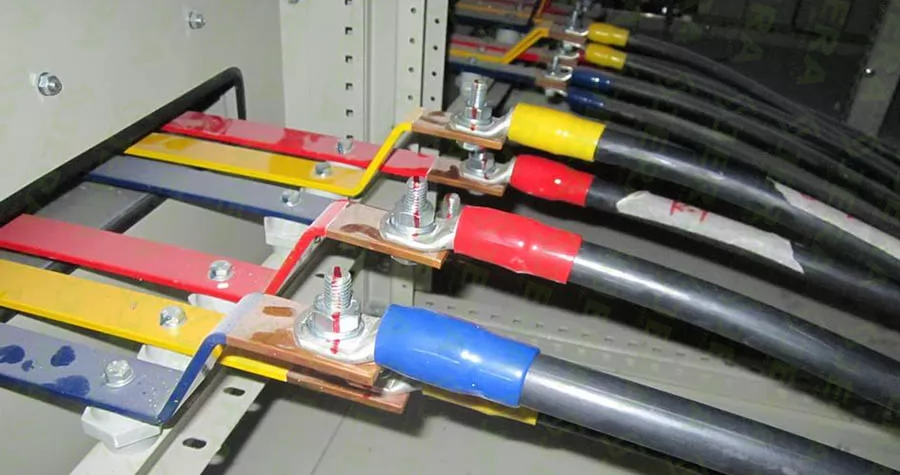

Application

Pre-insulated electrical lug also called terminal isolated type lug, it is a key component used in electrical connections to ensure a reliable connection between cables, terminals, or other conductors. It is typically used in:

power distribution and transmission;

commercial/residential wiring;

renewable energy installations.

Technical specification

Product code	Cable size, mm2	Length L,mm	Crimping Tool	End cup color
CPTA-25-LX-E173	25	101	E173	Orange

Components and Materials

Pre-insulated cable terminal is produced by Jera Line, a leading manufacturer from China with over 5000mm²facility areas. The pre-insulated wire lug is made from the following components:

Components	Materials
Body	Tin covered Aluminum Alloy
Insulation	UV resistance Polypropylene
End cap	UV resistance Polypropylene

Dimensions

Test

The pre-insulated crimped cable lug CPTA-25-LX-E173 has been subjected to Mechanical properties & performance validation, carried out using professional laboratory testing equipment.

Here is the example for Crimping test:
Test scope: Apply the CPTA-25-LX-E173 with the power cable of 25 mm2 size, inspect if there will be any breaking of plastic body after E173 crimping tool usage. Applied according to manufacturer instructions following to 1, 2, 3 crimping zones.
