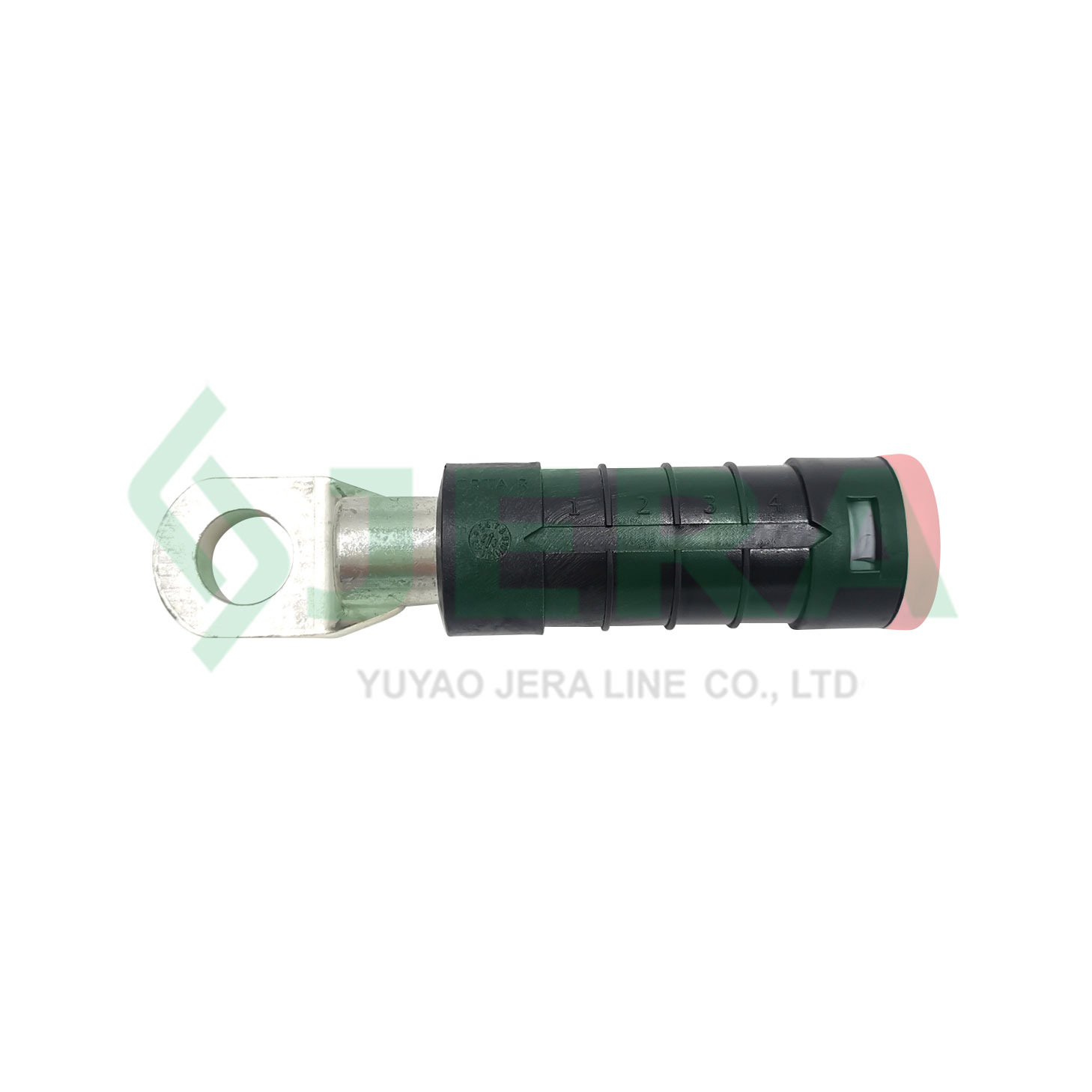

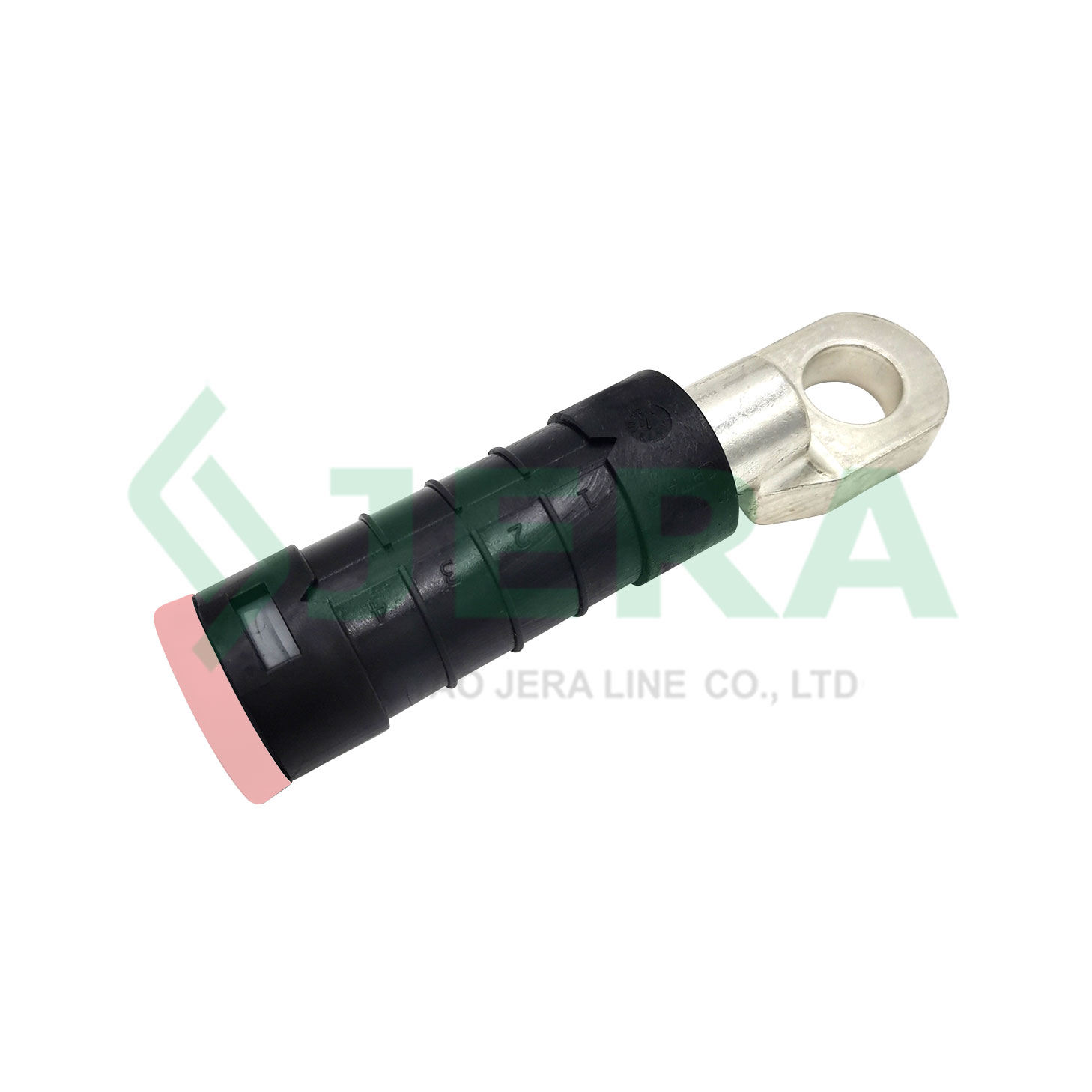

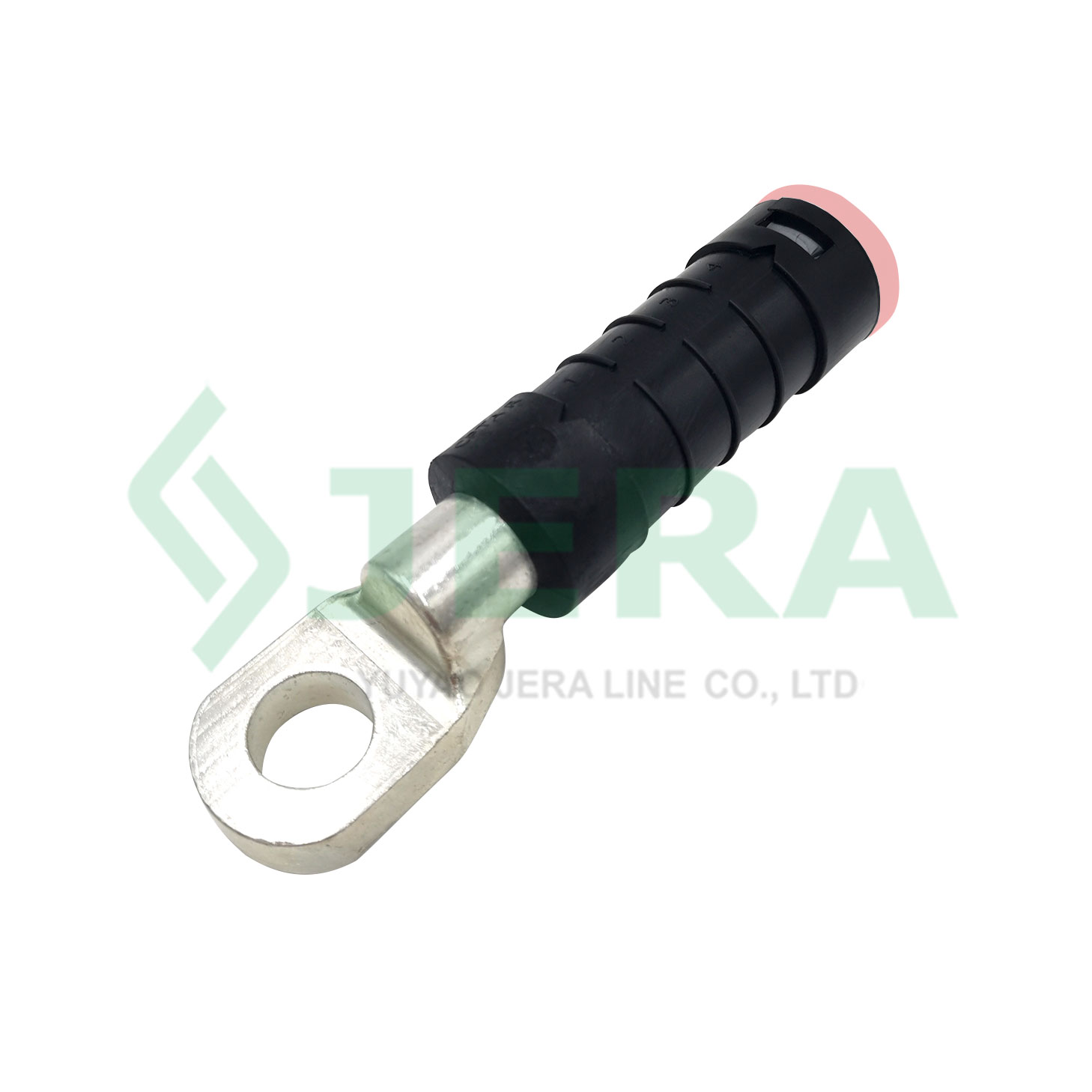

Pre-insulated cable terminal lug CPTA-120-LX-E215

Pre-insulated cable terminal lug, Tin coated Al lug, UV-resistant sheath, waterproof, for 120mm²AL and CU cables

Features

Used with crimping tool E215 and can be install by one person
Tin - coated Aluminum Alloy lug and UV-resistant polymer sheath ensure a high corrosion resistance and are suitable for harsh environments
Clear and precise product markings enable quick identification of specifications
Ensures a quick and reliable connection
Offered directly by the factory at a competitive price

DESCRIPTION

TEST

REVIEW

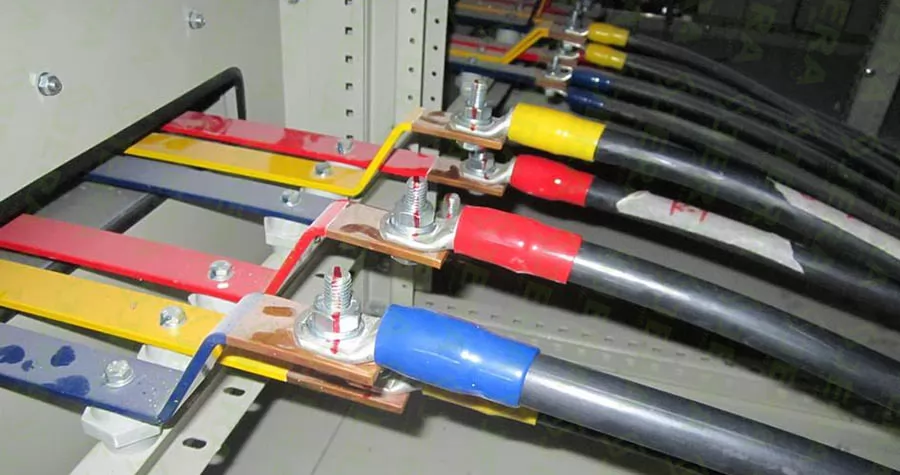

Application

Pre-insulated wire lug also known as pre-insulated cable terminal lug, its main function is to securely connect cables to electrical equipment or other conductors while ensuring insulation to prevent electrical leakage, short circuits, and accidental contact. They are mostly used in:

Low-Voltage (LV) Distribution Networks

Renewable Energy Power Systems

Power System Maintenance and Retrofitting

Industrial Applications

Technical specification

Product code	Cable size, mm2	Length L,mm	Crimping Tool	End cup color
CPTA-120-LX-E215	120	101	E215	Pink

Components and Materials

Pre-insulated crimped cable lug is made by Jera Line, located in China. Jera Line manufactures over 95% of its products on-site. The components of crimping terminal lug are as follows:

Components	Materials
Body	Tin covered Aluminum Alloy
Insulation	UV resistance Polypropylene
End cap	UV resistance Polypropylene

Dimensions

Test

The pre-insulated lug CPTA-120-LX-E215 has been tested for Mechanical properties & performance validation using professional laboratory testing equipment.

Here is the example for Crimping test:
Test scope: Apply the CPTA-120-LX-E215 with the power cable of 120 mm2 size, inspect if there will be any breaking of plastic body after E215 crimping tool usage. Applied according to manufacturer instructions following to 1, 2, 3 crimping zones.
