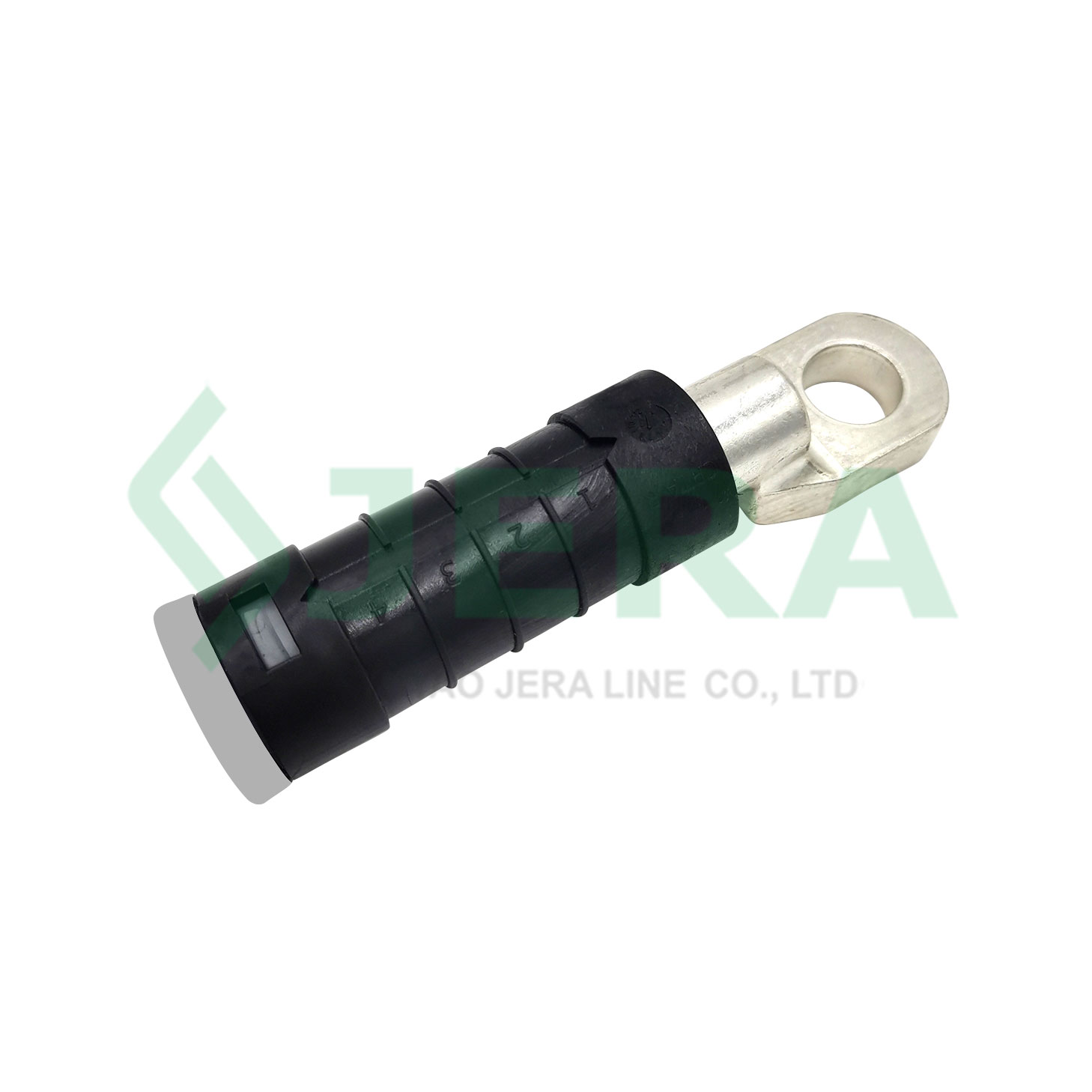

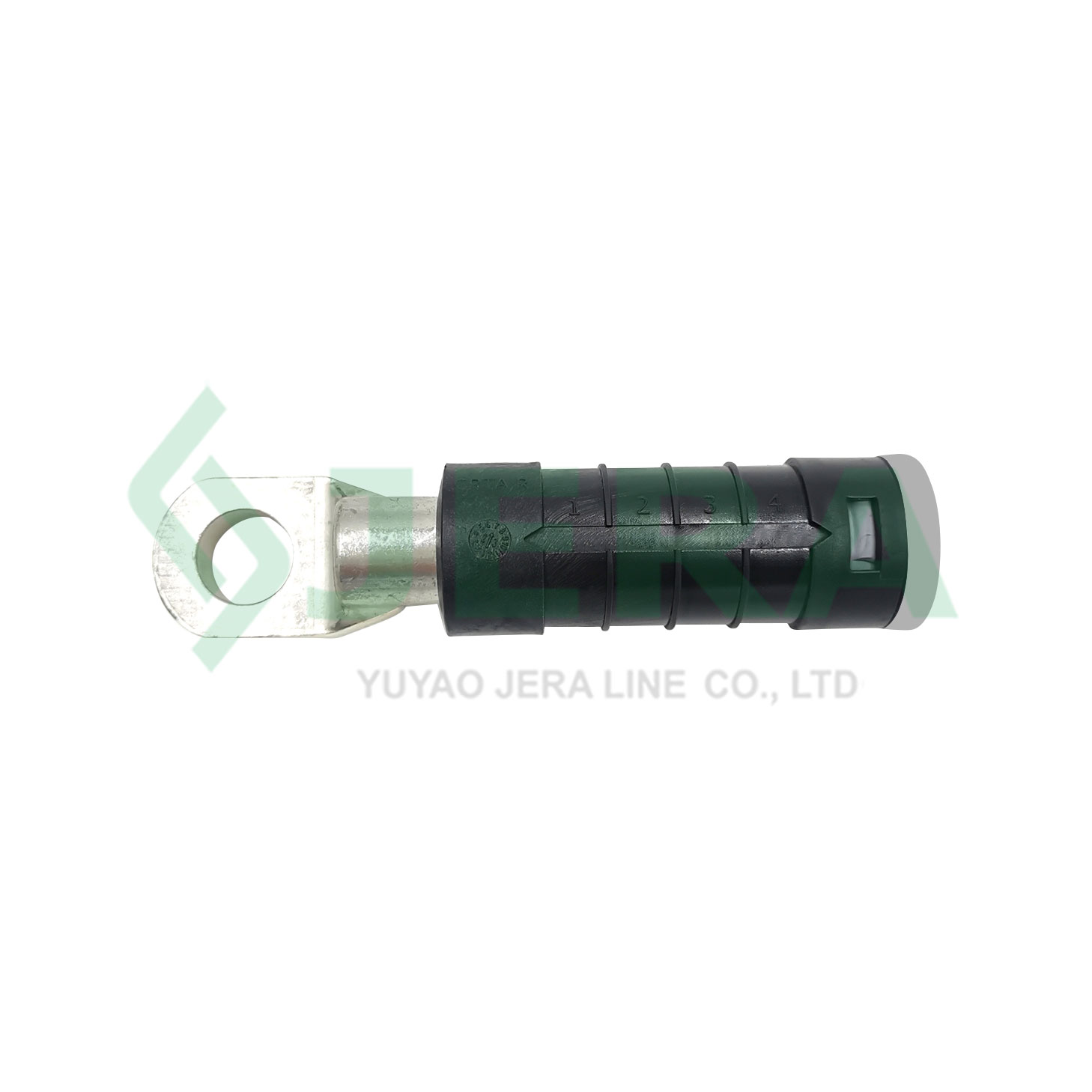

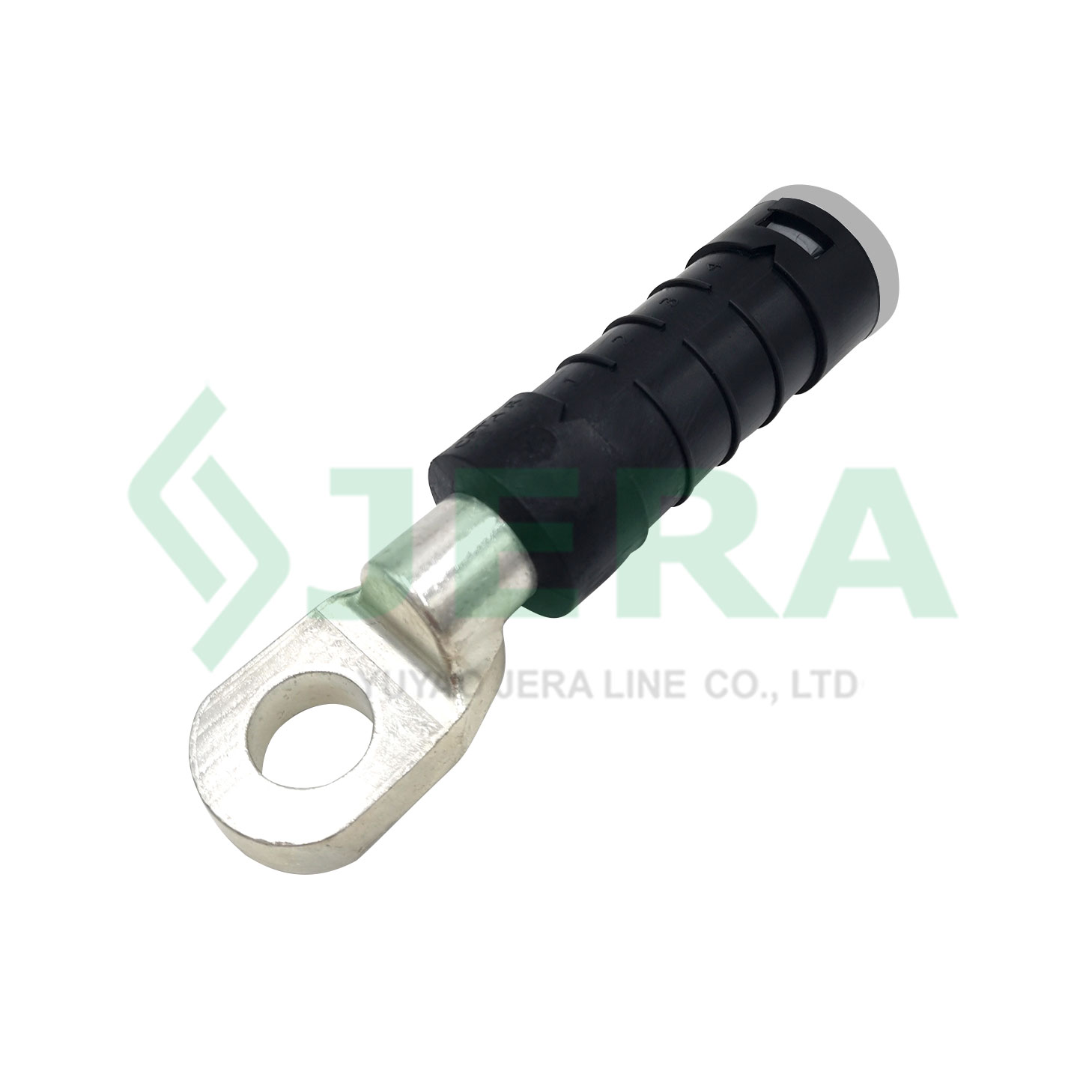

Pre-insulated electrical lug CPTA-95-LX-E215

Terminal crimping cable lug, for 95mm²conductor, Tin covered Al body, for AL and CU conductors, waterproof design

Features

Using crimping tool E215 for easy-installation
Tin - coated Aluminum Alloy increases corrosion resistance
UV-resistant polymer sheath for pre-insulation
Clear and definite product markings facilitate the quick recognition of specification
Great electrical performance with reliable quality
Competitive price, factroy location in China.

DESCRIPTION

TEST

REVIEW

Application

Pre-insulated cable lug also called crimping terminal lug, are used to connect cables to electrical equipment while providing insulation to prevent electrical leakage, short circuits, or accidental contact. They are typically used in Low-Voltage (LV) Distribution Networks, Renewable Energy Power Systems, and Power System Maintenance and Retrofitting.

Technical specification

Product code	Cable size, mm2	Length L,mm	Crimping Tool	End cup color
CPTA-95-LX-E215	95	101	E215	Grey

Components and Materials

Terminal isolated type lugs is made by Jera Line, a leading supplier from China, with over 95% of products produced on-site. The pre-insulated crimped cable lug is made from the following components:

Components	Materials
Body	Tin covered Aluminum Alloy
Insulation	UV resistance Polypropylene
End cap	UV resistance Polypropylene

Dimensions

Test

The pre-insulated crimped cable lug CPTA-95-LX-E173 has undergone Mechanical properties & performance testing, conducted with professional laboratory testing equipment.

Here is the example for Crimping test:
Test scope: Apply the CPTA-95-LX-E215 with the power cable of 95 mm2 size, inspect if there will be any breaking of plastic body after E215 crimping tool usage. Applied according to manufacturer instructions following to 1, 2, 3 crimping zones.
