C316 stainless steel grade (Ni ＞ 10%), resist corrosion, prevent from rusting, high strength and toughness
Application
AISI 316 Stainless steel bands play a critical role in overhead cable systems, leveraging their corrosion resistance, strength, and durability to ensure reliable performance in outdoor and industrial environments. Their key role is to fasten cables to the stand poles. It can be used together with buckles (to fasten and secure) and band tools (to cut the band safely).
Technical specification
Product code
Width,mm
Thickness, mm
Material

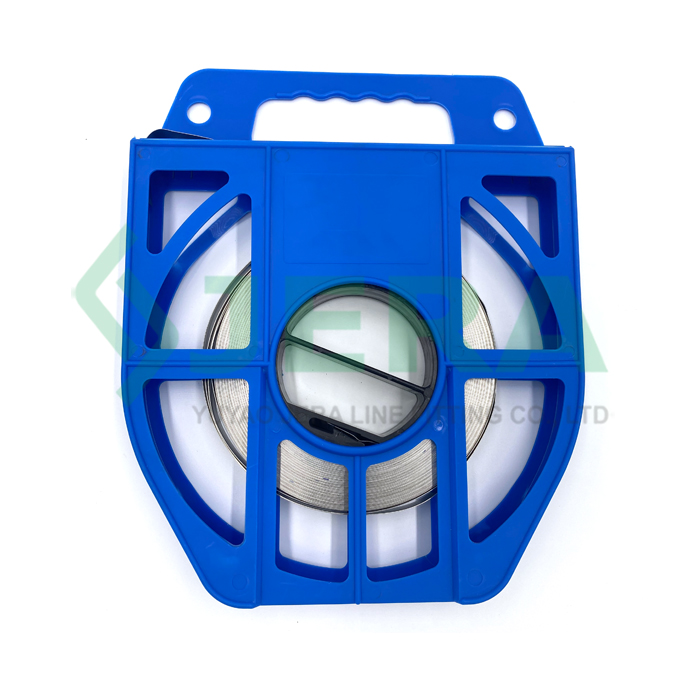

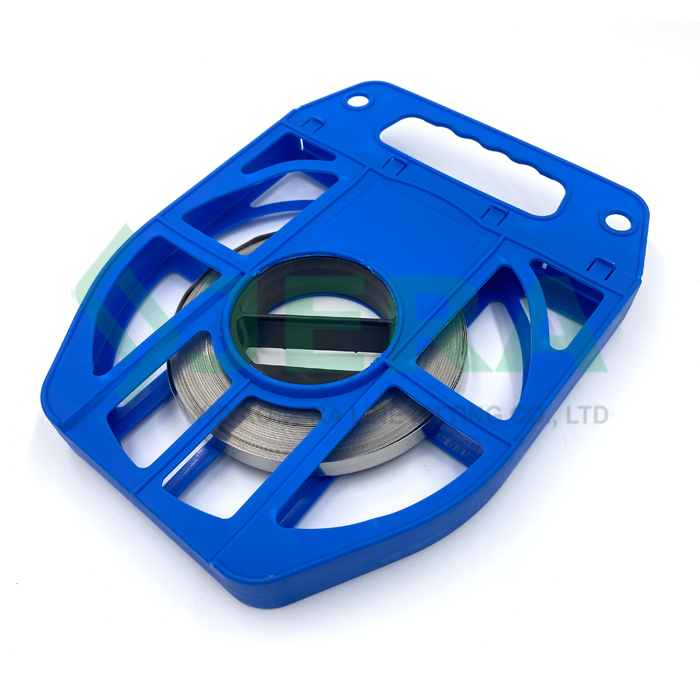

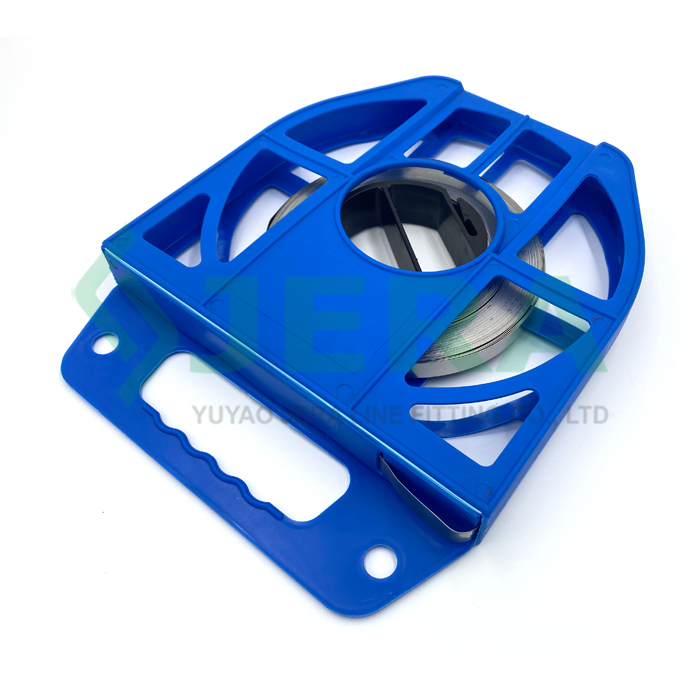

C316 stainless steel band
16 (5/8”)
0.76
AISI316
Components and materials
stainless steel strapis produced by Jera Line, which is a direct factory from China
Components
Materials
C316 stainless steel band
Stainless steel AISI316
Dispenser
UV resistance polymer
C316 grades Stainless steel straps are indispensable in low-voltage overhead cable lines, providing reliability, longevity, and cost-effectiveness in challenging outdoor conditions. Jera Line’s stainless steel tie can be customized in different grades of stainless steel, including 201,202, 304, 316 and 409. Thickness and width can be specified according to application needs.
Test
Jera Line has professional testing equipment to conduct self-tests, including following items:
1.Band dimension

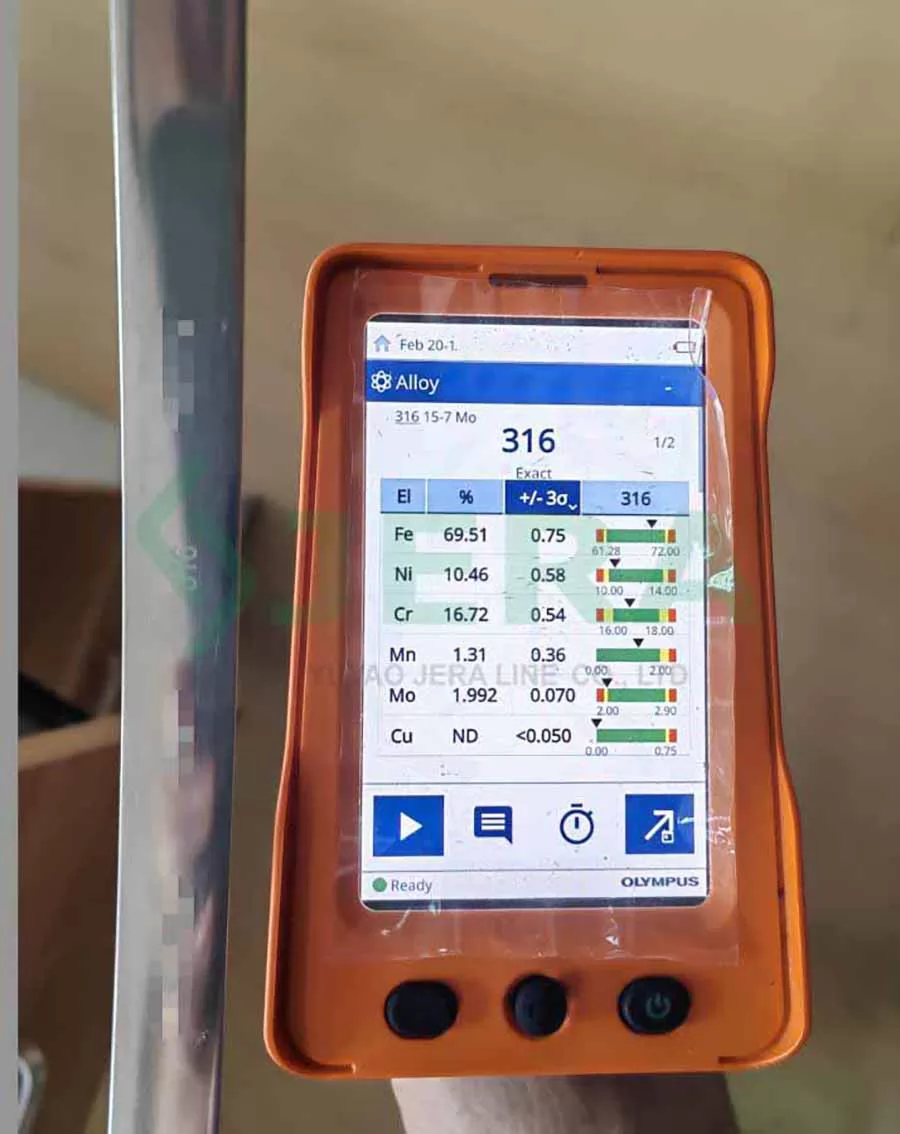

2.Chemical component test
testing equipment:Metal Spectrometer XRF VATANA.

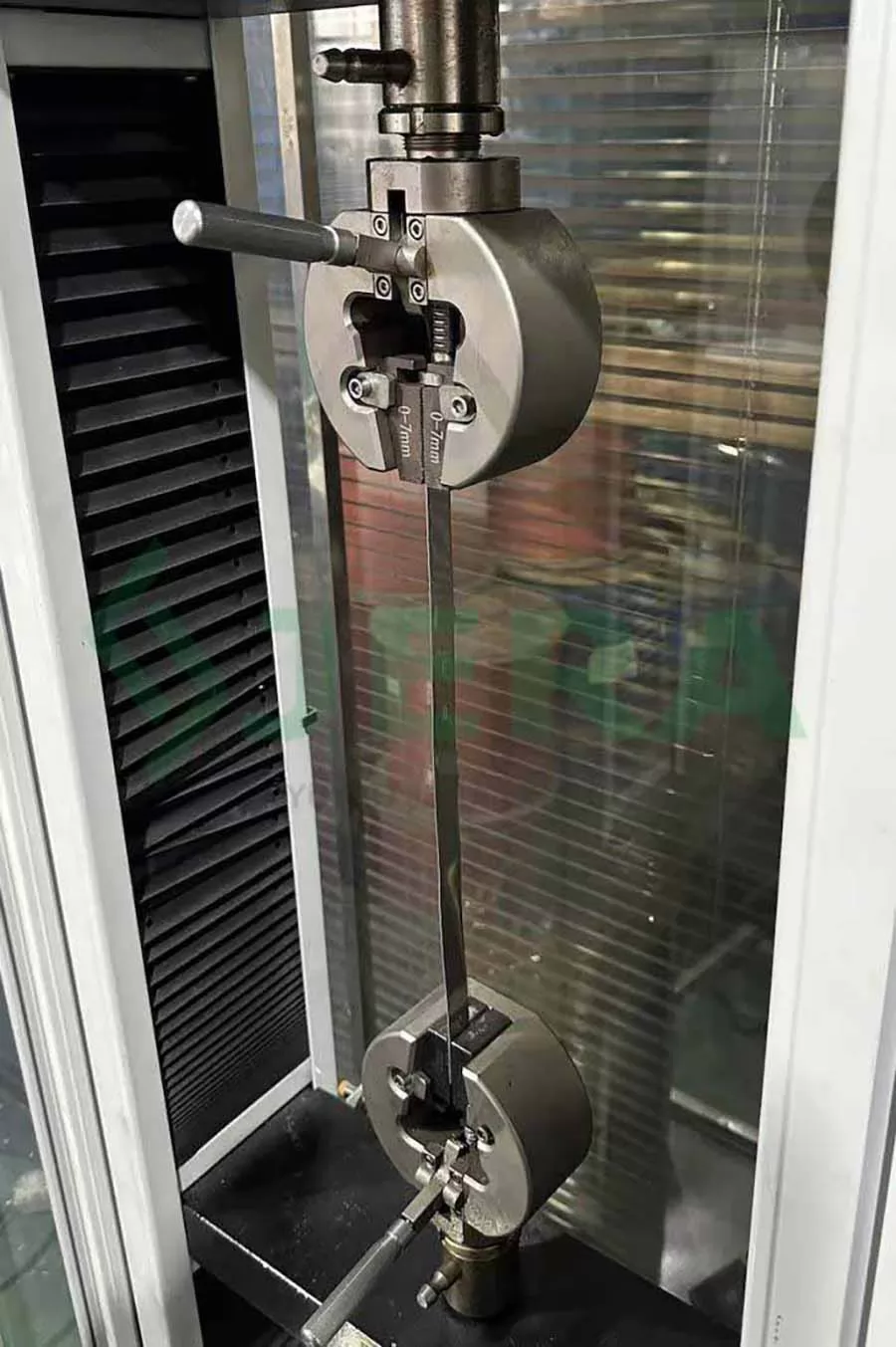

3.Tensile strength and elongation test
Testing Machine: ZD-5
Test scope: Use one section of band which is cut from testing products, fix both ends with ZD-5, and gradually increase the force applied to it until it breaks. The maximum value at break is the parameter we need to test.
