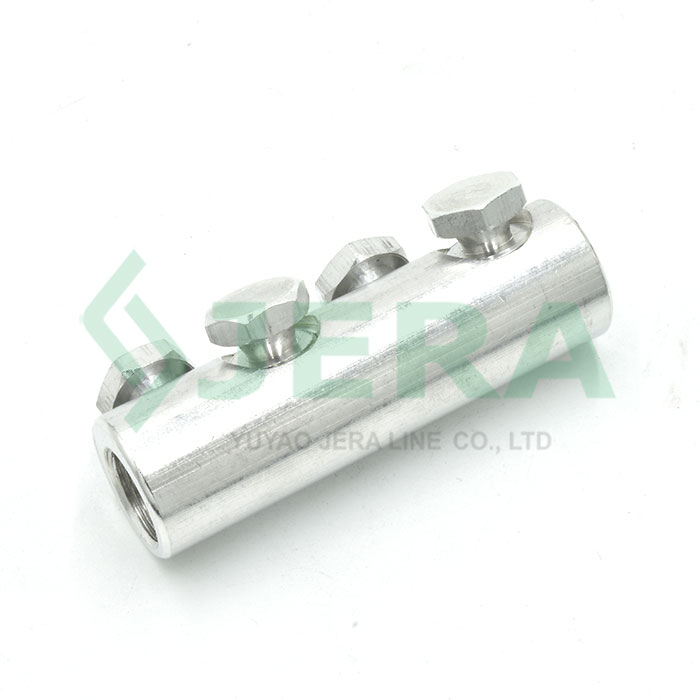

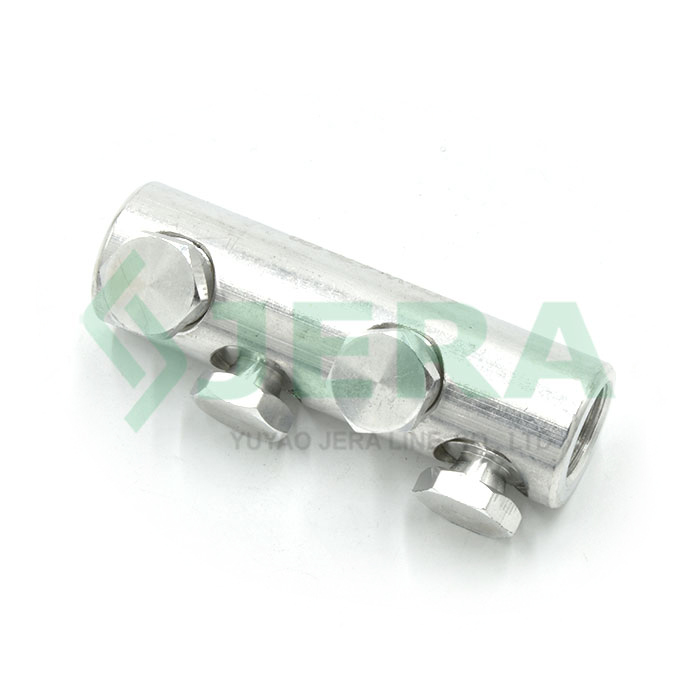

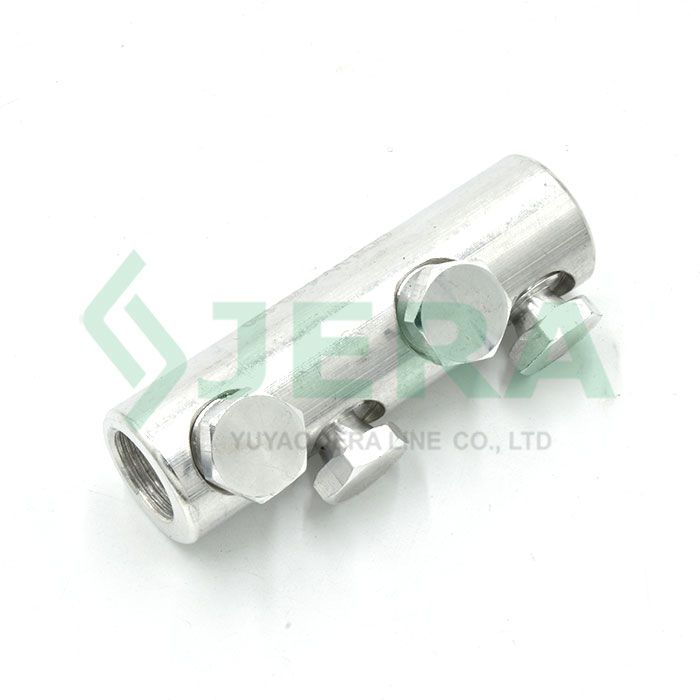

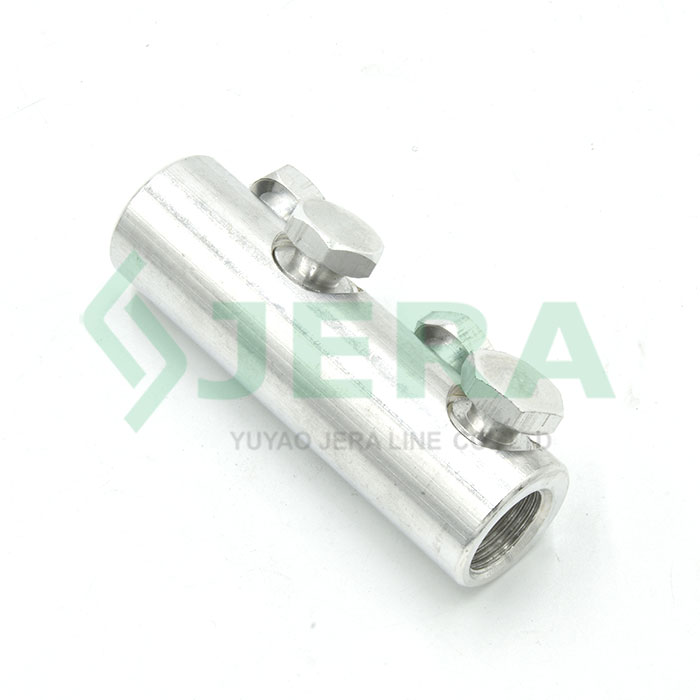

Mechanical Shearhead bolt Connector CCB-Vy-4-70-120, is applied for connect both solid and stranded cables to electrical appliances under voltage 1KV. , it ensures secure connections to electrical equipment during power line construction and maintenance.

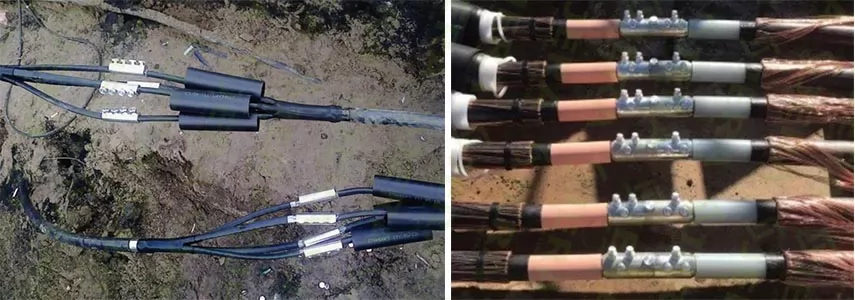

Main Applications:
● lt can be used to fasten electrical conductors to transmision or distribution line system
● Connects aluminum and copper cables or other eclectrical equipment like transformers, circuit breakers, or switchgear.
● It can be employed to connect ground wires to grounding rods or other grounding components.
● prevents over-tightening, which could otherwise damage the conductor or the connection
Technical specification
Product code
Cable size, mm2
Bolt number
Application cable
CCB-Vy-4-70-120
70-120
4
Copper/Aluminum

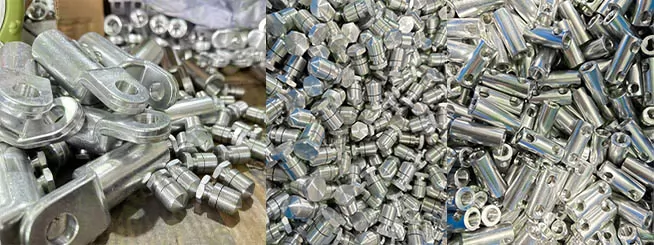

Components and Materials
Mechanical electrical connector,CCB-Vy-4-70-120is produced by a direct factory location in China -- Jera Line, andJera Line, also provides both OEM and ODM services for customers,it installShearhead bolts connector and electrical cables jointing process easily and handy. All required tension force is achieved by shearing off the head of bolt by hex key, which tighten the bolt.
The mechanical electrical connector consists of the following main part:
Components
Materials
Body
Aluminum alloy
Shear off torque bolts
Aluminum alloy

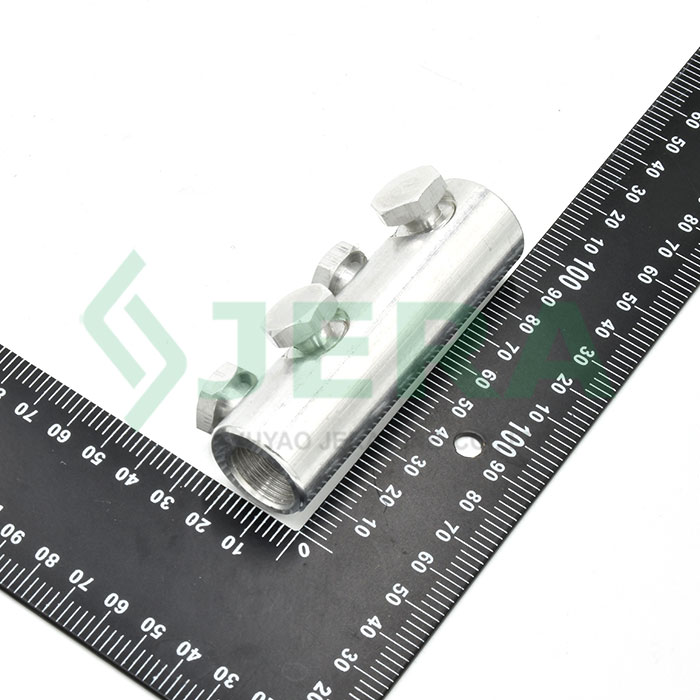

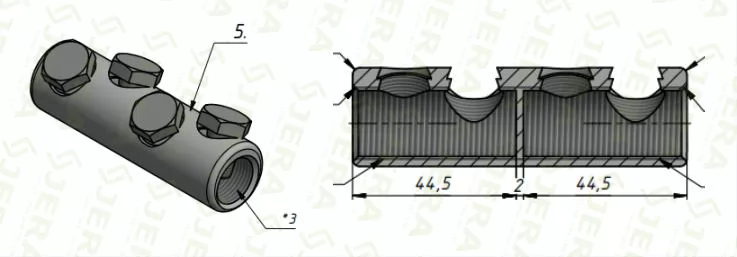

Dimensions
Test

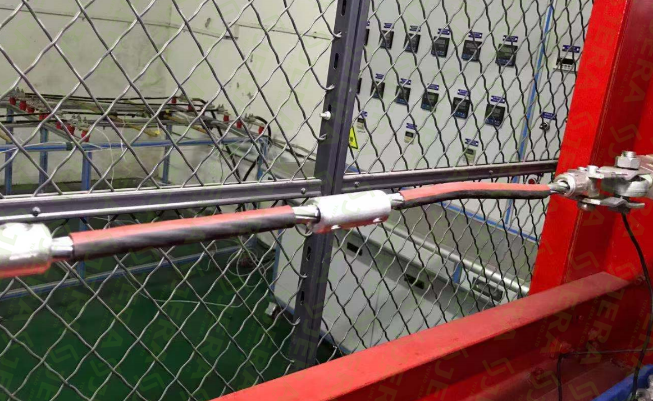

Aluminum Shearhead cableconnector,CCB-Vy-4-70-120has tested in Jera Line in house laboratory for routine tensile strength testing by using the tensile strength machine
The in house quality testing was followed under the international standard IEC 61238-1-3:2018.
