Shearhead Bolt Electrical Cable Connector,CCB-Vy-4-150-240

Mechanical Shearhead Termination Connector, 4 bolts, 150-240mm2 Aluminum cable, IEC-61238-1-3 test report

Features

Fast and convenient installation process with a hex key
High mechanical strength, Offers steady shear head torque for reliable performance
Durable Material
Wire cables sizes from 150 to 240 mm².
Inner jointing grease ensure good electrical contact.
Comply to IEC-61238-1-3 standards.
Factory location in China

DESCRIPTION

TEST

REVIEW

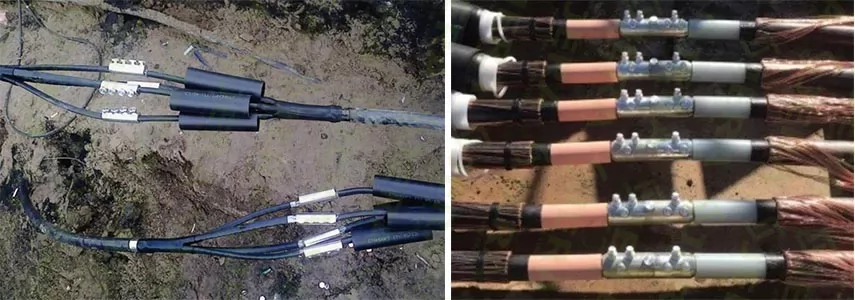

Application

Mechanical Shearhead bolt Connector CCB-Vy-4-150-240, is a metal device applied for connect both solid and stranded cables to electrical appliances low voltage applications under 1 KV. It’s suitable for aluminum electrical cable during power line constructions.

Main Applications:

● Power Distribution Systems: Connects aluminum cables in utility and industrial settings, ensuring reliable power transmission.

● Connects aluminum cables or other electrical equipment like transformers, circuit breakers, or switchgear.

● Grounding systems: Connects ground wires to grounding rods or other components, enhancing safety and protecting against electrical surges.

● prevents over-tightening, which could otherwise damage the conductor or the connection

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CCB-Vy-4-150-240	150-240	4	Aluminum

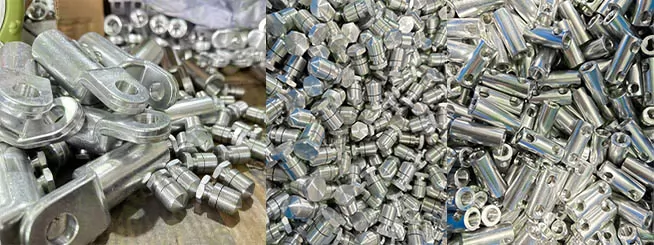

Components and Materials

Mechanical electrical connector,CCB-Vy-4-150-240 is produced by a direct factory location in China -- Jera Line, and Jera Line, committed to manufacture high-quality and cost-efficiency power system accessories for over ten years, and becoming a lead manufacturer in this field.

The mechanical shearhead bolt cable connector consists of the following main part:

Components	Materials
Body	Aluminum alloy
Shear off torque bolts	Aluminum alloy

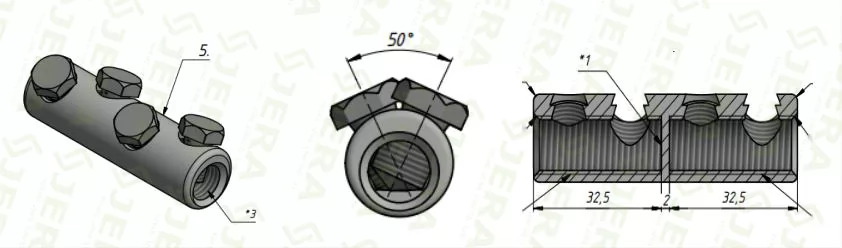

Dimensions

Test

Aluminum Shearhead cable connector,CCB-Vy-4-150-240 has undergone strictly quality testing under the international standard IEC 61238-1-3:2018, released by an independent third-party laboratory.

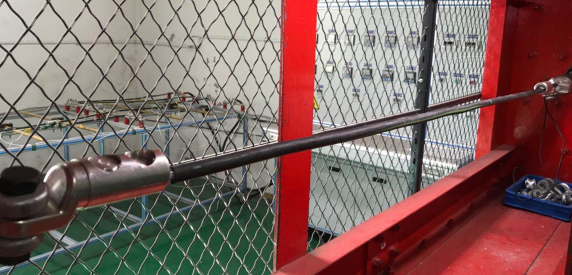

Jera Line also operates its own in house laboratory for routine tensile strength testing using a tensile strength machine.
