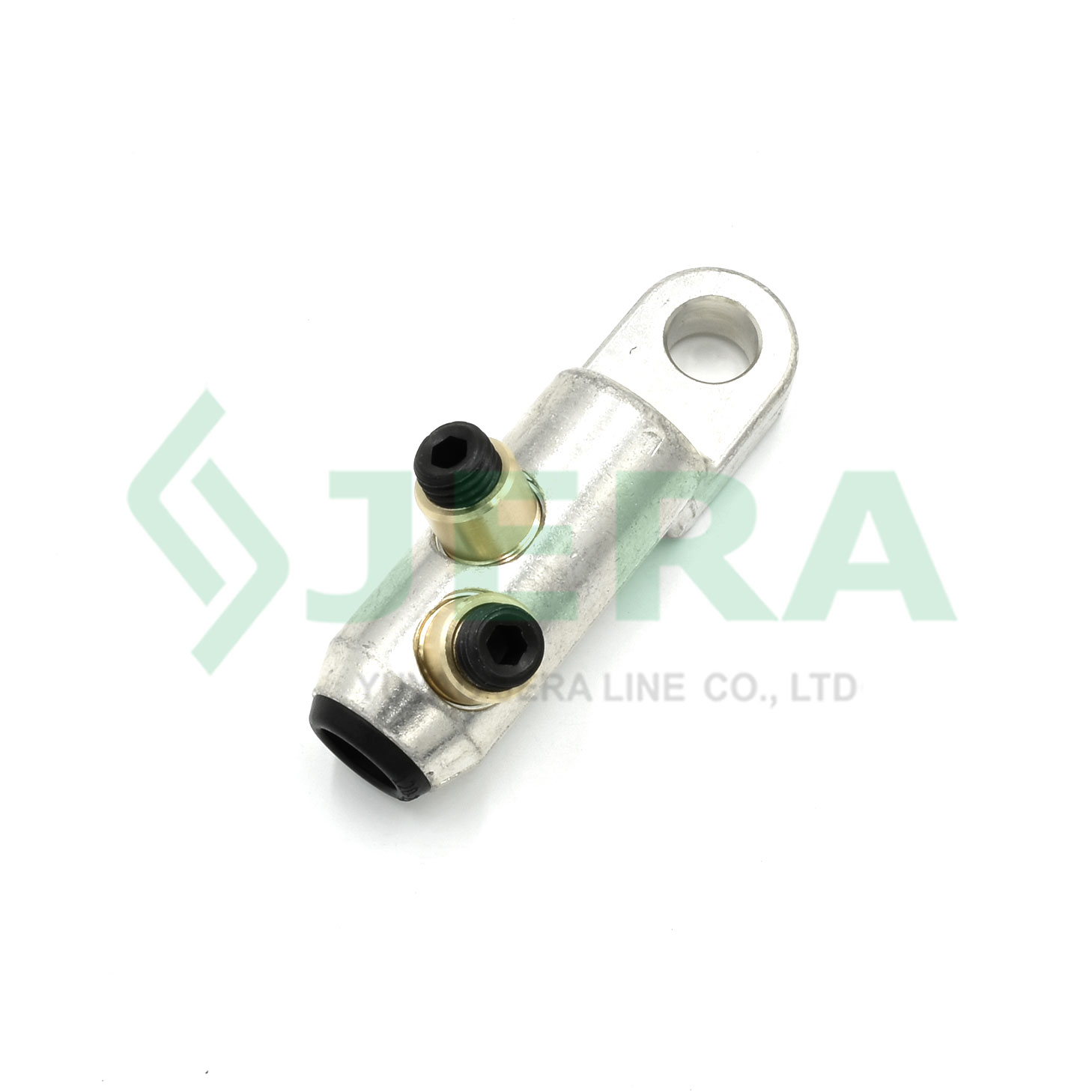

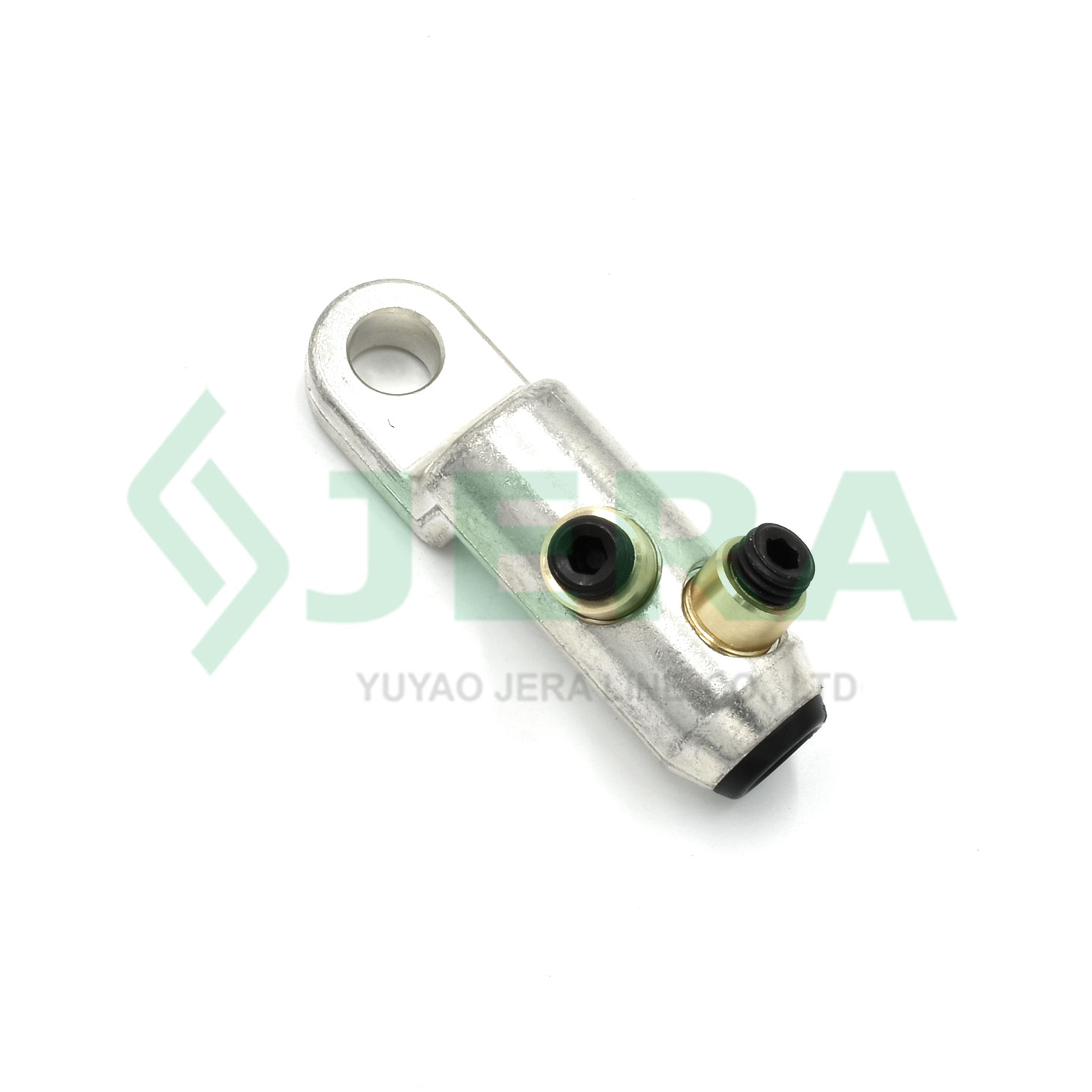

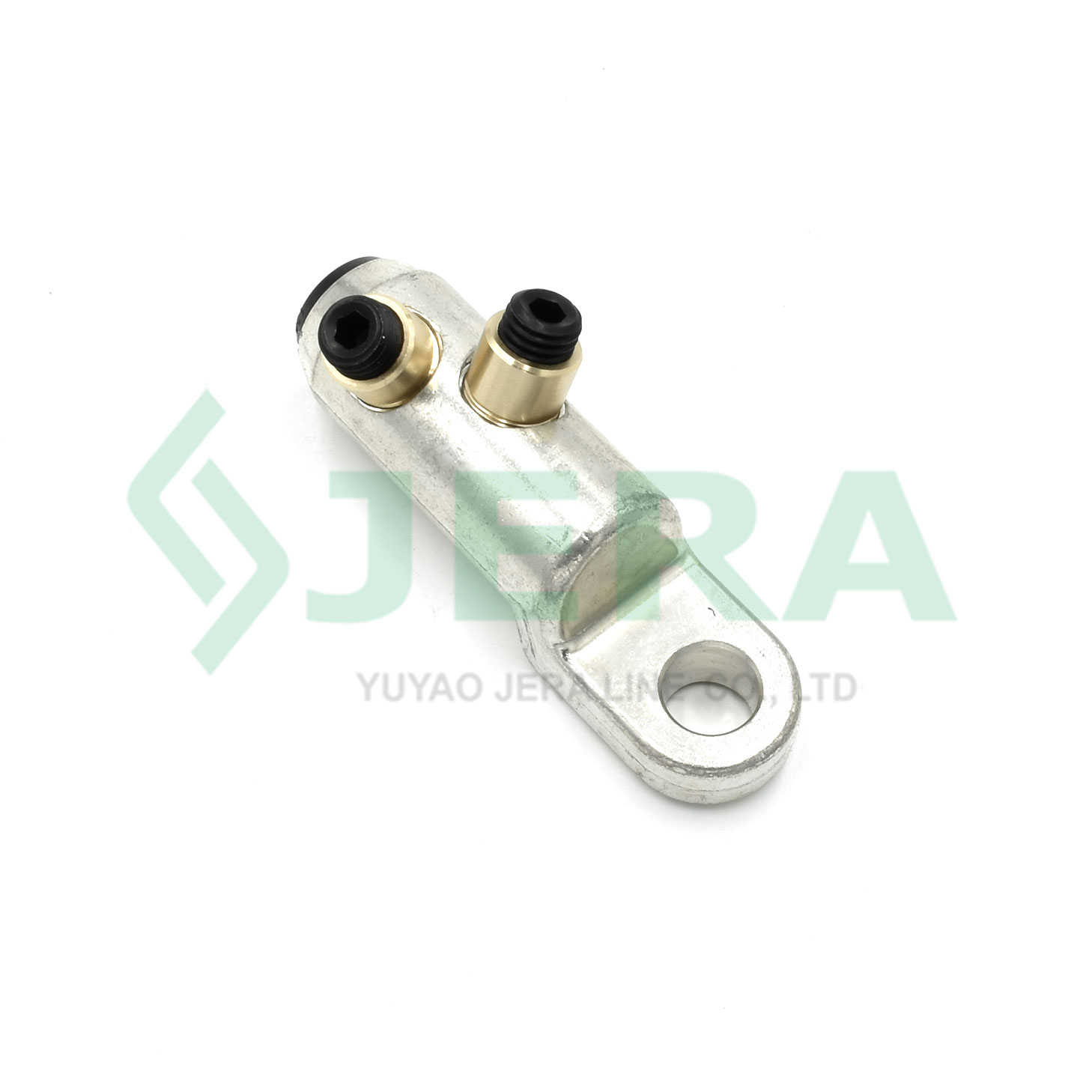

Shearhead lug with stepless bolts CLBVzT-36-2.S(H)-70-240

Stepless bolts mechanical lugs, medium voltage 36KV, aluminum and copper conductors 70-240mm2, IEC-61238 type tested shear bolt lug

Features

Stepless brass bolts, Ensures uniform compression along the conductor
Easy and fast installation
Wide conductor range 70-240mm2 AL/CU cables
High‑Conductivity Tin‑Plated Aluminum Body
IEC-61238-1 type tested factory
Factory location in China

DESCRIPTION

TEST

REVIEW

Application

The CLBVzT‑36‑2.S(H)‑70‑240 mechanical shearhead lug is designed for reliable electrical terminations in medium‑voltage (MV) power distribution systems. Its stepless shear‑bolt technology and wide conductor range make it suitable for a broad variety of installation environments where consistent electrical performance and mechanical stability are essential.

The typical application:

• Medium‑Voltage Distribution Networks

• Substations, Switchgear & Transformers

• Renewable Energy Installations

• Industrial Electrical Infrastructure

• Underground and Overhead MV Cable Systems

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CLBVzT-36-2.S(H)-70-240	70-240	2	Copper/Aluminum

Components and Materials

Jera Line is a mechanical shearbolt lug Chinese manufacturer specializing in MV mechanical shear bolt connectors, MV shear head torque lugs. All our products are engineered, tested, and manufactured under strict quality control systems to meet international standards IEC-61238 and customer‑specific requirements.

The Shearhead lug with stepless bolts CLBVzT-36-2.S(H)-70-240 consists of the following main part:

Components	Materials
Body	Tin Covered Aluminum Alloy
Stepless shear bolts	Brass

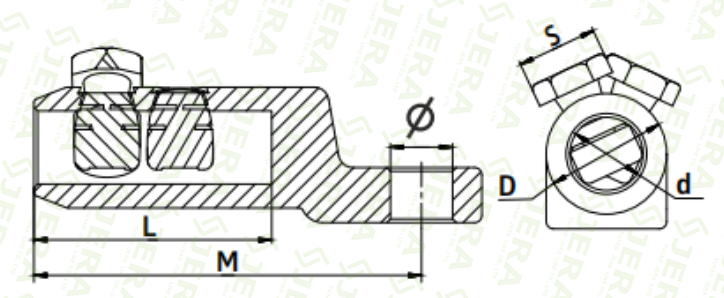

Dimensions

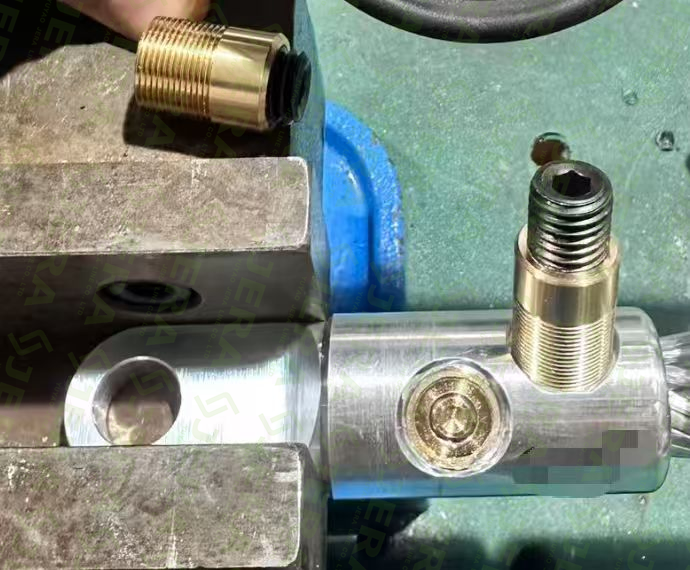

Test

The CLB‑2K‑VzT‑36‑2.S(H)-70‑240 mechanical shearhead lug with stepless bolts is fully tested according to IEC 61238‑1, ensuring reliable electrical and mechanical performance for medium‑voltage applications.

At Jera Line, each lug undergoes electrical stability verification to confirm low contact resistance and long‑term conductivity. Mechanical tests, including conductor retention, torque performance, validate the lug’s ability to withstand installation forces, vibration, and thermal cycling. These rigorous evaluations guarantee that every Jera Line shearhead lug delivers safe, consistent, and utility‑grade performance in demanding field environments.
