Sicon Bolt Mechanical Shear Bolt Connectors CCBVzT-36-4.S(H)-70-240

Stepless Bolt Mechanical Shear Bolt Connectors CCBVzT-36-4.S(H)-70-240

Stepless shear bolt connector, 70-240mm2 mechanical cable connector factory, medium voltage 36KV, IEC-61238

Features

Simple and quick installation using a standard hex key
Compatible with electrical cables ranging from 150 mm² to 240 mm²
Engineered with a steady shear head torque
Produced in accordance with IEC 61238-1-3
Factory location in ChinSmooth breakage of the shear bolt simplifies tightening
No special tools needed
IEC-61238 type tested connector
Full utilisation of the thread loading for any size of conductor
Tin plated Aluminum body, excellent corrosion resistance
Chinese factory with competitive price

DESCRIPTION

TEST

REVIEW

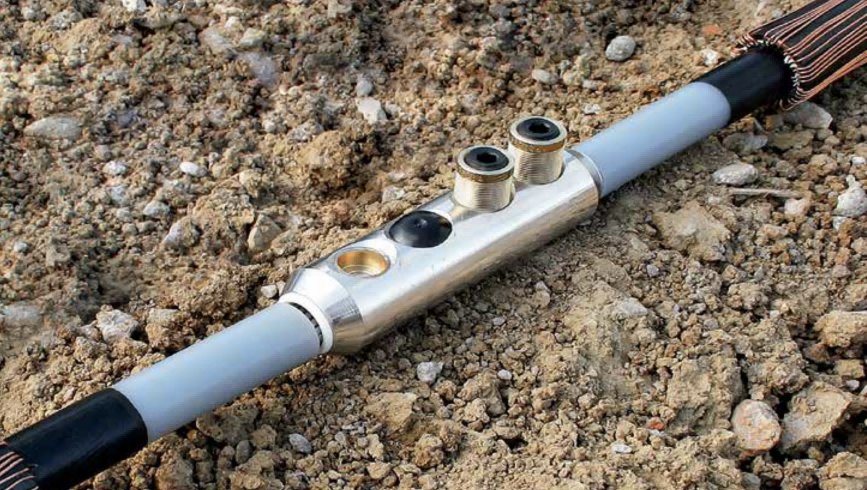

Application

The CCBVzT‑36‑4.S(H)‑70‑240 stepless mechanical shear bolt connector is designed for secure, low‑resistance electrical connections in medium‑voltage (MV) power distribution systems. Its wide conductor range and stepless shear‑head bolt technology make it suitable for demanding installations where reliability, safety, and long‑term performance are essential.

Application areas:

● Medium‑Voltage Distribution Networks

● Substations, Switchgear & Transformers

● Renewable Energy Projects

● Industrial Electrical Installations

● Underground and Overhead MV Cable Systems

Technical specification

Product code	Cable size, mm2	Bolt number	Application cable
CCBVzT-36-4.S(H)-70-240	70-240	2	Copper/Aluminum

Components and materials

The CCBVzT‑36‑4.S(H)‑70‑240 stepless mechanical shearhead cable connector is engineered with high‑quality materials and precision‑machined components to ensure reliable electrical and mechanical performance in medium‑voltage cable systems.

Jera Line is a 70-240 sicon shearbolt connector Chinese factory, specializing in mechanical shear bolt connectors, MV shearbolt lugs, and power cable accessories. Our products are developed by R&D department, and each component is designed to deliver uniform compression, stable conductivity, and long‑term durability.

The mechanical stepless shear bolts connector CCBVzT‑36‑4.S(H)‑70‑240 consists of the following main part:

Components	Materials
Body	Tin Covered Aluminum Alloy
Stepless shear bolts	Brass

Dimensions

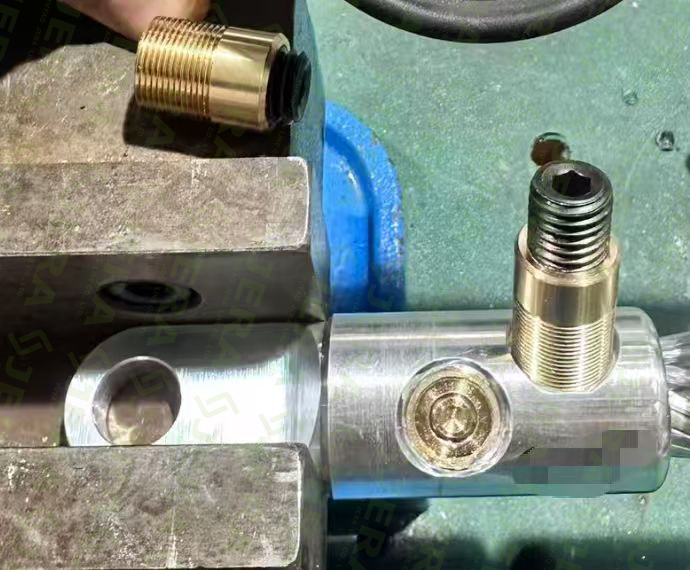

Test

The CCBVzT‑36‑4.S(H)‑70‑240 mv mechanical cable connector is fully tested according to IEC 61238‑1, ensuring reliable electrical and mechanical performance in medium‑voltage power distribution systems.

Jera Line conducts the following tests in own in-house laboratory:

• Electrical resistance measurements to verify stable conductivity.

• Mechanical testing -- torque verification ensure long‑term mechanical stability

These rigorous evaluations guarantee that every CCBVzT‑36‑4.S(H)‑70‑240 mechanical connector delivers safe, durable, and utility‑grade performance for MV cable joints, terminations, substations, and renewable energy applications.
