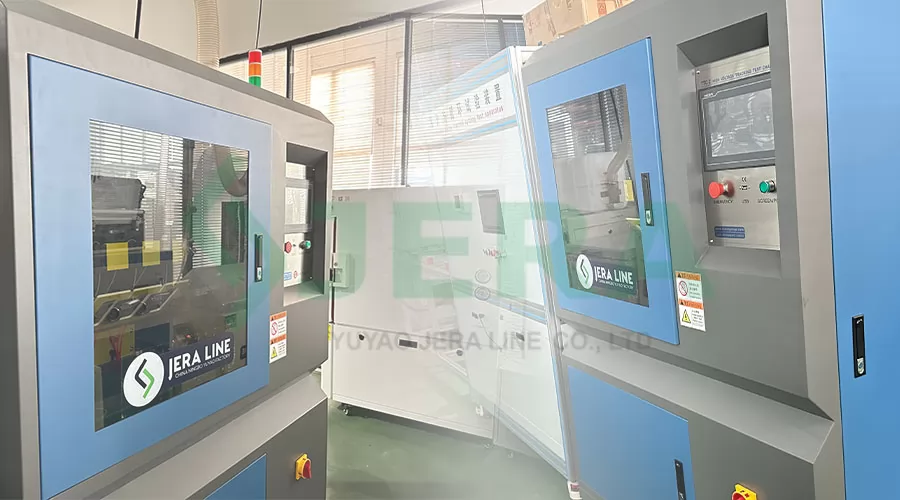

Jera Line’s in-house laboratory has a tracking and erosion test equipment, which is essential for evaluating the surface performance and durability of insulating materials under high voltage stress, simulating real-world operational conditions. The equipment is designed to replicate conditions such as electrical arcing, surface degradation, and material erosion caused by tracking phenomena, ensuring the reliability of electrical components and insulators.

Method:

The testing method follows the international standard IEC 60695, which specifies procedures for assessing the tracking and erosion resistance of polymer and other insulating materials. The process involves subjecting material samples to controlled high-voltage conditions, environmental contamination, and humidity to observe the formation of tracking paths, carbonization, or erosion.

Testing Procedure (IEC 60695):

• Prepare material specimens with specified dimensions and surface conditions.
• Mount specimens inside the testing chamber equipped with electrodes.
• Apply a gradually increasing AC or DC voltage until the specified level, then maintain the voltage.
• Simulate contamination conditions such as moisture, pollutants, or salt fog as required.
• Monitor and document surface deterioration, tracking path development, and erosion.
• Conclude the test when tracking occurs or after a predetermined duration, to evaluate material reliability.

Applications

• Qualification of insulator surfaces and cable accessories
• Verification of new materials for high-voltage applications
• Development and quality control of polymer and composite insulators

Related testing Product References:

JERA Energy HDPE Pin-Type Insulators PPI-1-150-55

These insulators are designed to meet strict standards and are suitable for tracking and erosion testing to assure long-term performance.
