What is Class A1 IPC Connector TTD 041 FJ2TA?

A Class A1 insulation piercing connector (IPC) TTD041FJ2TA is a type of electrical connector primarily used in low-voltage power distribution systems. It is designed to establish a quick and reliable connection between insulated cables.

Differences Between Class A1 and Class B2 IPCs:

• Current Carrying Capacity: Class A1 IPCs are specifically designed for that require higher current capacities compared to Class B2. This makes Class A1 IPC ideal for applications or environments where elevated loads are anticipated.
• Design and Size: Class A1 insulation piercing connectors are typically larger and more durable than Class B2 connectors.
• Insulation Piercing Mechanism: Class A1 IPC often has more durable and reinforced piercing teeth than Class B2 does.
• Applications: Class A1 is typically used in areas with higher environmental and mechanical stresses than Class B2 does.
• Cost: Class A1 IPCs will be more expensive because of their advanced features and suitability for harsh environments.

Jera Line is a leading manufacturer specialized in low-voltage and medium-voltage power line infrastructures. All of the IPCs made by Jera Line are Class A1 connectors, and we are continuing to develop Class B2 connectors.

What IPC Equivalents of TTD041FJ2TA Does Jera Line Produce?

Jera Line produces a full range of insulation piercing connectors (IPCs) which suitable for different size of cables. As an IPC used in street lighting systems, Jera Line offers two such products, which can perfectly match the conductor size of TTD041FJ2TA.

• Comparison Chart:

• Key Features:

1. Jera Line designs them for street lighting systems
2. For little conductor size, can be used for tap-tap connection
3. Designed for low-voltage power system usage
4. UV-resistant polymer bodies and tin-covered aluminum teeth are designed for high corrosion resistance.
5. Jera Line’s ZOP comply with the international standard EN-50483-4
6. With a competitive price, the factory is located in China.

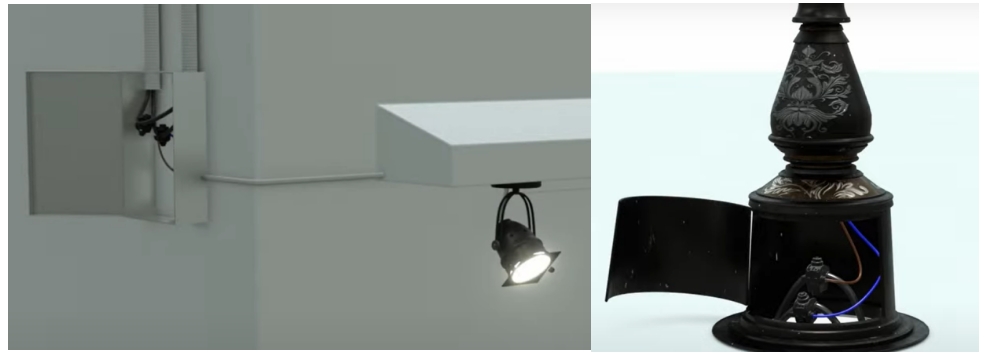

• Application:

1. Outdoor Lighting Systems
2. Low-Voltage Distribution Networks
3. Communication and Low-Voltage Systems
4. Agricultural and Municipal Engineering

• Test:

The ZOP-25P and ZOP-25 LV Piercing Connector for overhead lines meets the EN-50483-4 international standard. Jera Line maintains its own factory - based laboratory testing equipment to ensure quality control.

1. Short - circuit overcurrent testing machine：The Short - circuit (SC) overcurrent test replicates the workloads of a power line amidst weather - induced impacts and other circumstances.
2. Temperature & Humidity aging equipment：The test simulates how the product is used and makes it possible to forecast potential performance deviations when the product is impacted by the environment.

Why Choose Jera Line as Your Insulation Piercing Connector Manufacturer?

1. Full Range of IPCs: Jera Line produces a wide range of IPCs, each meticulously engineered to be suitable for a variety of critical applications, ensuring reliable performance in:

• Surge arresters
• Bare insulated cables
• MV overhead ABC cables
• One core and muti-tap lines
• LV overhead one core cable lines

2. Comprehensive Supporting Products: Jera Line produces a series of supporting products in order to ease purchase and save time, which include:

• Dielectric torque wrench JTN-11-13: To screw the shear head bolt
• Holding tool JTN-7: To hold the IPC for a safer installation and convenient positioning.
• Insulated end cup M Z-4-50/ MZ-25-150: Suitable for 4-50 mm²/ 25-150 mm²size insulated neutral cables.

3. Great Quality and Electrical Performance

Jera Line produces high-quality insulation piercing connectors engineered for long-term service, which comply with EN-50483-4.

4. Comprehensive production facilities

Jera Line’s production space spans over 5,000㎡, with workshops for plastic injection moulding, moulding and tooling, assembly, press forming, plus a large stock warehouse.

5. Raw Material Quality Control

Jera Line has put in place a comprehensive raw material quality control system and applied preliminary oversight throughout the entire production process.

Conclusion：

Jera Line offers high-quality insulation piercing connectors with excellent electrical performance, making it an ideal business partner. With nearly ten years of experience in foreign trade, Jera Line has customers from all over the world. Come and join us!

Please feel free to contact us.
