What Is Insulation Piercing Connector TTD 041 FJ2TA?

The insulation piercing connector (IPC) TTD041FJ2TA is a device used for electrical power systems, ensuring secure, efficient, and reliable connections.

IPCs are used to create electrical connections between conductors without the need for stripping the insulation from the wires. This is achieved with metal teeth that pierce the conductor’s insulation, establishing a trustworthy electrical connection. The design helps keep the insulation intact, reduces cable damage risks, and ensures the connection remains secure.

As an experienced manufacturer, Jera Line develops and produces a wide range of insulation piercing connectors, among which are two types of IPC that can match the functionality of IPC TTD041FJ2TA.



What Analog of TTD041FJ2TA Does Jera Line Offer

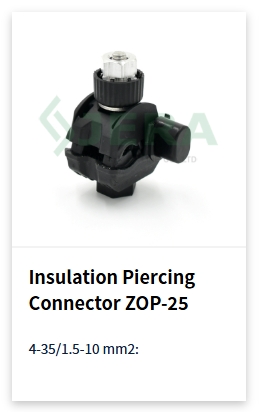

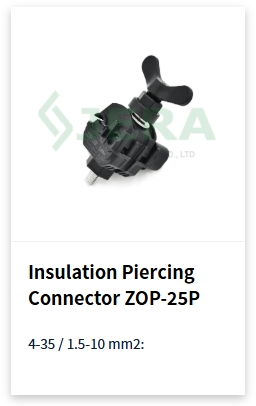

The IPC ZOP-25 and ZOP-25P, made by Jera Line, are perfect alternatives to the TTD041FJ2TA.

  • Comparison Sheet:

Item No.

Main conductor size mm²

Tap conductor size mm²

Torque N*m

ZOP-25

4-35

1.5-10

7

ZOP-25P

4-35

1.5-10

6±2

TTD041FJ2TA

6-35

1.5-10

9



  • Key Features:
  1. Jera Line designs them for outdoor street lighting usage
  2. Compact size, can be used for tap to tap connections
  3. Tin coated Aluminum teeth for AL and CU conductor usage
  4. Compact size, can be used for Tap to Tap connection
  5. Jera Line produces IPC comply to EN-50483-4
  6. Shear head bolt for easy-installation and quick torque achieved
  • Application:
  1. Overhead Power Lines
  2. Renewable Energy Systems
  3. Street Lighting Systems
  4. Industrial Power Distribution

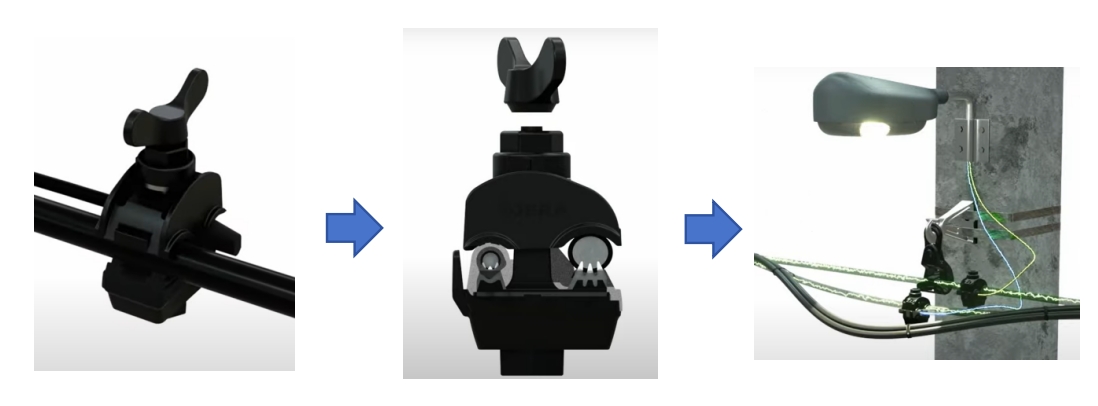

  • Installation Step:



  1. Check the appearance of the insulation piercing connector (IPC) to see if there is any damage or defect.
  2. Insert the cable line into the groove of insulation piercing connector (IPC), without stripping the insulation of cable.
  3. Screw the shear head bolt, until it is sheared off, and the required torque has achieved.

The installation is quick and easy, with no need for stripping the insulation or using specialized tools. It ensures an integrated connection and reduces conductor wear.



Why Choose Jera Line as Your Insulation Piercing Connector Supplier?

Here comes the question: Why choose Jera Line? What can Jera Line provide for customers? We will list the reasons below:

Jera Line offers a flexible OEM and ODM policy. Customers can add your logos on our products, or other markings as you required. This can help customers achieve brand integrity and enrich their product portfolios.

  • Samples are Available

Jera Line is willing to offer samples as required by customers, to demonstrate our product quality and marking effect.

  • International Trading Background

Jera Line has built strong partnerships with distributors across the globe, and its products are available in over 30 countries.

  • Stable Product Quality

Jera Line's insulation piercing connectors are produced via ISO 9001-certified processes, with their tensile strength verified by the company’s in-house laboratory.

Jera Line offers an extended warranty to our customers, which includes a 5-year product guarantee from the date of shipment for all items. Additionally, third-party inspection bodies (e.g., SGS, BV) are welcome to inspect the goods before delivery, among other services.



Conclusion:

Jera Line’s ZOP series insulation piercing connectors are designed for low-voltage and medium-voltage power line applications, suitable for different cable sizes. Quality and service are the most important aspects for Jera Line. Our principle is that customer satisfaction is our top priority.

Please don’t hesitate to contact us!
