In modern low voltage electrical distribution networks, safety and reliability are two of the most important considerations. One device that plays a crucial role in ensuring both is the low voltage earthing adapter PMCC.

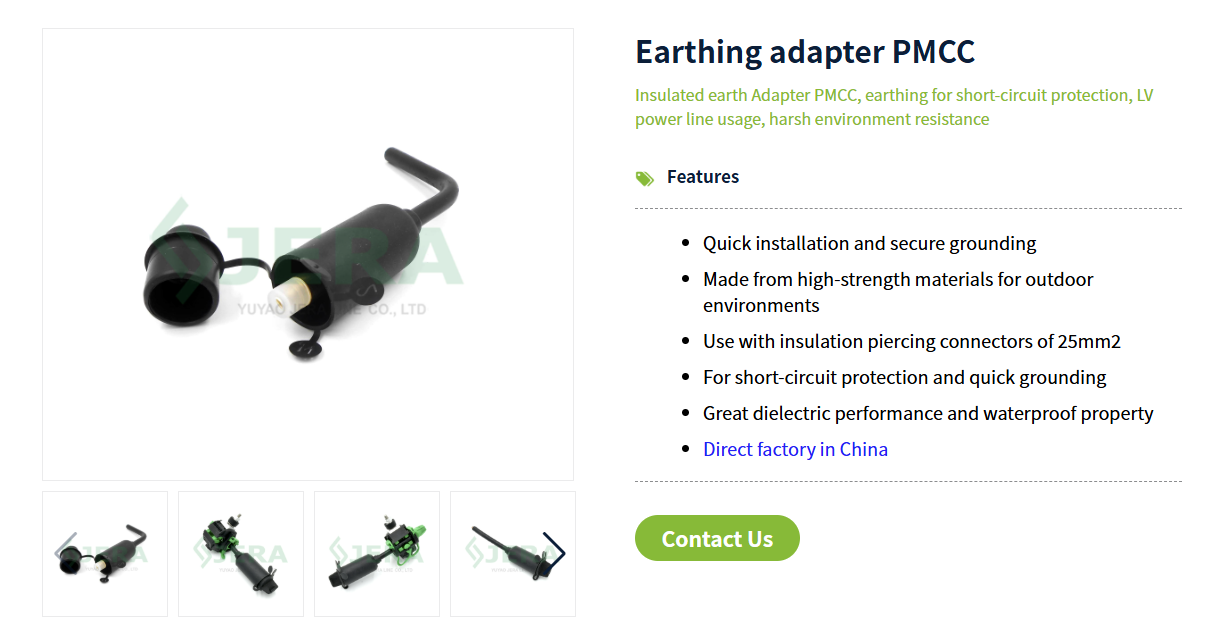

The Low Voltage Earthing Adapter PMCC is a specialized protective grounding device used in Power Motor Control Centers (PMCC) and low-voltage switchgear systems. Its primary purpose is to provide a safe, secure, and efficient connection to the earth in order to:
A low voltage earthing adapter PMCCit acts as a vital safety bridge between the electrical system and the earth, preventing dangerous voltages from reaching the surface of electrical enclosures
Jera Line is a direct factory who produce low voltage earthing adapter PMCC , it’s engineered for safe, quick, and tool-friendly installations in both electrical equipment and people.
Low voltage earthing adapter PMCC specification:
|
Product code |
|
|
Conductor size |
25 |
|
Stud dimension length mm |
35 |
|
Short circuit currents up to |
4kA/s |
|
Failure Load（kN) |
1.2 |
The earthing adapter acts as a bridge between the electrical system and the grounding network. It is designed to:
1. Provide Reliable Grounding
It connects low-voltage circuits to the earth to ensure any fault current is safely diverted away from equipment and personnel.
2. Protect Against Overvoltages
In the event of short circuits or lightning surges, the adapter helps discharge excess energy into the ground, preventing potential damage.
3. Ensure Safety During Maintenance
The adapter enables secure earthing during system inspections, repairs, and upgrades, reducing the risk of electric shock.
Applications of Low Voltage Earthing Adapter PMCC
Key feature
Jera Line, is an experienced manufacturer for Low voltage earthing adapter PMCC , specialize in designing and manufacturing high-quality LV earthing adaper that meet international standards and diverse application needs.
Direct Manufacturer Advantage
1. Jera Line owns a direct factory location in China, where we design, produce, our Low voltage earthing adapter PMCC . Jera Line uses over 5,000㎡ of facility area for manufacturing, with large-scale production facilities such as moulding and tooling machines, plastic injection machines, drilling machines, cutting machines, and others.
Jera line established in 2012, has exported low voltage accessories more than 30 countries, and received good feedback from customers on quality.
3. Quality & Reliability
Jera Line’s , we own our in-house laboratory testing equipment to test low voltage earthing adapter PMCC ensuring they are in high quality and reliability.
4. OEM and ODM
Jera Line, we provide customization Options per project requets, we can do product development, laser marking and carton box stickers based on customer logos.
The Low Voltage Earthing Adapter PMCC is a small part but essential component in modern low-voltage electrical systems. By providing a secure and efficient grounding path, it safeguards equipment, enhances safety, and ensures the reliable operation of power distribution networks.
Jera line produces the whole solution for LV & MV overhead cables, if you have any products inquiry which related with this area, please feel free to contact us!
