A low-voltage surge arrester (LVSA) is an electrical device designed to protect low-voltage electrical systems and equipment from voltage surges and transient overvoltages. Lightning strikes, switching operations , electrostatic discharges, or other transient events, they can all results in overvoltages and damage the power systems.
Why should we use a low voltage surge arrester?
• For Protection: Protect equipment from damage.
• Prevents Fire Hazards: Low-voltage surges will lead to overheating, insulation breakdown, and even electrical fires.
• Reduce Maintenance Costs: Installing LV surge arresters minimizes unexpected damages, saving money in the long run.
• Improves System Reliability: Surge arresters ensure continuous operation by preventing surge-induced disruptions.
• Extends Equipment Lifespan: Metal oxide surge arrester protect insulation and electrical system, prolonging device longevity.
What kind of low voltage surge arrester does Jera Line offer?
Jera Line, a direct factory from China, who provides various electrical system protections for Low-Voltage overhead lines. Through research and development, Jera Line offers surge arresters for LV OH power line applications. These arresters can be used together with IPCs made by Jera Line for easy installation.
1. Key models

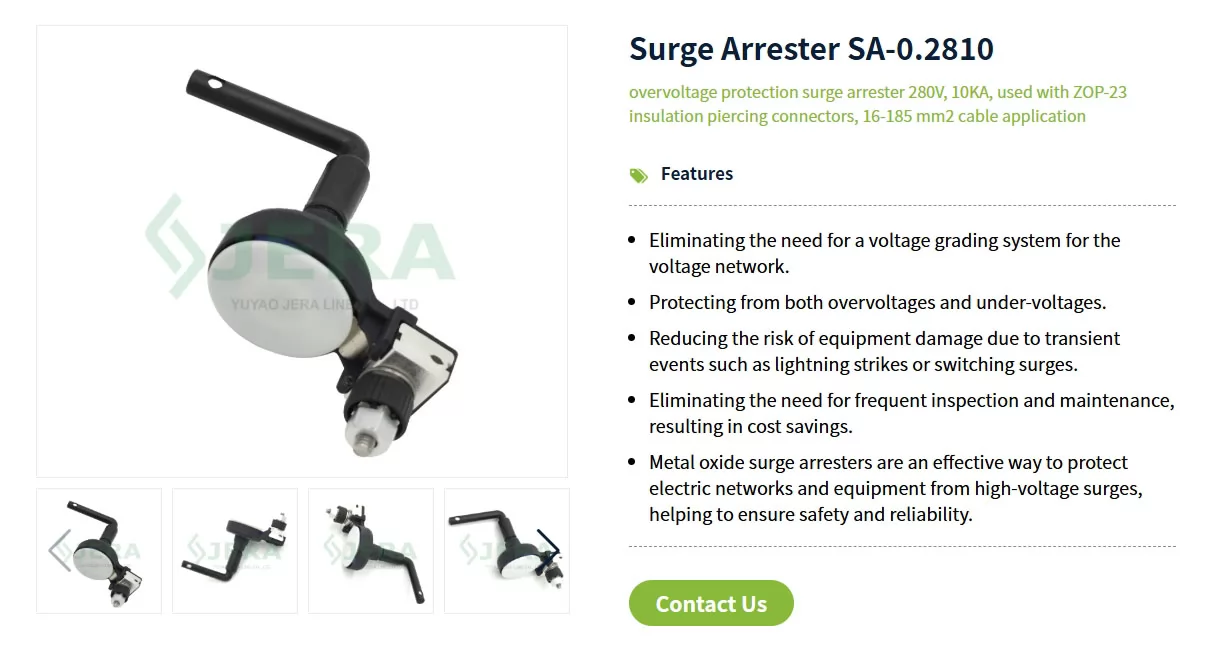

• SA-0.5/10
• SA-0.66/5
|
Item No. |
Max allowable voltage, V |
Voltage protection level, V |
Nominal discharge current, kA |
Maximum discharge current, kA |
Short-circuit withstand capability, kA |
|
SA-0.28/10 |
280 |
1100 |
10 |
40 |
4.5 |
|
SA-0.5/10 |
500 |
1680 |
10 |
40 |
4.5 |
|
SA-0.66/5 |
660 |
2465 |
5 |
35 |
4.5 |
2. Key Features
• A voltage grading system will no longer be needed
• Protecting electrical systems from both overvoltages and under-voltages.
• Protecting the equipment from transient events such as lightning strikes or electrostatic discharges etc.
• Eliminating the need for frequent inspection and maintenance and saving the cost in the long run.
• Using surge arresters is an effective way to protect electric systems and equipment from high-voltage surges, to improve safety and sustainability.
3. Application
LV surge arrester made by Jera Line is one kind of MOV-Based Arresters(Metal-Oxide Varistors). This sort of arrester has the advantage of cost-effective, fast response and compact size. They will be used in following fields:
• Residential & Commercial Buildings
Protects electrical appliances, HVAC systems, and lighting from power surges.
• Installed in distribution panels to safeguard circuits.
• Industrial Facilities
• Shields sensitive equipment like motors, control panels, and automation systems from voltage fluctuations.
• Used in power distribution networks to prevent downtime.
• Used in network infrastructure to maintain uptime.
What kind of Insulation piercing connector made by Jera Line can be use with metal oxide surge arresters ?

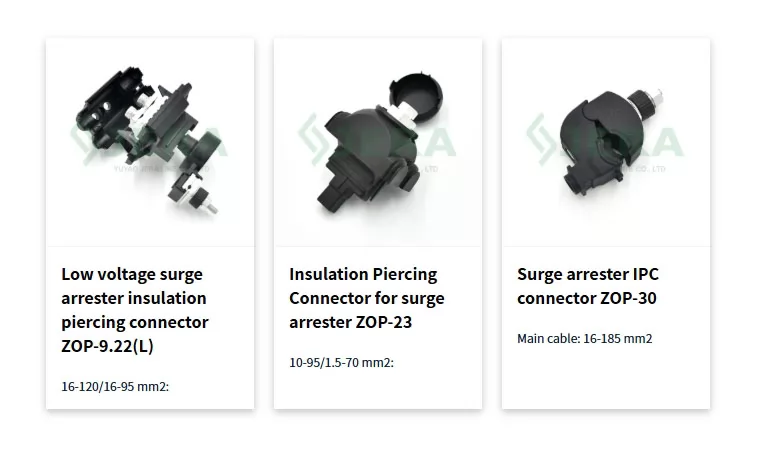

Jera Line is a leading IPC producer who specializes in producing insulation piercing connectors. Jera Line offers three different kinds of low voltage IPC that are suitable for metal oxide surge arresters.
1. Key models:
• ZOP-23
• ZOP-30
|
Item No. |
Cable size, mm²（Main） |
Cable size, mm²（Tap） |
Torque, N*m |
|
16-120 |
16-95 |
20 |
|
|
10-95 |
1.5-70 |
20 |
|
|
16-185 |
/ |
16 |
2. Key Features
① Surge protection
② Complied with M8 bolt surge arrester
③ High resistance to climatic stresses
④ Optimised electrical performance
⑤ Shear head bolts ensure torque level and easy installation
3. Differences between them:
The low voltage ZOP-9.22 IPC connector with surge arrester can only be suitable for AL cable, however surge arrester IPC ZOP-23 and ZOP-30 can be used in both AL and CU conductors.
Why choose Jera Line as your low voltage surge arrester manufacturer?
1. A direct factory from China, reduce the price difference earned by middlemen.
2. Over 5000㎡ facility area with automated machines such as injection machine, stamping machine, moulding machine etc.
3. OEM & ODM will be doable.
4. A leading industrial manufacturer with rich global trade experience.
5. Offers various good-quality LV & MV connectors and other accessories to meet the needs of the market.
Conclusion
Jera Line offers various protection devices with high-class quality for electrical system as well as affordable price, and the factory has in-house laboratory for routine test that ensuring reliability and safety.
For any questions, please feel free to contact us!
