What is MV IPC Connector?

MV IPC connector, short for Medium Voltage Insulation Piercing Connector, is a specialized electrical connector designed to tap into or connect medium voltage aerial bundled cable up to 36KV without the need to strip the insulation from the conductor.

MV IPCs Applications:

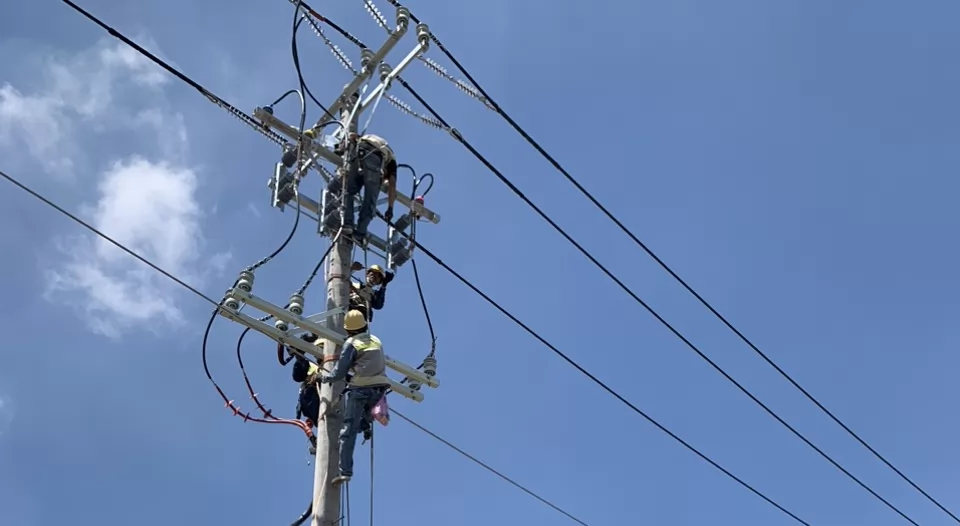

• Overhead medium voltage ABC lines
• Renewable energy installations
• Power distribution systems
• Urban and rural power grid extensions

What MV IPC connectors does Jera Line have?

Jera Line is a leading manufacturer for low and medium voltage cable connector, this connectors are researched and designed by us, and we produce high-performance MV IPC connectors that comply with international standards EN 50483 testing scopes.

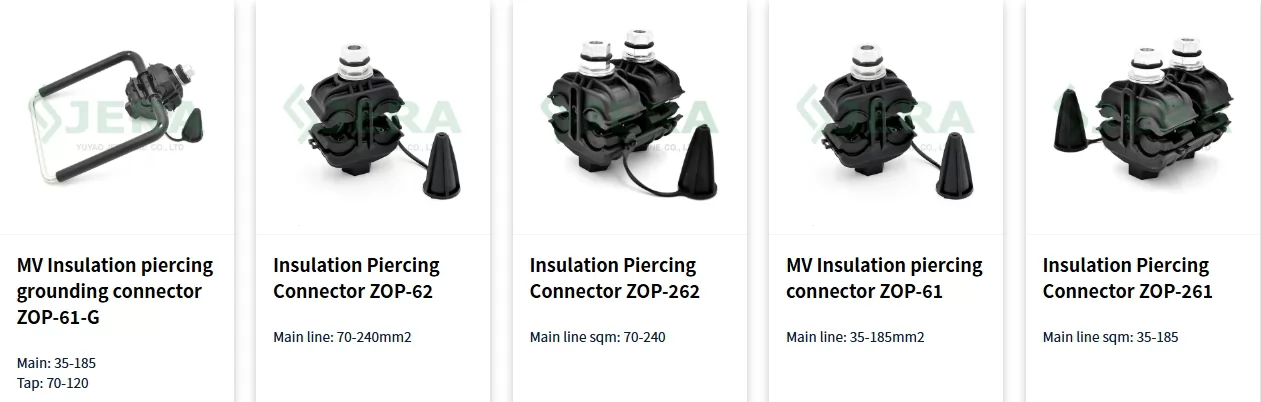

The following are Jera Line’s main models of MV IPC connectors.

Item No.	Main line, mm²	Branch line, mm²	Maximum Voltage, KV	Torque, N*m
ZOP-61	35-185	35-185	36	16
ZOP-62	70-240	70-240	36	18
ZOP-261	35-185	35-185	36	18
ZOP-262	70-240	70-240	36	18
ZOP-61-G	35-185	70-120	36	18
ZOP-62-G	240-300	70-120	36	21(±2)

Key features:

1. Easy Installation: the installation only to insert the piercing plate into the conductors without stripping the insulation, it doesn’t require any tool, only shear-head bolts or torque nut for consistent tightening force.
2. Medium Voltage Rated: It designed for voltage up to 36 kV, suitable for MV overhead distribution lines.
3. Torque-Controlled Shear Head Bolts: Ensures proper tightening force during installation, only if the bolt has sheared off, the required torque has been achieved.
4. Stronger contact teeth: Jera Line produce longer and thicker teeth in MV IPC connectors
5. Harsh Environmental Resistance: Resistant to UV, salt spray, and corrosion, with no need for frequent maintenance.
6. Multi-Conductor Compatibility: Jera Line offers a variety of MV insulation piercing connectors compatible with various conductor sizes.
7. Competitive price: Jera Line’s location is in China with organized production process, with small brand cost cut advantage.

Jera Line’s Medium-Voltage IPC Connector compliance standard EN-50483

Jera Line’s Medium voltage insulation piercing connector is manufactured according to international standard EN 50483, this is a European standard that applies to connectors used in low and medium-voltage electrical networks.

Jera Line has the in-house laboratory with testing equipments which allow us to do the routine test according to EN-50483 standard.

• Electrical aging testing equipment for Electrical aging test
• Solar Radiation& Temperature&Humidity aging equipment for Climatic aging test
• Dielectric water tank for Dielectric voltage test in water
• Torque tool for shearhead function test and connector bolt tightening test.

Why Choose Jera Line as Your MV IPC Manufacturer?

Jera Line committed to manufacture high-quality and cost-efficiency power system accessories for over ten years, and becoming a lead manufacturer in this field.

Major Advantages:

1. A Direct factory from China.
   Jera Line owns a big factory with over 5000㎡ facilities, including plastic injection moulding workshop, moulding and tooling workshop, and assembly workshop. If you directly contact the original suppliers, unnecessary costs can be reduced.
2. Superior Quality Control & Testing.
   The products undergo comprehensive testing in our in-house laboratory to guarantee the high levels of quality and durability.
3. Products Comply with International Standard.
   The MV IPC connector made by Jera Line strictly complies with EN 50483, while other types of connectors are produced in accordance with NF C 33 0202, NF C 33 041, IEC 61238-1.
4. OEM and ODM Service.
   Jera Line offers both OEM and ODM service to support customers in securing more engineering projects and business partnerships.
5. Offers A Wide Range of MV overhead line products:
   • Cable spacer CS-1-15KV: This Ratchet Spacer is engineered for use in overhead distribution networks where jacketed conductors are supported by a messenger acting as the neutral conductor.
   • MV Tension Clamps PA-2400: The MV ABC tension clamp can be used in combination with IPCs to eliminate short circuit event.
   • HDPE light weight insulator PPI-1-150-55: Applied to overhead MV power distribution lines, PPI-1-150-55 functions to fix the conductor to its supporting phase conductor hardware.
   • Insulator performed ties: Is used to bundle and secure cables and wires onto HDPE insulator.

Conclusion：

With years of experience in medium-voltage circuit connection solutions and a comprehensive product portfolio, Jera Line is a trusted and exceptional partner in the industry.

Please feel free to contact us for more information!
