Shearhead Connector Lugs Long Palm Long Barrel, it is a specialized type of mechanical connector used primarily in overhead transmission and distribution lines to join conductors or cables while providing mechanical strength and electrical conductivity. This design balances ease of installation with robust performance, making it a critical component in reliable electrical connections.
What models of Two-Hole Shear Bolt Lugs does Jera Line offer?
Jera line, a direct factory from China who specialized in producing 2-Hole Terminal Lugs, is committed to providing the market with high-quality, cost - effective products.

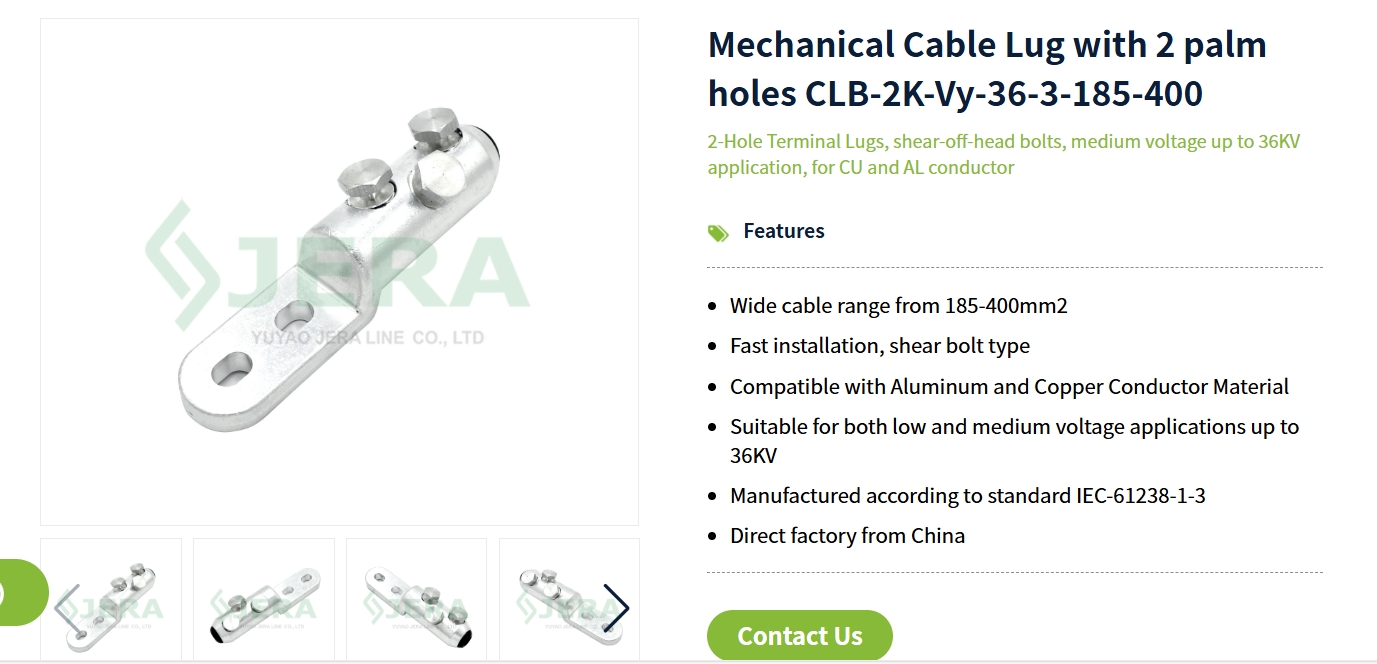

Key Model of Aluminum Two-Hole Connector Lugs by Jera Line：
1. Key Features
• It has wide cable range from 185-400mm2
• Easy and fast installation with standard socket wrench, shear bolt type
• Compatible with Aluminum and Copper Conductor Material
• Suitable for both low and medium voltage applications up to 36kV
• Improved conductivity & longevity (long barrel increases contact area)
• Compact design fits in tight environments (e.g., switchgear, cable terminations)
• 3 shear-head bolts ensure better contact with conductors
• Manufactured according to standard IEC-61238-1-3
• Direct factory from China
Shear Head Bolts
• Material: Tin-covered aluminum alloy with a high-lubricity coating.
• Design: Equipped with three hexagonal shear-head bolts that break off at a predetermined torque.
• Function: Ensures consistent installation torque, preventing over-tightening and potential conductor damage.
Long Palm (Handle)
Material: Tin-plated aluminum alloy.
• Design: Extended palm provides a larger surface area for better grip and load distribution.
• Function: Enhances mechanical stability and durability of the connection.
Long Barrel
• Material: Tin-plated aluminum alloy.
• Design: Cylindrical section accommodates conductor sizes ranging from 185 mm² to 400 mm².
• Function: Increases contact area to minimize resistance and improve electrical conductivity, especially beneficial for larger conductors requiring higher tensile strength.
3. Applications
• Overhead LV & MV power lines (transmission & distribution), suitable for both aluminum and copper materials
• It can be connect to a flat bar or equipment pads equipped with 2-hole spacing for low and medium voltage applications up to 36 kV
• They are suitable for both outdoor and indoor use, available with various palm hole sizes. Used for Power Systems, Industrial & Utility Networks, Renewable Energy and etc.

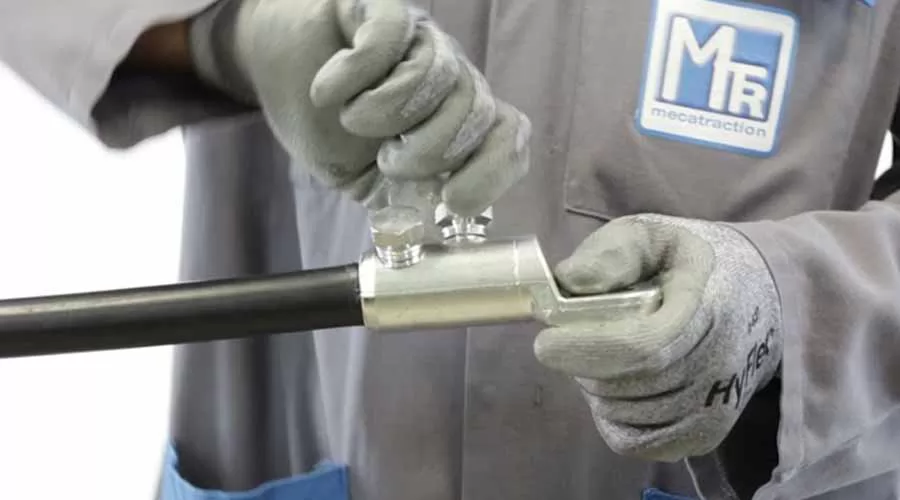

4. Installation Guide
• Prepare the Cable
Cut the cable straight.
Strip the insulation to expose the conductor.
• Loosen Bolts
Slightly loosen the shear bolts for easier cable insertion.
Never remove them completely—this can damage threads.
• Insert the Conductor
Push the stripped cable fully into the barrel until it stops.
•l Tighten Until Bolts Snap
Use a wrench to tighten each bolt one by one.
Stop when the bolt heads shear off—this means proper torque is reached.
• Final Check
Ensure all bolt heads have snapped off.
Confirm the cable is securely clamped and won’t pull out.
Why choose Jera Line as your Extended Palm shearhead Lugs supplier?
By eliminating middlemen, Jera Line offers cost-effective solutions with streamlined communication.
2. High-quality products
Products are manufactured according to international standards (IEC-61238-1-3) and undergo rigorous testing in Jera Line's in-house laboratory.
3. Advanced Manufacturing Facilities
Jera Line has over 5000㎡professional facilities, including molding and tooling workshop, plastic injection molding workshop, CNC machining workshop, assembly workshop etc.
4. Multiple options
Jera Line provides ODM customization and flexible OEM solutions tailored to customer needs.
5. Initial Product Guarantee
For any order started with Jera Line, any customer has an initial product guarantee of 5 years.
6. Non-MOQ for the first order
Jera Line genuinely looks forward to cooperating with customers worldwide and is confident in establishing long-term partnerships with you. Therefore, we don’t set a MOQ for our first order to start our relationship.
Conclusion
Jera Line offers a comprehensive range of Two-Hole Shear Bolt Lugs, including models like CLB-2K-Vy-36-3-185-400, CLB-2K-VyT-36-2-70-240. They feature shear-head bolts for easy installation, compatibility with aluminum and copper conductors, and are manufactured according to IEC-61238-1-3 standards. Jera Line's commitment to quality, advanced manufacturing facilities, and customer-centric policies make them a reliable supplier for electrical connection solutions.
For more information, feel free to reach out anytime—we’re here to help!
