Understanding Insulation Piercing Connectors (IPCs) TTDC 45401 FA
The TTDC 45401 FA is a type of insulation piercing connector,
which is mainly used for branch connections of insulated cables. It is manufactured by Sicame and has the following characteristics:
Basic composition: It is mainly composed of a housing, piercing blades, a waterproof rubber ring, and a torque bolt.
Scope of application: It is suitable for branch connections of insulated cables with copper and aluminum conductors ranging from 50 mm² to 120 mm².
Jera Line is a leading manufacturer located in China who produce low and medium voltage insulation piercing connectors.

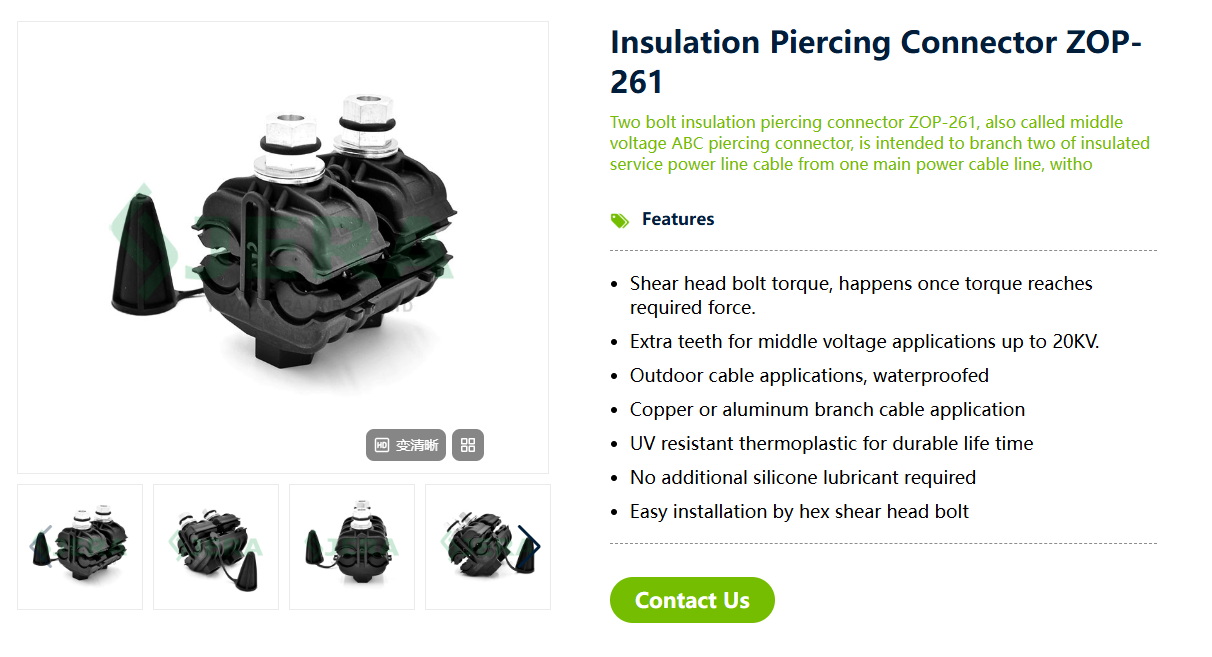

ZOP-261 is one of the IPC model from Jera Line, suitable for MV overhead cable connections.
|
Item No. |
Main conductor mm² |
Torque N*m |
Conductor type |
|
35-185 |
18 |
AL and CU |
|
|
TTDC 45401 FA |
50-120 |
16 |
AL and CU |
1）Low&Medium voltage Overhead Cable Systems
It is applicable to the branch connection of low&medium voltage insulated overhead cables
2）Building Power Distribution Systems:
In building power distribution, it is used for the branch connection of cables, such as the connection between the main power supply line and the branch lines of each floor or each electrical equipment.
3）Streetlight Power Distribution Systems:
It is suitable for the branch connection of streetlight power - supply cables.
Both IPCs deliver exceptional performance in their respective fields. Jera Line’s ZOP-261 is often preferred for installations because of its superior resistance to environmental factors. The UV-resistant polymer sheath and tin-coated AL teeth offer high corrosion resistance and also ensure the IPC can be used in humid or high-temperature environments.
In conclusion, Insulation piercing connector ZOP-261 has the same function as IPC TTDC 45401 FA, for the application size, Jera Line’s IPCs has more advantages on main cable size. Jera Line’s ZOP-261 can be a great alternative to IPC TTDC 45401 FA.
Jera Line is a leading manufacturer from China, offering various products for low-voltage and medium-voltage cable accessories. Choosing Jera Line comes with the following benefits:
Jera Line’s IPCs undergo strict testing to ensure durability and reliability. Products comply with international standards EN-50483-4 and NF C 33 020, and have passed the third-party type test conducted by an independent laboratory.

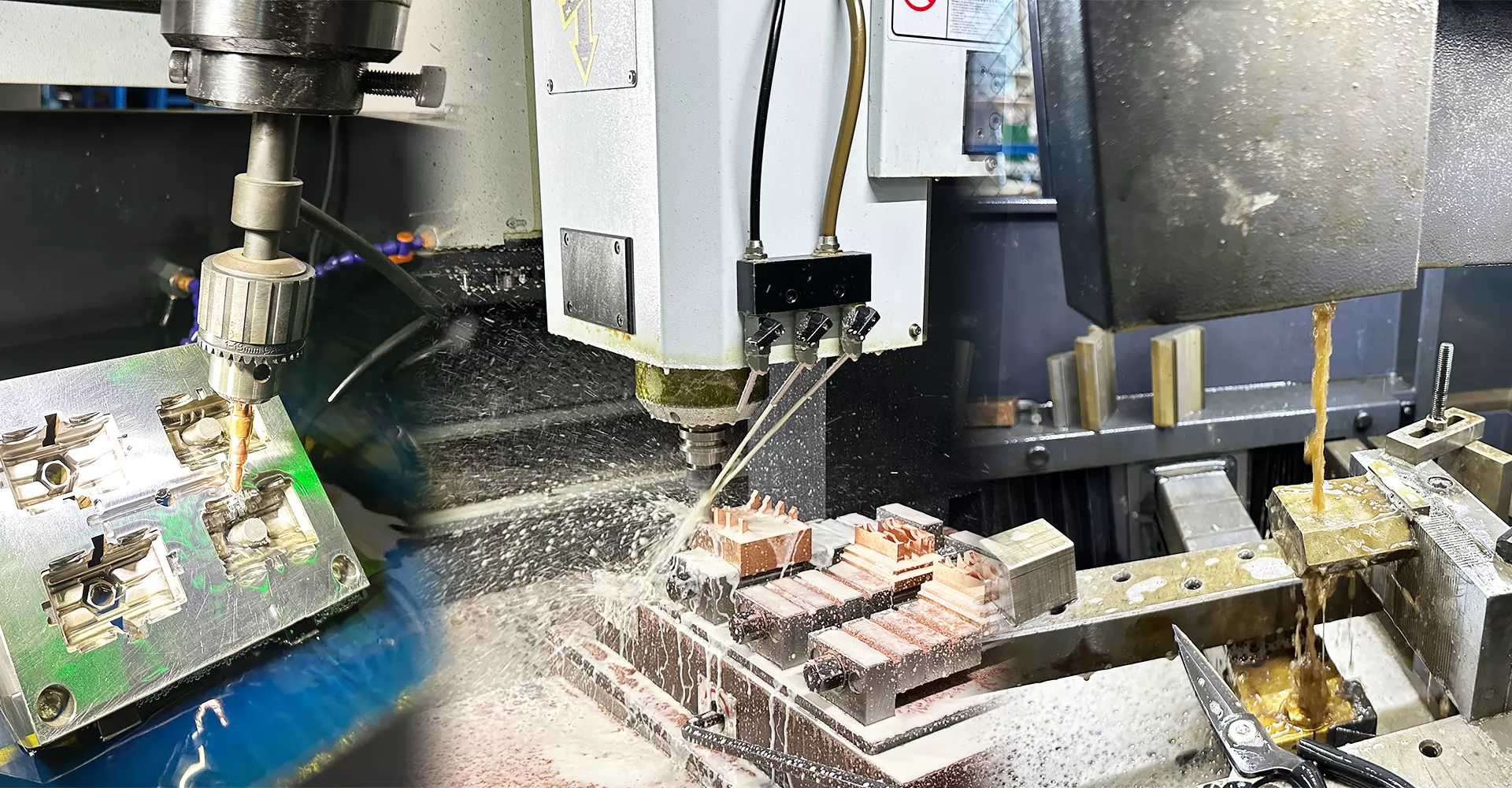

Jera Line integrated the essential production equipment and technologies required for manufacturing power cable connectors, which includes a plastic injection moulding workshop, a moulding and tooling workshop, an assembly workshop. Benefiting from this, Jera Line has the capability to manufacture products and meet the shipping date.
Jera Line has established great partnership with customers worldwide. These customers are from over 30 countries, including those from Africa, Southeast Asia, Eastern Europe, Western Europe, Central Asia, the Middle East, etc.
Smaller brands tend to be more flexible in their product policies and offer more attentive customer service, while also helping you save a significant amount of money. Jera Line’s products are cost-effective, offering great quality.
Jera Line invites any inquiries you may have and is committed to providing prompt responses. Feel free to reach out to us using the contact details below:
Our E-mail address: info@jera-energy.com
Our Energy WhatsApp: 86 - 13373899572
Contact Page: Contact Us - JERA LINE (all contact information is available here)
Jera Line is a manufacturer combined with a foreign trade company with over 10 years of experience. Engaged in low-voltage and medium-voltage electrical systems, Jera Line offers a complete range of IPCs 1KV and 36KV and other accessories. Choosing Jera Line as your IPCs supplier is a wise decision.
Please don’t hesitate to contact us!!
