IEC 61643-11 is an international standard that specifies the requirements, testing, and performance criteria for part 11, which pertains to low-voltage surge arresters connected to low-voltage distribution systems (up to 1,000 V AC). It aims to ensure surge arresters provide reliable protection against transient overvoltages caused by lightning or switching surges in electrical distribution networks.
A surge arrester is a device designed to protect electrical equipment from overvoltage transients by diverting surge current safely to the ground. It limits the voltage across the protected equipment, preventing damage caused by lightning strikes, switching operations, or other transient phenomena.
Jera Line is a direct manufacturer who produce low voltage Surge Arrester
The low voltage surge arresters were design and manufacture by a direct factory Jera Line, the metal oxide surge arresters is a protection devices comply with IEC 61643-11.

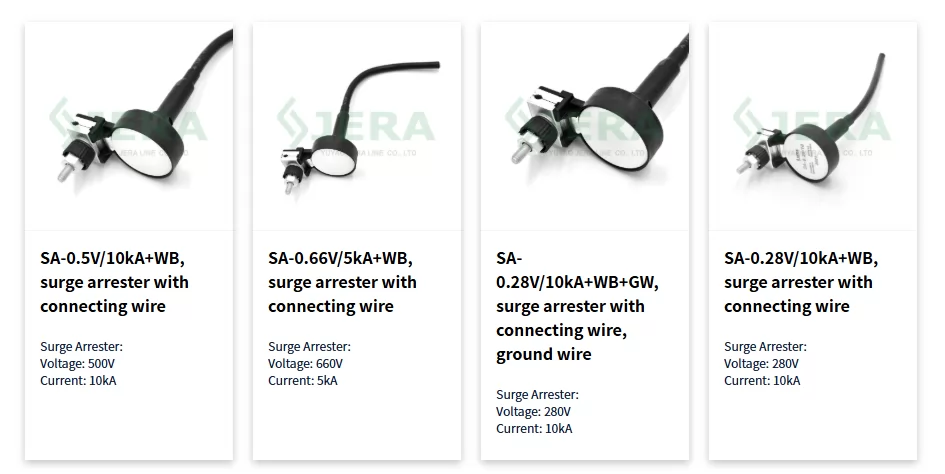

1. Key models:
|
Product code |
|||
|
Max allowable voltage, V |
280 |
500 |
600 |
|
Voltage protection level, V |
1100 |
1680 |
2465 |
|
Nominal discharge current, kA |
10 |
10 |
5 |
|
Maximum discharge current, kA |
40 |
40 |
35 |
|
Short-circuit withstand capability, kA |
4.5 |
4.5 |
4.5 |
2. Key features:
3. Insulation piercing connectors for surge arresters
Jera Line produces the insulation piercing connectors to be used together with low voltage metal oxide surge arresters, this is due to Jera Line is a direct factory, it has own research and design department, molding and tooling workshop, plastic injection molding workshop and so on.
Low voltage surge arrester insulation piercing connevtor ZOP-9.22(L)
It’s designed to equip with a threaded hold for M8 bolt surge arrester, for aluminum cable size 16-120/16-95mm2, in low voltage power cable system
Insulation piercing connector for surge arrester ZOP-23
It designed to use with low voltage surge arrester for both aluminum and copper cables, size from 10-95/1.5-70mm2
Surge arrester IPC connector ZOP-30
It designed to use with surge arrester up to 1KV, the cable application size is 16-185mm2.
Jera Line is a leading manufacturer of products for low and medium voltage overhead cable solutions, the one of the main solution is LV overhead line production accessories. To choose Jera Line as your low voltage surge arrester supplier due to the following reasons:
Jera Line’s surge arrester comply with IEC 61643-11 international standards, ensuring reliable and safe products.
Utilizes high-quality materials, robust design, and rigorous testing to ensure longevity and performance.
Offers a different specification of surge arresters, which can be apply with it’s own insulation piercing connectors, easy installation.
Provides competitive pricing as it’s a direct factory location in China.
The sales team have strong experience in power cable area products, with technical assistance.
Jera Line has 5 years warranty of products, before shipping, the products will be tested in Jera Line in-house laboratory, to ensure the quality.
Excellent resistance to humidity, pollution, UV exposure, and extreme weather conditions, making Jera Line’s products ideal for outdoor and harsh environments.
With certified products, factory-direct pricing, fast global delivery, and proven technical performance, Jera Line is the trusted partner for your low voltage surge protection needs. Our commitment to quality, innovation, and customer support ensures that you receive reliable products for the energy infrastructure.
Choose Jera Line—where quality meets value, welcome to contact us!
