The Wraplock top tie is commonly used to lock HDPE insulators.
The polymer tube in the center of Jera Line's Wraplock Top Tie is a critical design element that enhances both mechanical protection and electrical performance when securing conductors to insulators in overhead power lines.
-
Insulation Protection: The polymer tube prevents the metal tie from directly contacting the bare conductor or insulator surface. This helps prevent short circuits and electricity leakage, to ensure the insulation performance and operational safety of the line.
-
Reduced Friction During Installation: The tube minimizes friction between the bundling tie and the conductor or insulator, safeguarding the outer layer of the conductor and the insulator from damage, thereby prolonging their service life.
-
Corrosion Resistance: These tubes help isolate the bundled metal tie from harsh environments, such as moisture, salt, and chemicals, preventing rust and corrosion of the metal tie.
-
Even Force Distribution: The tube helps distribute the tightening force of the bundling tie more evenly, ensuring that the conductor experiences uniform pressure on the insulator.
What model of Wraplock Top Tie Does Jera Line Produce?
Jera Line is a factory specializing in the production of high-quality insulator top ties for power systems. The wraplock top tie LJS-S-73-8.4 is our core products.
Features:
-
Conductor diameter: 8,31/8,63mm
-
Components: Aluminum Alloy bundled tie and UV resistant Polymer tube
-
High Corrosion Resistance: The body of top wrap lock tie is made of Aluminum, it will set off a chemical reaction with oxygen and form a dense, protective oxide layer (Al₂O₃) on its surface, acting as a natural barrier that prevents further corrosion.
-
Durability and Low Maintenance Cost: The material of top wrap lock tie is suitable for extreme weather conditions, leading to a long service life and requiring minimal maintenance.
-
Easy-Installation: No extra wrapping insulation is needed for the banding tie, and it can be installed by a single person.
-
Versatile Application: Can be applied to both bare and insulated conductors. Note: For insulated conductors, strip the insulation before installation.
-
Great Mechanical Strength: Made of high-strength, corrosion-resistant aluminum alloy wire, coated with a sand layer and adhesive, making them with great mechanical strength and can be securely fixed in the proper position. And has tested by Jera Line’s in-house laboratory.
Why Choose Jera Line as Your Wraplock Top Ties Manufacturer?
-
Jera Line is a direct factory from China, cutting out the middlemen to reduce price markups.
-
Jera Line manufactures products using ISO 9001 certified processes and has established its own in-house laboratory.
-
Jera Line employs skilled engineers and workers, ensuring consistent quality and production efficiency.
-
Jera Line, based in China, offers competitive prices by eliminating middlemen markups, providing the market with cost-effective solutions.
-
Jera Line has a complete quality control process, ensuring strict quality management from raw materials to finished products.
-

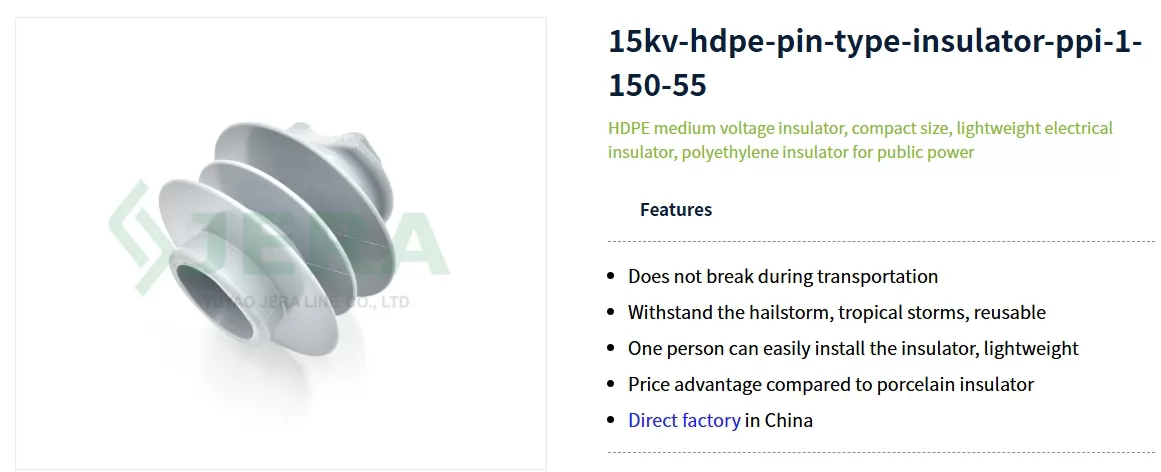

Jera Line provides compatible insulator products HDPE light weight insulator PPI-1-150-55, eliminating the need to source from multiple suppliers and saving time and effort.
How Can We Purchase Wraplock Top Tie?
You can contact Jera Line and purchase wraplock top tie through the following methods:
You can find all of our contact information in this page: Contact Us - JERA LINE
We expect to send you more information about us, and we can also arrange a virtual tour of our factory via video call.
Conclusion：
Jera Line has years of foreign trade experience, with customers from over 30 countries worldwide, making it a quality preformed insulator tie supplier.
Please feel free to contact us!
