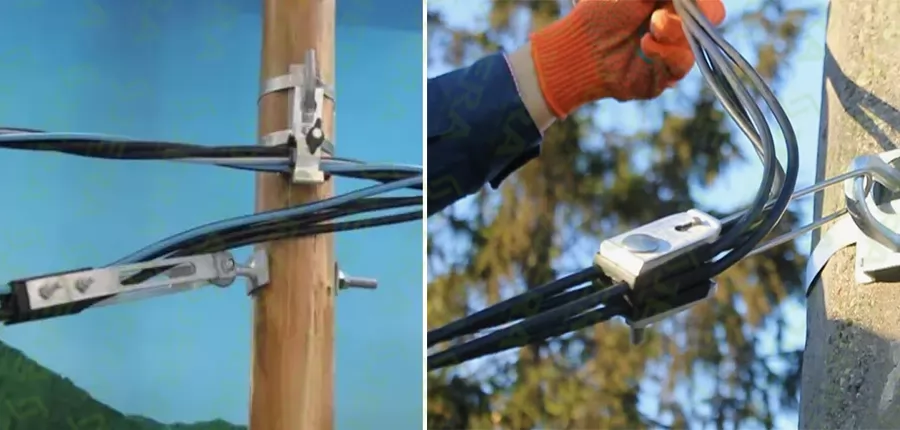

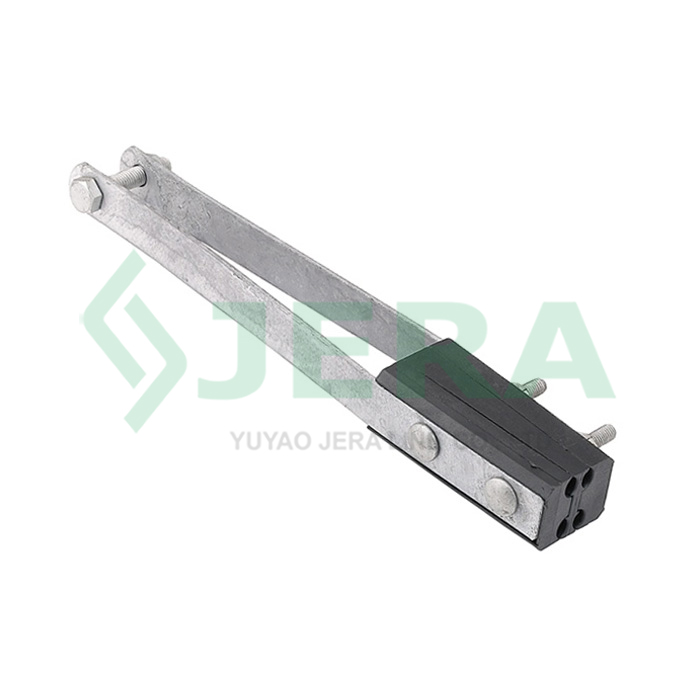

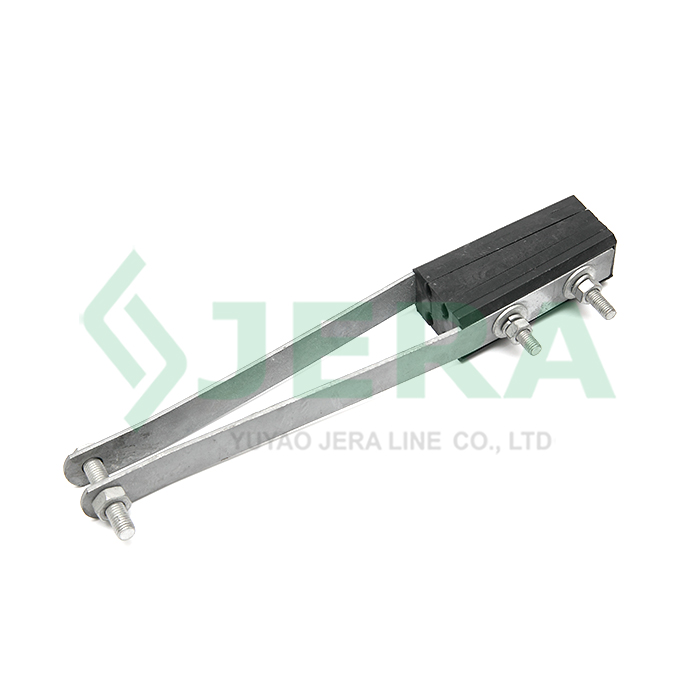

PA-495overhead line anchor clamp is designed for reliable anchoring of low-voltage ABC (Aerial Bundled Cable) systems. Its compact design and self-tightening wedge system guarantee stable cable retention without damaging insulation, making it an ideal solution for utility companies, electrical contractors, and rural or urban grid installations.
Technical specification
Product code
Cable size, mm2
MBL, KN
PA-495
4x70-95
15

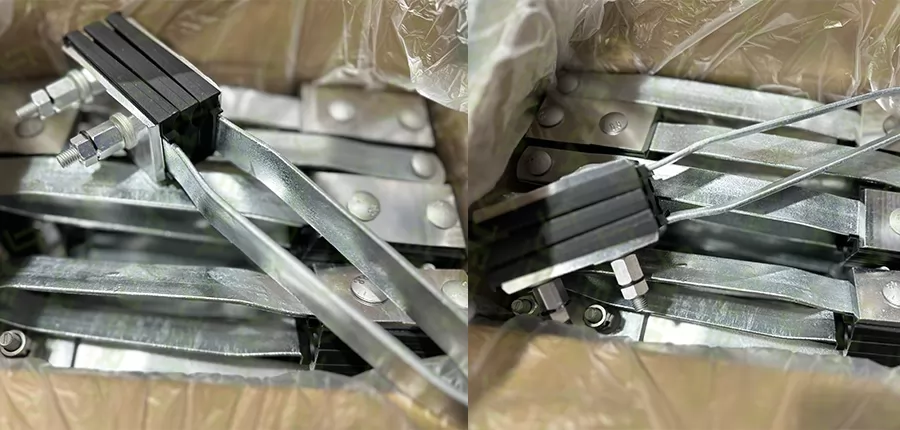

Components and materials
The low voltage overhead line anchor clamp PA-495 is produced by Jera Line --a Direct factory location in China, Manufactured from corrosion-resistant, UV-stabilized materials, this 4-core anchor clamp ensures long-term mechanical strength even in harsh outdoor environments. Its compact design and self-tightening wedge system provide stable cable retention without damaging the insulation. It consists of following main parts:
Components
Materials
Fixing nut
Hot-dip galvanized steel
Nuts
Hot-dip galvanized steel
Spring washers
Hot-dip galvanized steel
Washers
Hot-dip galvanized steel
Plates
Hot-dip galvanized steel
Outer wedges
UV resistant polymer
Inner wedges
UV resistant polymer
Bolts
Hot-dip galvanized steel
Fixing bolts
Hot-dip galvanized steel

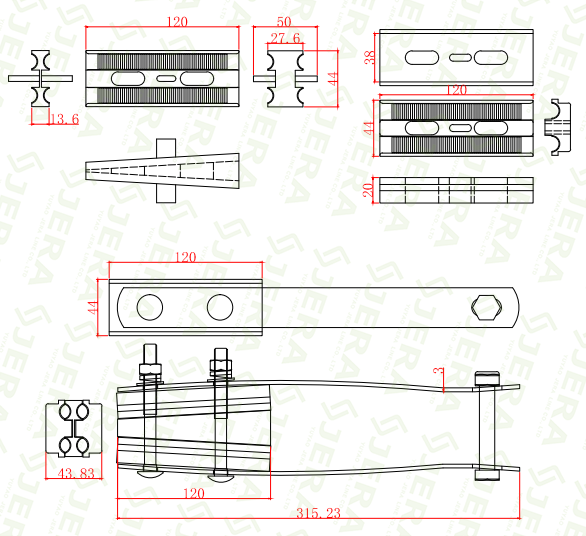

Dimensions
Test
Jera Line is a direct factory, with own in-house laboratory to do inspection during daily production and new production development, which allow us to satisfy difference requirements for our clients.

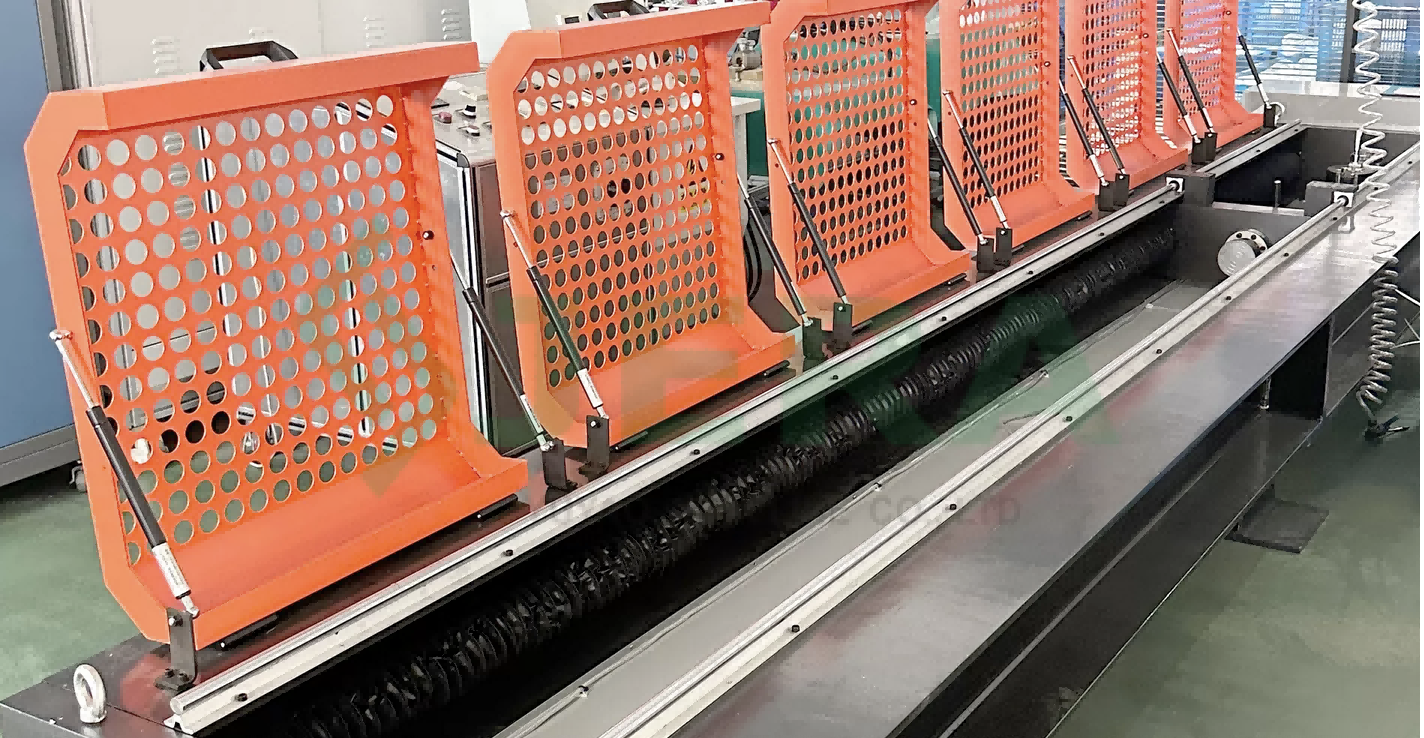

The PA-495 4-core cable anchor clamp has undergone rigorous Mechanical properties & performance validation and Environmental performance validation by Laboratory Testing Equipment. Such as:
