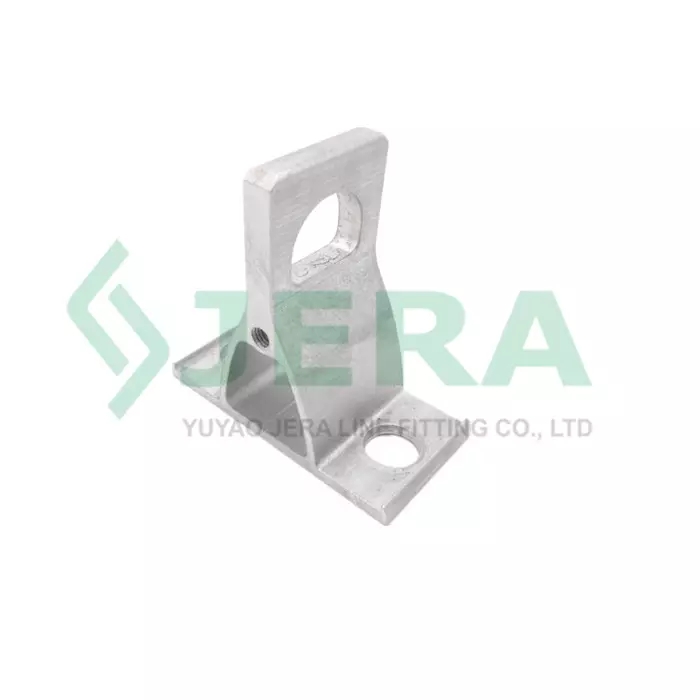

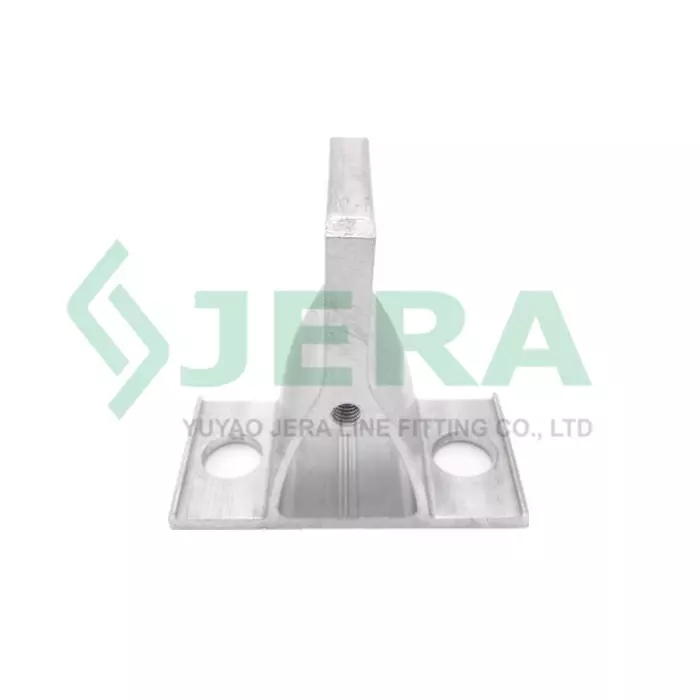

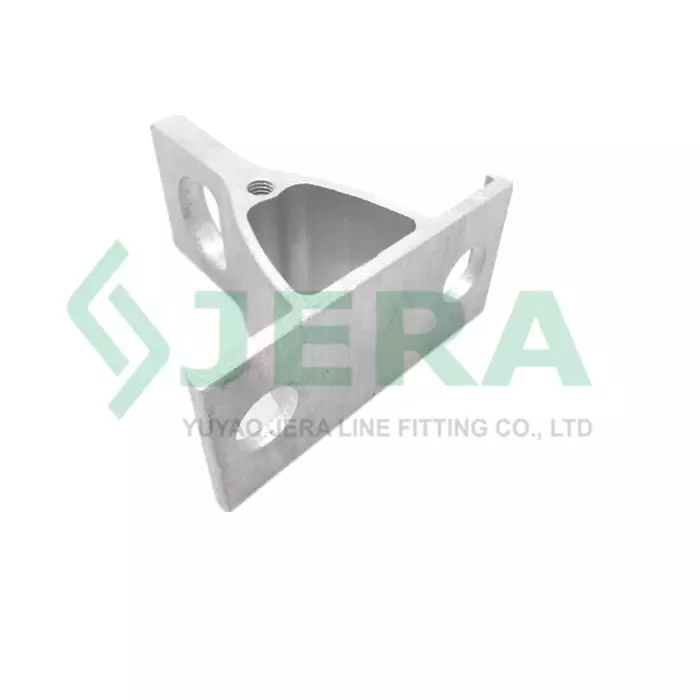

ABC tension bracket, CA-1500.1 either called low voltage anchor bracket, developed to fixed on wooden, metal or concrete poles, usually installed with low voltage anchor clamps for main cable during aerial low voltage electrical line constructions.
Features
Small size, easy operation
Superior mechanical tensile strength, up to 15KN
Aluminum alloy material guarantee long time usage
Fixed on pole by 2 stainless steel band (20 mm) or 1 bolts 14, 16 mm diameter
The suspension clamp is used for the direct suspension of round fiber
optic ADSS cables at intermediate poles on straight routes.
Technical specification
Code
MBL, kN
Weight, kg
Material

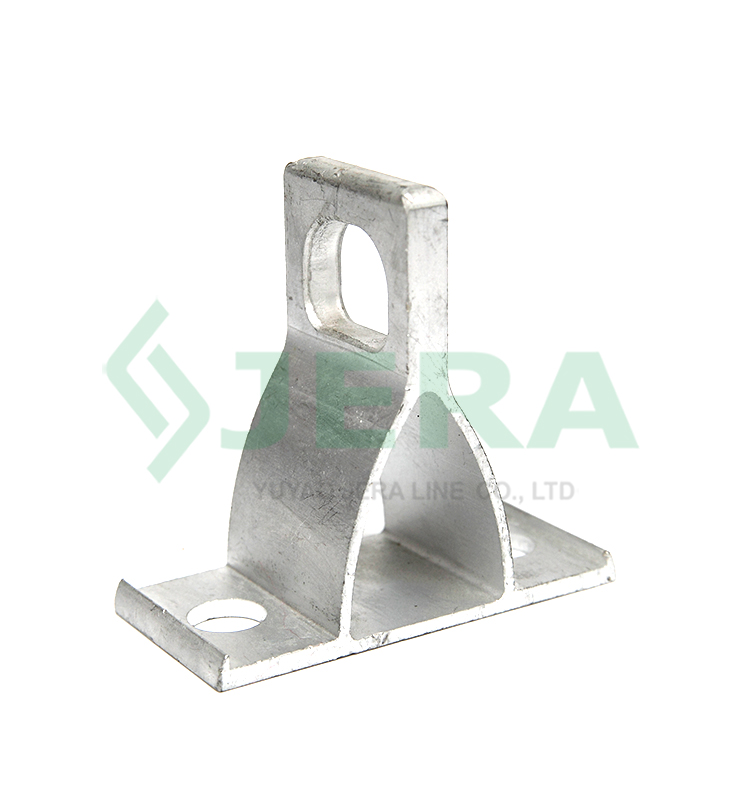

CA-1500.1
15
0.11
aluminum alloy
Components and materials

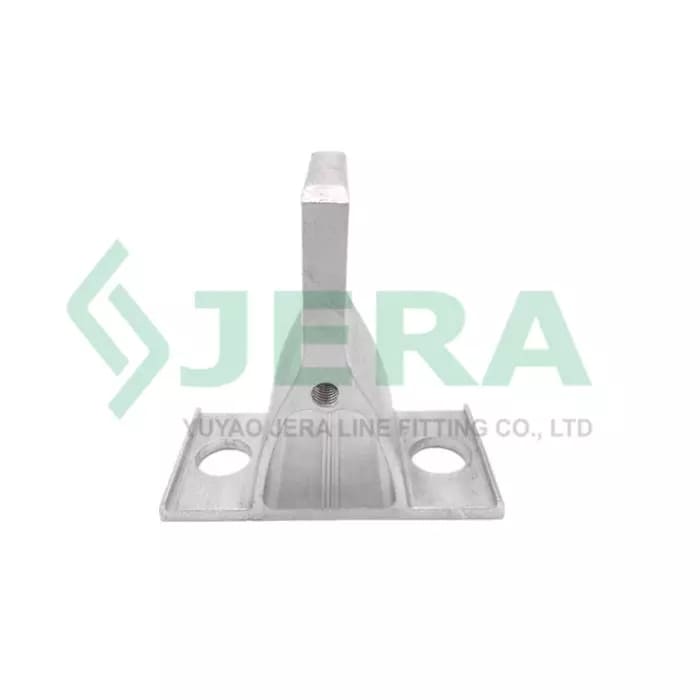

Aerial tension bracket is made of aluminum alloy which is weather
proof and high tensile strength, ideal product for various weather conditions. The
installation of this overhead anchor bracket is very easy, it can be fixed on poles by 2
stainless steel band (20 mm) or 1 bolts 14, 16 mm diameter.
Dimensions
Test
When the tensile load was reached 15.0KN, bracket did not show
any deformations or damages. The tensile load was reached 22.3KN the bracket did not show
any deformation. The tensile load was gradually risen up to 34.7KN , then the bracket was
broken . Bracket CA-1500.1 has passed the Tensile strength test. We certificate its quality
after inspection and approve for further usage.
