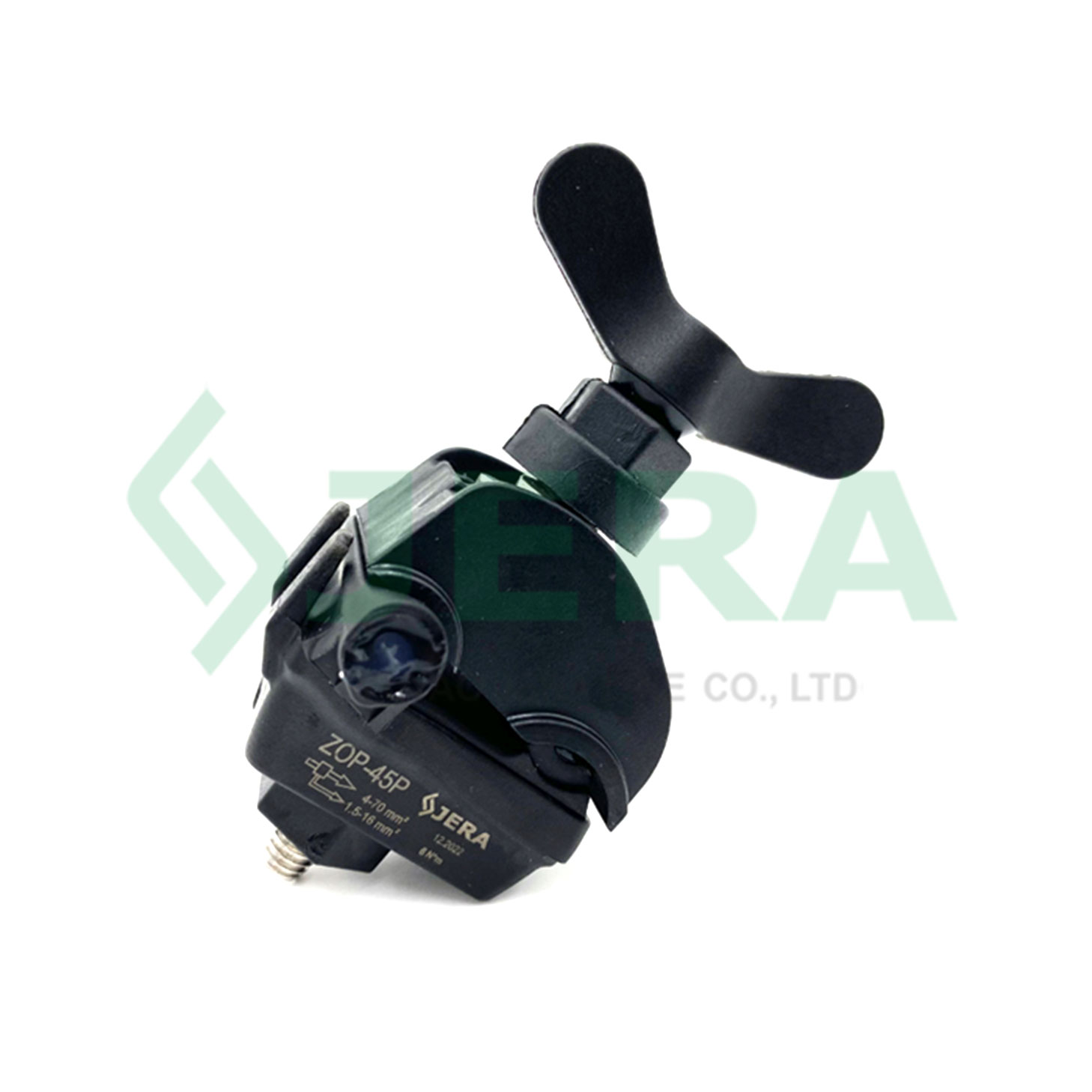

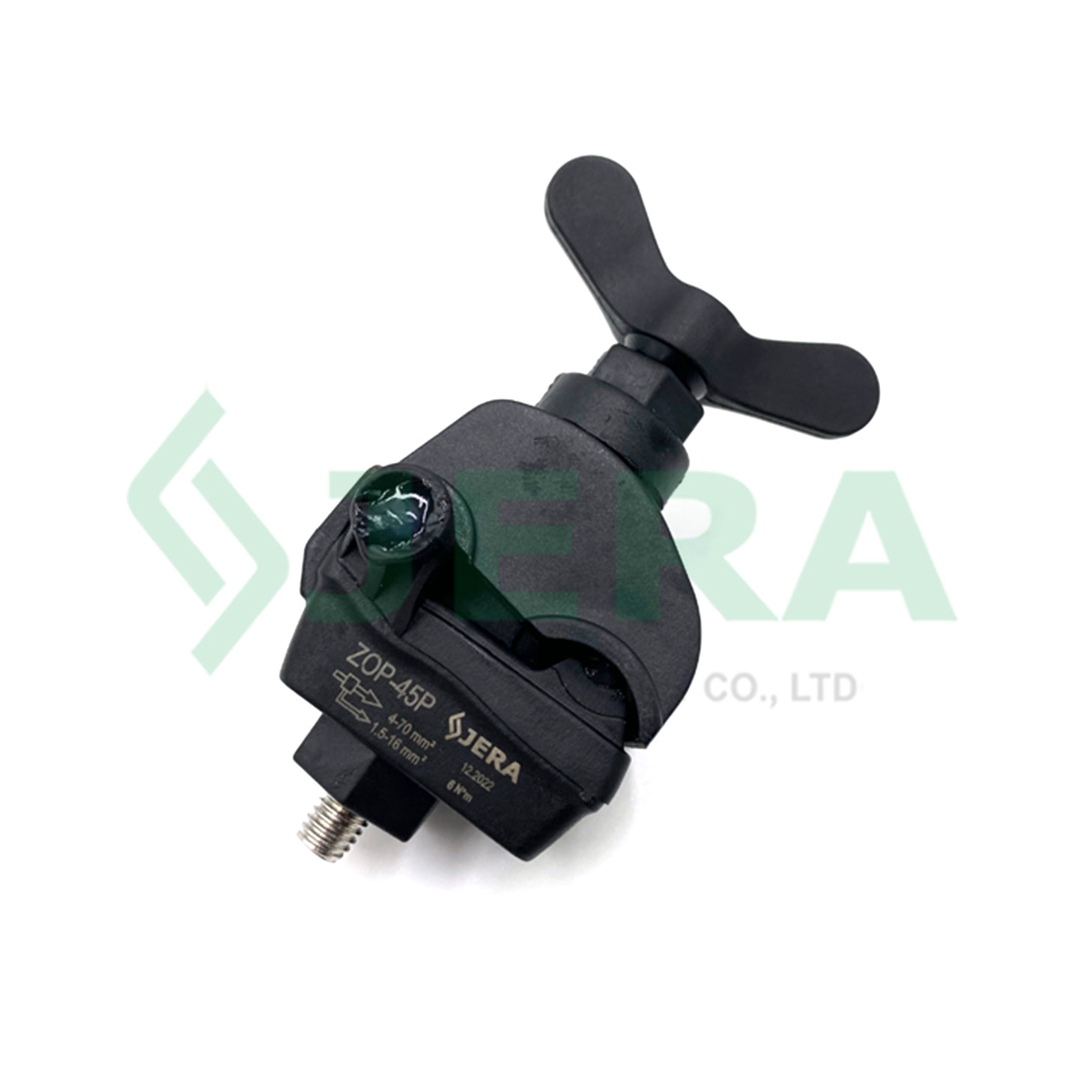

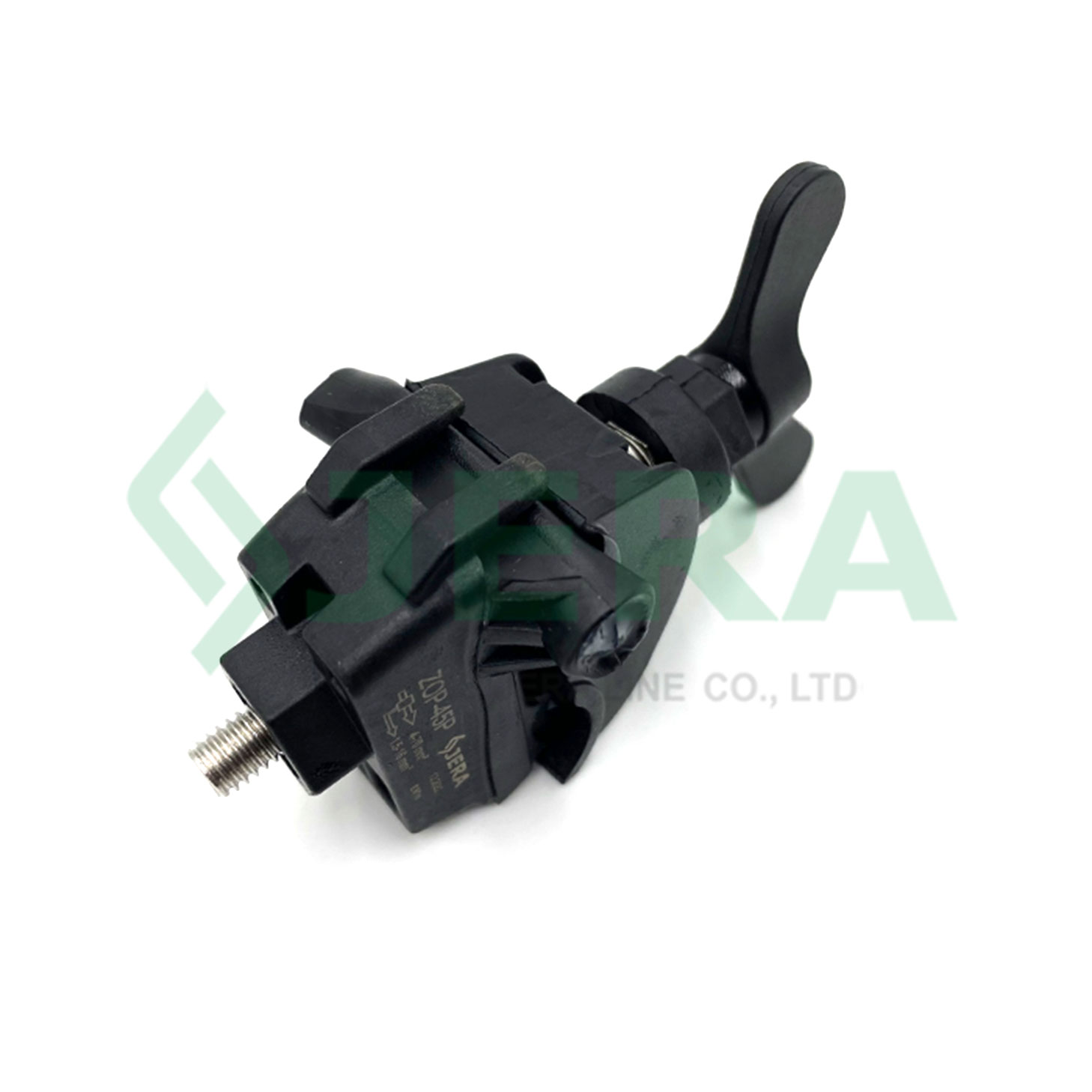

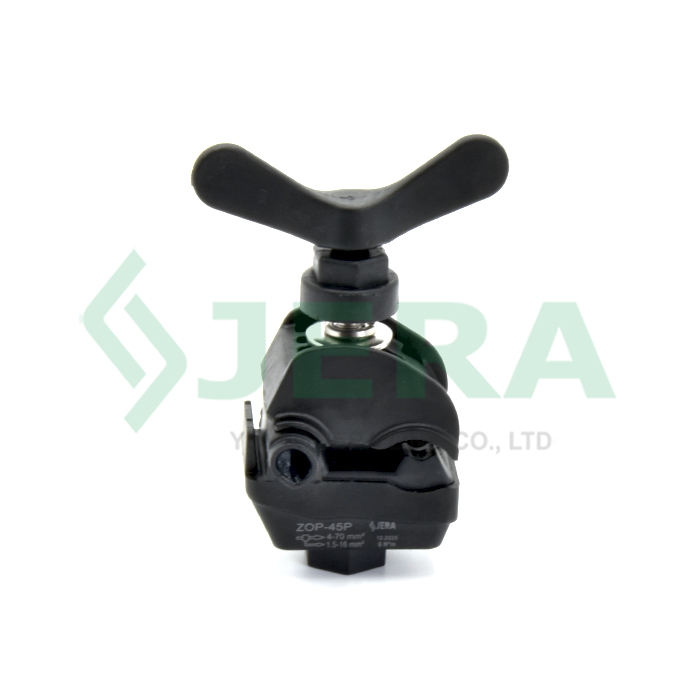

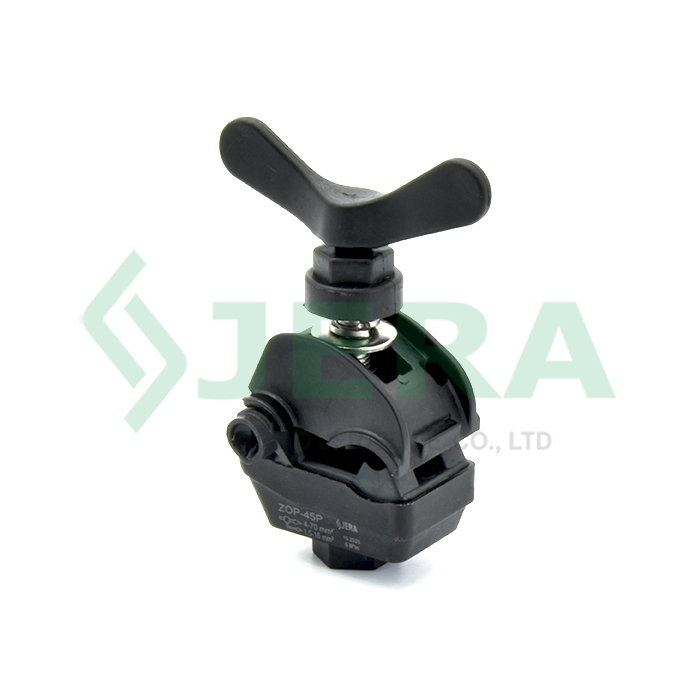

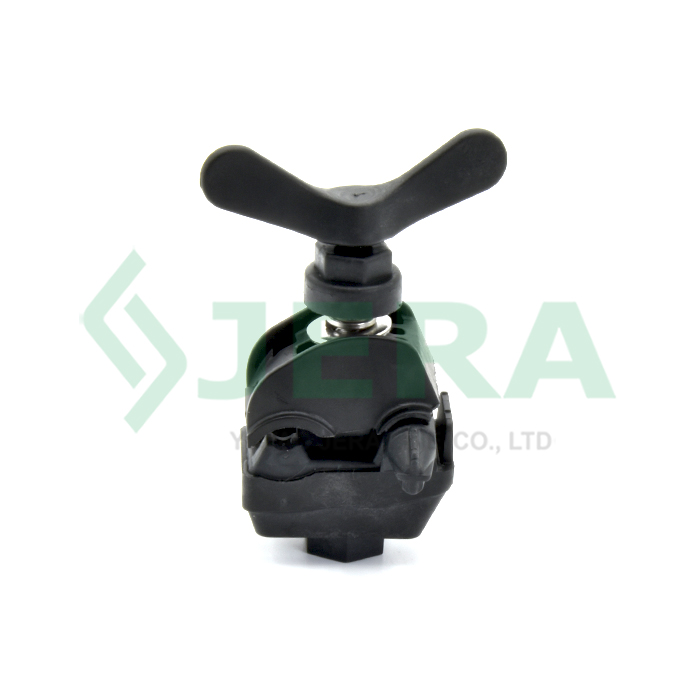

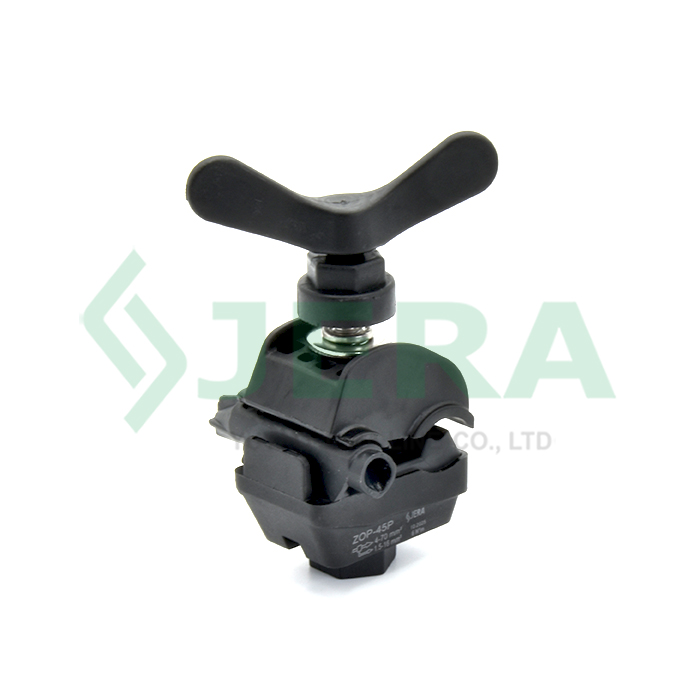

Insulation Piercing connector ZOP-45P (4-70/1.5-16)
ZOP-45P (4-70/1.5-16)
Description:
Insulation piercing connector ZOP-45P, also called electrical cable branching connector was developed to branch power cables in electrical distribution systems, like street lighting, outdoor electrical cable power devices etc.
- Application: copper and alum cables
- Main line: 4-70 mm2
- Branch line： 1.5– 16 mm2
- Torque: 6 N
- Product detail
- Specification
- Video
- Inquiry
Key features
- Live line installation, safe for installer.
- Tool free, hand shear off, takes 2-3 minutes to install
- Water resistant, weather proof.
- No need to strip insulated cable jacket
- Suitable for aluminum and copper conductors
- Manufactured according to the standard: EN50483-4:2009
- Competitive price
SPECIFICATION
This Insulation piercing connector are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the wing shear cap, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The wing shear cap are tightened until the heads shear off.

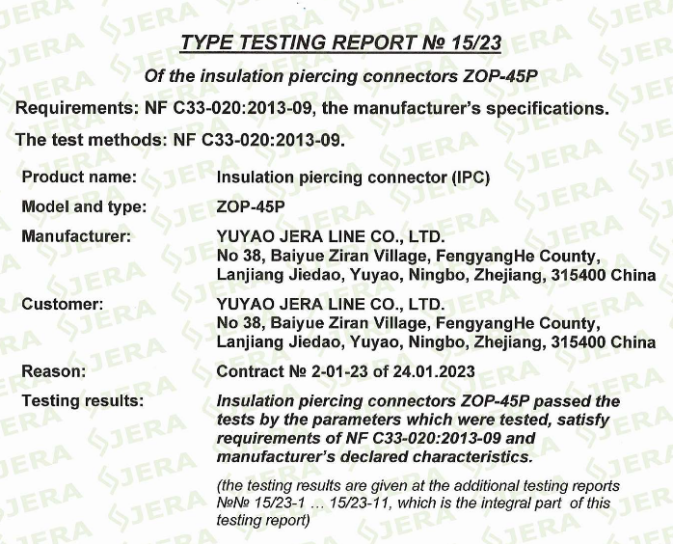

ABC cable piercing connector is made of UV resistant polymer, has tin covered teeth, and stainless steel hardware. All jera produced insulation piecing connectors had passed tests according to EN 50483, operation experience with temperatures ranging from – 20 °C up to +50 °C test, temperature cycling test, aging test, corrosion resistance test etc.
We produce this Insulated piercing clamps according to the test standard EN50483-4:2009. It successfully applied to many foreign tenders. Other piercing connectors are available either separately or together as assembly.
APPLICATION
Jera is a confident supplier for low voltage line accessories. The cable installation set for LV ABC construction includes: insulation piercing connector, tension clamp, tension bracket, pole hook, suspension clamp, suspension bracket, service or airdac clamp, wall mounts, mechanical cable lugs and connectors, stainless steel band, stainless steel buckles, and ABC tools.
Feel free to contact us for more information about this insulation piercing connector ZOP-45P price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Main line, mm2 |
Branch line, mm2 |
Torque, N*m |
Max current, amps |
|
ZOP-45P |
4-70 |
1.5– 16 |
6±1 |
63 |
