Two Bolt Insulation Piercing Connector ZOP-257

25-150/25-150 mm2

Features

Wide cable application size 25-150mm2
Easy installation by hex shear head bolt
Durable materials, anti-corrosion stainless steel bolt and washer, UV resistant Polymer body
Universal bimetal cables usage, Tin covered aluminum teeth materials in IPC
Outdoor usage Waterproof IPX68
Competitive price factory location in China

DESCRIPTION

TEST

REVIEW

Short description

Low voltage two bolt insulation piercing connector, 25-150/25-150 mm2 piercing connector with tin covered AL contact, Copper cable and Aluminum cable usage, up to 1 KV

Application

The two bolt conductor piercing connector ZOP-257 is intended to branch two of insulated service power line cable from one main power cable line in low voltage insulated ABC cable distribution networks, without cutting the jacket of cable, easy to install with a hex key.

Technical specification

Product code	Cable size, mm2		Torque, N*m
	Main	Tap
ZOP-257	25-150	25-150	16

Components and materials

Waterproofed two-bolt insulation piercing connector ZOP-257, is manufacturered and Research and Design RnD by Jera Line, a direct factory location in China,the IPC consissts of the following main part:

Components	Materials
Body and Seal	UV resistance two components insert molding of composite polymer and elastomer
Contact plate	Tin coated Aluminum
Bolt	two stainless steel bolts
Nut with shear-head	Aluminum alloy
Washer	Stainless steel
End cap	PP

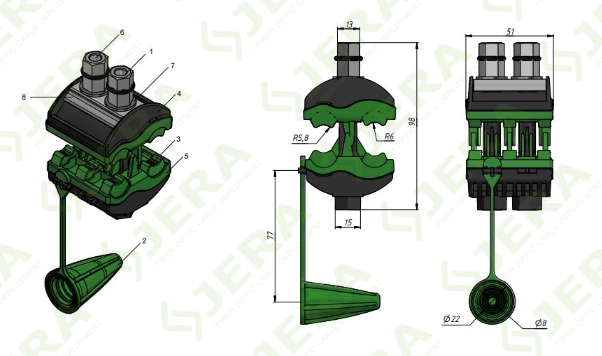

Dimensions

Test

Electric distribution tow bolt insulation Piercing Connector ZOP-257 has passed regular routine test by Jera line factory laboratory according to EN-50483:4 standard, the test scopes are as following:

l Visual examination

l Dimensional and material verification

l Test for permanent marking

l Shear head function test

l Dielectrical voltage test in water
