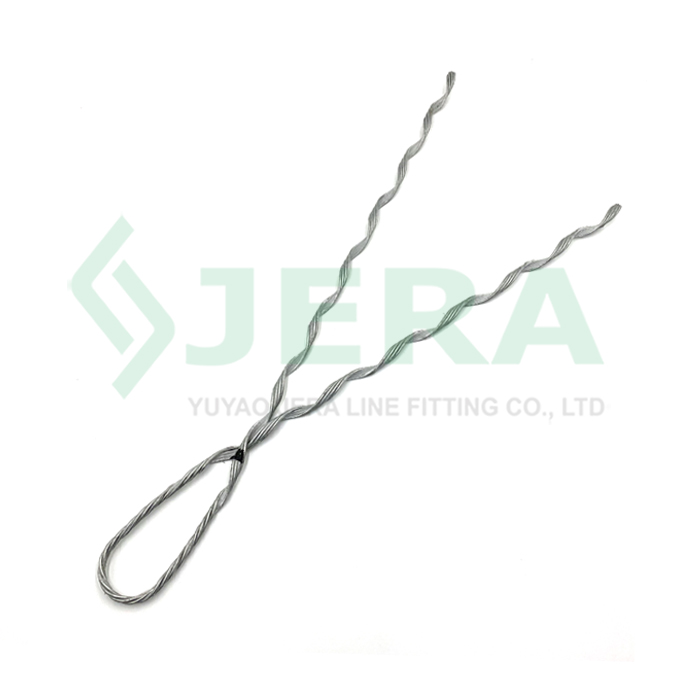

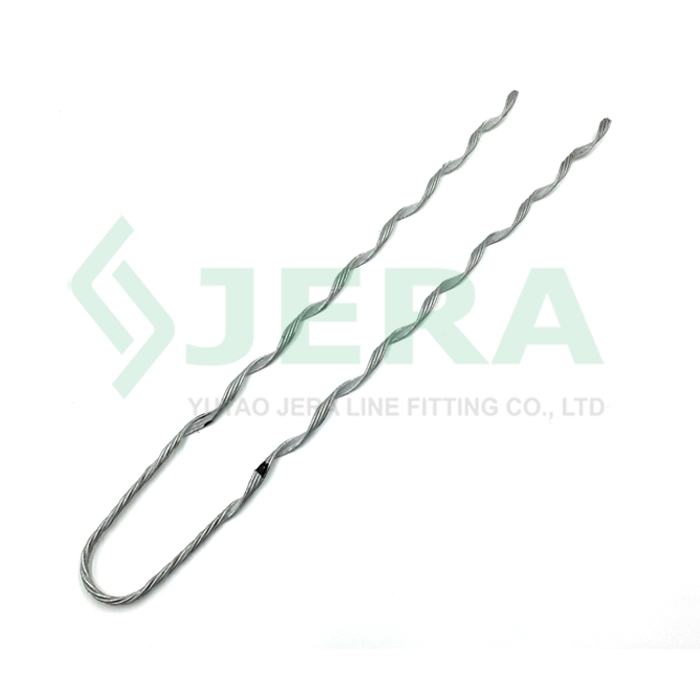

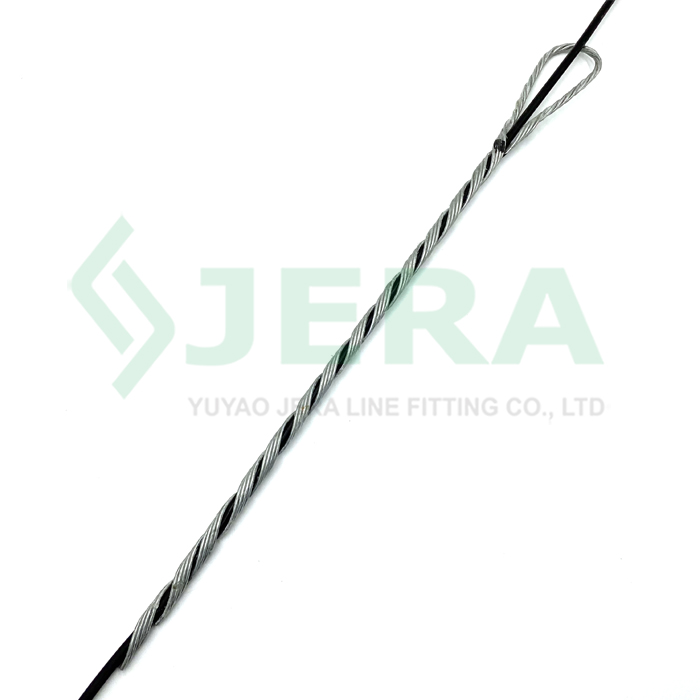

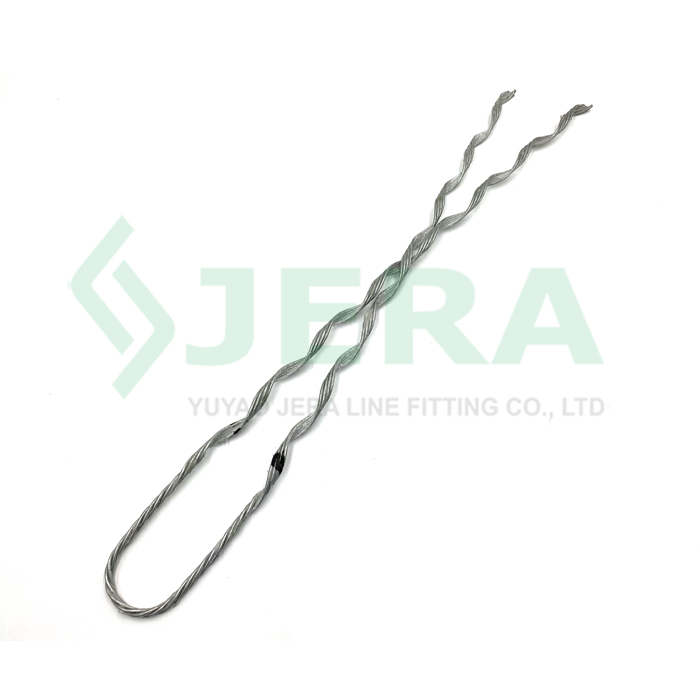

The LJS‑50 preformed guy grip is ACSR conductor fittings, designed for terminating and securing ACSR conductors in overhead power line systems. Its helical, preformed structure provides a strong, slip‑resistant hold, making it ideal for mechanical dead‑end applications where reliability and long‑term performance are essential.
Typical Applications：
1. Overhead Power Transmission and Distribution Lines
2. Guying and Structural Support
3. ACSR Conductor Termination
4. Renewable Energy Installations
Technical specification
Model
Conductor diameter, mm
Aluminum stranded conductor(LJ)
MBL, N
Length, mm
Weight, kg
Color code
LJS-35
7.35-8.26
35
5760
622
0.2
Red
LJS-50
8.27-9.25
50
7930
685
0.2
Green
LJS-70
10.4-11.68
70
10950
736
0.4
Blue
LJS-95
11.69-13.11
95
14450
800
0.4
Orange
LJS-120
13.12-14.66
120
19420
876
0.6
Red
LJS-150
14.67-16.59
150
23310
889
0.8
Black
LJS-185
16.60-18.77
185
28440
1016
1.1
Green
LJS-210
16.60-18.77
210
32600
1016
1.1
Green
LJS-240
21.27-24.05
240
36260
1155
1.7
Orange
Components and materials
Preformed guy grips LJS series are manufactured from high‑strength, corrosion‑resistant aluminum alloy wires, coated with a sand‑bonded abrasive layer and adhesive to ensure maximum gripping performance. This construction allows the grips to perform reliably in any environmental conditions, including coastal, industrial, and high‑humidity regions.
Jera Line is a Strand guy grips factory in China, producing reliable and cost‑effective preformed line products for global utility markets.
The products consist the following parts:
Components
Materials
Body
Aluminum
Test
The configuration of ACSR aluminum dead end grips is thoroughly tested in the Jera Line laboratory to ensure they achieve full rated tensile strength and minimize the risk of failure during service. Each product undergoes strict verification to guarantee long‑term reliability in overhead line applications.
Jera Line’s preformed product division is equipped with a complete range of testing equipment required to perform type tests for helical line products, including preformed guy grip dead ends.
