Insulation piercing connector, ZOP-57 (25-150/25-95)

Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Insulation piercing connector, ZOP-57 (25-150/25-95)
Model No. :

ZOP-57

Description:

Low voltage piercing connector ZOP-57, either called Insulation piercing clamp is developed to branch the insulated service electrical line from main electrical line, without cutting the sheath of main cable. It’s widely used in nowadays electrical line constructions.

  • Product detail
  • Specification
  • Video
  • Inquiry

Key Features

  • UV-resistant and waterproof materials
  • Use with insulated low-voltage cables
  • Convenient to install without cutting the jacket
  • Outdoor usage for construction applications like buildings, street lights.
  • Captive and flexible end cups
  • Manufacture according to the standard: EN50483-4:2009
  • PC supplier/factory direct price
Insulation piercing connector, ZOP-57 (25-150/25-95) Insulation piercing connector, ZOP-57 (25-150/25-95)

SPECIFICATION

Insulation piercing clamp

Analogs: P1X-95, P2X-95, ZOP-52, ZOP-54

ABC insulation piercing connector can be installed with LV ABC cables with insulated neutral messenger wire and self-supporting 4 cores cable system. Applied overhead, ZOP-57 can be insulated on Low voltage cable made of aluminum or copper material. Low voltage cable connector ZOP-57 can be used on cable lines up to 1000Vac (1000 V).

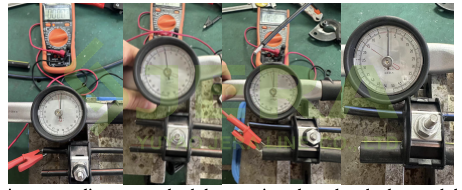

All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 30 °C up to +50 °C test, dielectrical voltage test in water, temperature cycling test, aging test, corrosion resistance test etc. We produce this Insulated piercing clamp according to the test standard EN50483-4:2009. It successfully applied to many foreign tenders.

read more

APPLICATION

china insulation piercing connector

Jera line is a direct insulation piercing connector manufacturer, e have introduced plenty of engineering know-how, to provide you with the ultimate in confidence when choosing our solution.

Insulated piercing clamp ZOP-57 can be supplied either separately or together as assembly with other needed Low voltage cable fittings, anchor clamps, suspension clamps, LV brackets, hooks that are in Jera LV ABC fittings product range.

Welcome to contact us for more information about this Insulation piercing connector price.

read more

Manufacturing

    app

Watch Our Factory Video

 Technical specification

Product code

Main line, mm2

Branch line, mm2

Torque, N*m

Weight, kg

ZOP-57

25-150

25-95

16

0.085
