In modern low-voltage overhead power distribution and utility renovation projects, reliable metal-oxide surge arresters play a decisive role for safe overvoltage protection, stable equipment operation and long-term outdoor anti-corrosion performance. Metal-oxide surge arresters are widely adopted for LV distribution networks, service entrance points and distribution-transformer LV-side protection, thanks to nanosecond response time, maintenance-free operation and weather-resistant properties. Many installers, distributors and EPC contractors are seeking reliable LVA-440B equivalent metal-oxide surge arresters for general-purpose overhead and panel protection assignments. Voltage surges — whether originating from lightning strikes, capacitor-bank switching, transformer energisation or sudden load changes — can reach several times the nominal system voltage in microseconds, degrading insulation and destroying sensitive electronics without proper clamping.
Jera Line SA-0.44kV/5kA+WB surge arrester is a robust upgraded protection solution engineered for overhead network construction and low-voltage grid renovation tasks. This blog walks through product definition, technical parameters, core features, real-world application scenarios and manufacturing advantages for global buyers.
SA-0.44kV/5kA+WB is Jera Line self-developed polymer-housed 1 kV metal-oxide surge arrester, also known as MOA surge protective device, designed for low-voltage overhead line and distribution-panel overvoltage protection during electrical network construction and retrofit. It acts as a high-performance functional equivalent for the widely-referenced LVA-440B model, very popular within power utility, municipal street-light and industrial distribution projects.
Its key working advantage lies in a multi-voltage product family covering 280 V, 440 V, 500 V and 660 V systems with discharge current ratings of 5 kA and 10 kA, wider coverage than a conventional single-model LVA-440B reference. The arrester adopts high-grade zinc-oxide (ZnO) varistor discs, UV-stabilized polymer housing and an integrated connecting wire (+WB) for straightforward grounding.
Under normal system voltage the ZnO elements present near-infinite resistance; when a surge occurs they transition within nanoseconds to a low-resistance state, diverting surge current to ground and clamping voltage to a safe level, then automatically reset without any follow current or manual intervention. Unlike older spark-gap or silicon-carbide arresters, the ZnO varistor design eliminates follow-current problems and requires no maintenance over a service life of 20 years or more under typical operating conditions.
Produced under strict in-house material control, critical raw-material batches including ZnO varistor discs, polymer housing granules and metal terminal components are inspected before mass production. Raw-material composition verification avoids unstable clamping performance or premature housing cracking caused by unqualified mixed-batch raw materials.
It delivers stable residual-voltage clamping and decent anti-oxidation performance for long-term outdoor exposure, resisting atmospheric oxidation, UV radiation and normal temperature fluctuations in open-air conditions. When installed correctly following the installation manual, installers achieve rigid, consistent overvoltage protection without complex pre-processing operations. The whole installation process can be completed with basic hand-operated tools, ideal for rapid field assembly, especially for pole-mount retrofitting and maintenance work.
As an upgraded functional alternative to LVA-440B, it fully covers the LVA-440B 440 V / 5 kA application scope, meanwhile adds broader voltage-level options (280 V, 500 V, 660 V) and a dedicated ground-wire variant (+GW) for installations requiring separate earthing conductors.
Nevertheless, users should be aware of its application limits: when tender documents explicitly specify the original LVA-440B part number, SA-0.44kV/5kA+WB cannot be used as a direct drop-in replacement due to commercial tender constraints. This product fills the market demand for high-quality surge-arrester equivalent hardware for grid-renovation projects mixing old overhead lines and new LV-ABC cables, helping distributors and EPC contractors optimise spare-part inventory while maintaining required electrical safety standards.
LV metal-oxide surge arrester SA-0.44kV/5kA+WB for overhead and panel protection is manufactured and Research and Design (R&D) by Jera Line. The surge arrester consists of the following main parts:

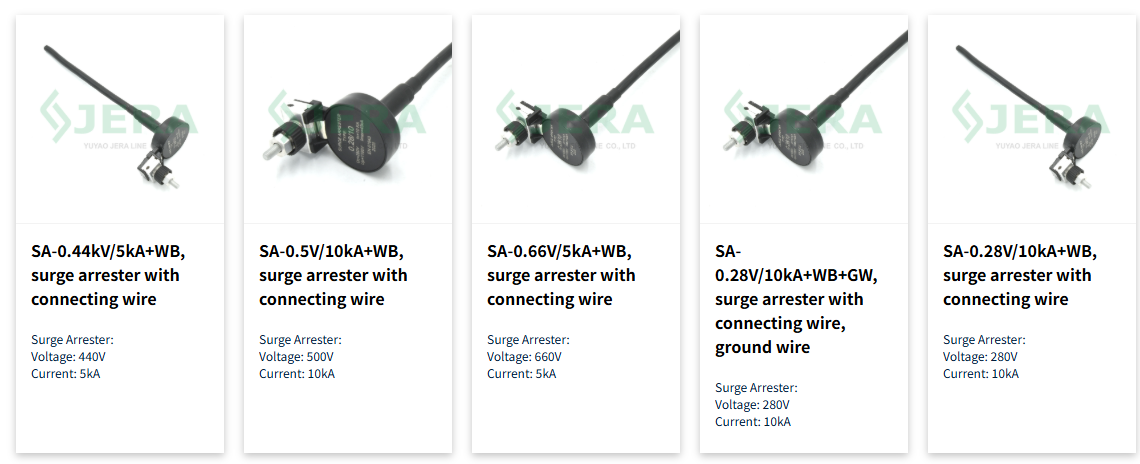

Beyond the 440 V / 5 kA LVA-440B equivalent model, Jera Line manufactures a complete low-voltage surge-arrester family covering SA-0.28V/10kA+WB (280 V, 10 kA), SA-0.28V/10kA+WB+GW (280 V, 10 kA with dedicated ground wire), SA-0.5V/10kA+WB (500 V, 10 kA) and SA-0.66V/5kA+WB (660 V, 5 kA), allowing customers to source all voltage-level protection requirements from a single manufacturer with consistent quality and mounting design.

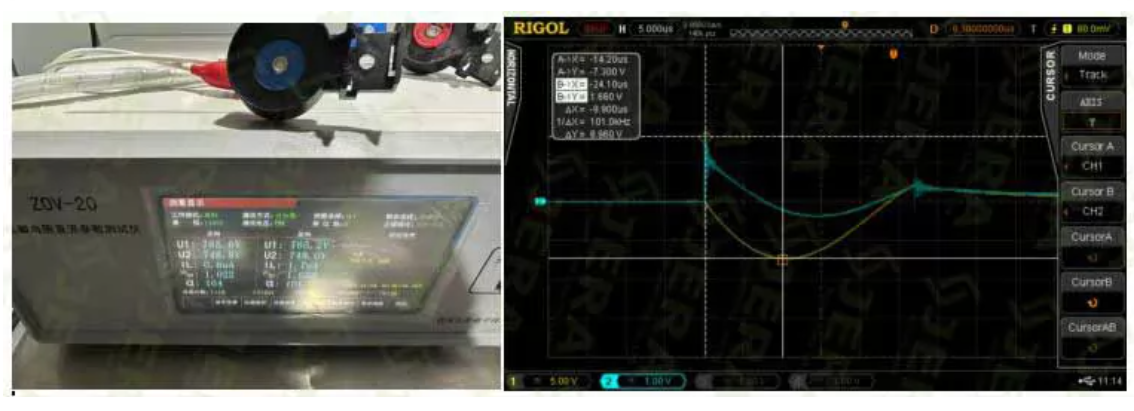

Overhead low-voltage metal-oxide surge arrester SA-0.44kV/5kA+WB has passed regular routine test by Jera Line factory laboratory according to IEC 61643-11:2010 (clause 8.3.4.) standard. The test scopes are as follows:
Jera Line SA-0.44kV/5kA+WB is designed for wide-range overvoltage protection tasks where stable clamping performance and outdoor anti-ageing durability are essential. Its expanded voltage-range capability makes it suitable for multiple installation environments:
Selecting reliable metal-oxide surge arresters is essential to secure stable overvoltage protection and long service life for overhead power-distribution, municipal, industrial and telecommunication projects. As one of the most commonly-used protection devices on-site, surge arresters bear continuous lightning impulses, switching transients, temperature cycling, atmospheric oxidation and environmental erosion throughout its service cycle.
Inferior-quality surge arrester products may suffer unstable clamping voltage, ZnO disc degradation or premature housing cracking under outdoor exposure and cause hidden project risks such as power-supply failure, equipment burnout and network breakdown. Such failures will trigger unnecessary maintenance costs, unplanned power outages and even potential safety hazards for public utility networks.
Therefore, contractors and distributors should not only focus on upfront purchase cost, but also pay close attention to raw-material composition, full-standard test data and real-world outdoor performance when choosing LVA-440B equivalent products. A surge arrester that fails silently under stress provides a false sense of security, leaving downstream transformers, switchgear and sensitive electronics fully exposed to the next overvoltage event.
Jera Line SA-0.44kV/5kA+WB, as a qualified LVA-440B functional equivalent, provides certified, high-strength metal-oxide surge-protection hardware matching global utility-market requirements. Strict raw-material inspection and batch-by-batch lab testing according to IEC 61643-11:2010 (clause 8.3.4.) guarantee stable electrical performance and anti-ageing capability for long-term field deployment.
Together with matching earthing accessories and installation hand tools, it forms a complete, easy-deploy protection solution for overhead-line and outdoor-construction scenarios. This all-in-one hardware kit helps installers cut down preparation work on-site, shorten installation hours and lower overall project labour costs.
For different tender constraints and site-system-voltage conditions, our technical team can also offer professional suggestions on model selection, reminding customers that SA-0.44kV/5kA+WB cannot replace original LVA-440B when tender documents lock the original part number.
Whether you require product datasheets, pre-order samples, technical parameter confirmation or formal project quotation, please feel free to contact Jera Line. We support sample evaluation, bulk-order delivery as well as customized OEM packaging to satisfy diverse tender and project demands. We look forward to building stable long-term win-win business cooperation with global partners across power, telecom and new-energy industries.
